Overview

Essential details

• Model Number:

• PSE-YC35

• Type:

• Photoelectric Sensor

• Place of Origin:

• Shanghai, China

• Brand Name:

• Lanbao

• Usage:

• Positioning

• Output:

• NPN PNP NO/NC

• Description:

• photoelectric sensor

• Sensing distance:

• 35cm

• Setting:

• 5-turn knob adjustable

• Light source:

• red light

• Spot diameter:

• 10mm@35cm

• Output ways:

• NPN NO/NC or PNP NO/NC

• Voltage drop:

• ≤1V

• Load current:

• ≤200mA

• Current consumption:

• ≤25mA

• Housing material:

• Housing: PC+ABS; Filter: PMMA

• Certificate:

• CE

Supply Ability

• Supply Ability

• 5000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

Package: 100pcs/CTN,
Gross weight: 9kgs/CTN,
Volume: 0.01CBM/CTN.

• Port

Shanghai

• Picture Example:

•

• Lead time:

• Quantity(pieces)	1 - 100	101 - 1000	1001 - 10000	>10000
  Lead time (days)	7	15	30	To be negotiated

Video Description

00:00

00:45

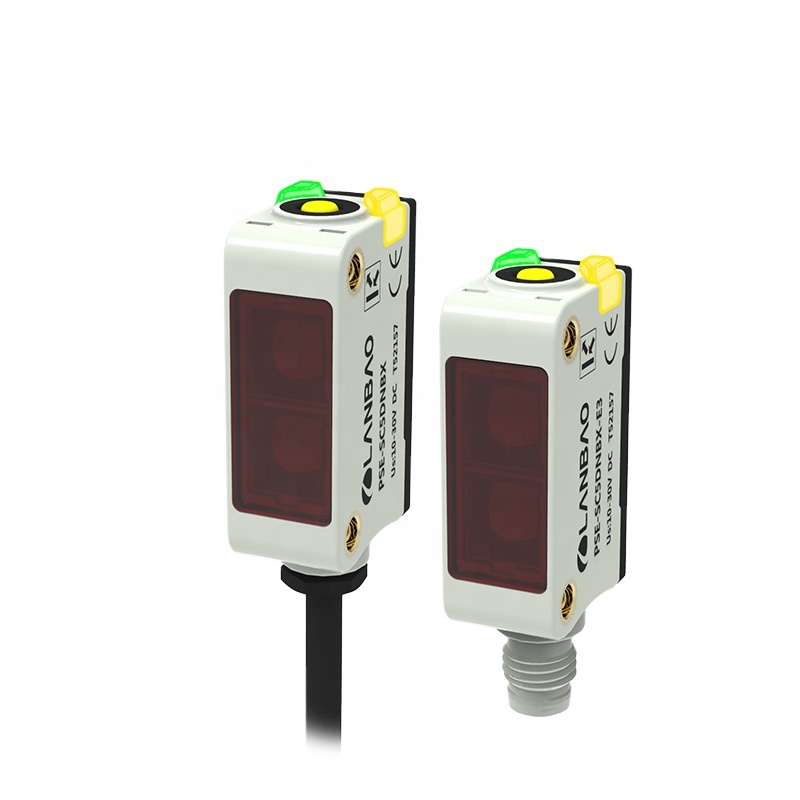

PSE square shape background suppression reflection smart photoelectric sensor red light sensing distance 35cm

Product Features
♦Universal housing, an ideal replacement for a wide range of sensor types:
♦IP67, suitable for harsh environments;
♦Background suppression type, stable detection of both white and black targets;
♦Visible light spots for easy installation and commissioning.

Product Paramenters

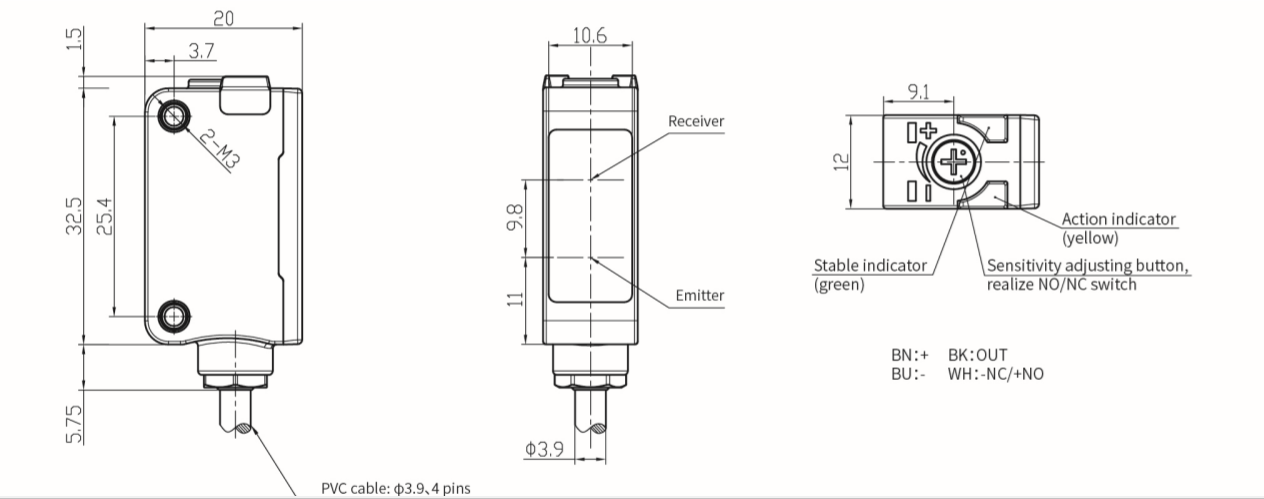

Dimension

Wiring diagram
