Relay Output Infrared Square Shape Through Beam 60m Proximity Photoelectric Sensor

Price ￥40.57
Comments 0
Hits 261
Quantity
+-
stock999Piece
Detail

Overview

Essential details

  • Model Number:

  • PTE-TM

  • Type:

  • Photoelectric Sensor

  • Place of Origin:

  • Shanghai, China

  • Brand Name:

  • Lanbao

  • Usage:

  • Positioning

  • Output:

  • NPN PNP, Digital Sensor

  • Description:

  • Proximity Photoelectric Sensor

  • Theory:

  • Optical sensor

  • Sensing distance:

  • 60m

  • Setting:

  • Potentiometer

  • Light source:

  • Infrared LED (850nm)

  • Output ways:

  • Relay

  • Current consumption:

  • ≤35mA

  • Response time:

  • <10ms

  • Housing material:

  • PC/ABS

  • Protection degree:

  • IP67

Supply Ability

  • Supply Ability

  • 5000 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • Package: 100pcs/CTN,
    Gross weight: 9kgs/CTN,
    Volume: 0.01CBM/CTN.

  • Port

    • Shanghai

  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(pieces)1 - 1000>1000
    Lead time (days)21To be negotiated

Video Description

00:00

00:30

Relay Output Infrared Square Shape Through Beam 60m Proximity Photoelectric Sensor

Product Features
* Through beam reflection working principle;
* Excellent anti-interference performance
* High detection accuracy

Product Paramenters


Emitter

Receiver

Emitter

Receiver

Relay output

PTE-TM60S

PTE-TM60SK

PTE-TM60S-E2

PTE-TM60SK-E5

NPN+PNP NO/NC

PTE-TM60D

PTE-TM60DFB

PTE-TM60DFB

PTE-TM60DFB-E2

Output

Relay output

NPN+PNP NO/NC

Detection type

Through beam

Rated distance(Sn)

60m (Emitter adjustable)

Light source

Infrared LED (850nm)

Standard target

>φ15mm opaque object

Dimensions

50 mm *50 mm *18 mm

Supply voltage

24…240 VAC/DC

10...30 VDC

Target

...

Hysteresis range [%/Sr]

...

Repeat accuracy [R]

≤5%

Load current

≤3A(Receiver)

 ≤200mA (receiver

Residual voltage

...

 ≤2.5V (receiver)

Consumption current

≤35mA

 ≤40mA

Circuit protection

Short-circuit and reverse polarity

Response time

<10ms

 ＜2ms

Output indicator

Emitter: Green LED Receiver: Yellow LED

Ambient temperature

-25℃…+55℃

Ambient humidity

35-85%RH (non-condensing)

Voltage withstand

2000V/AC 50/60Hz 60s

 1000V/AC 50/60Hz 60s

Insulation resistance

≥50MΩ(500VDC)

Insulation resistance

10…50Hz (0.5mm)

Degree of protection

IP67

Housing material

PC/ABS

Connection type

2m PVC cable                        M12 connector(4pins)

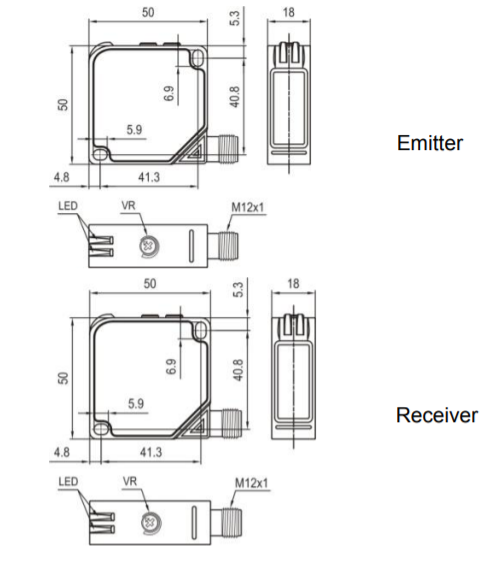

Dimension
