Home > > Overview Essential details Model Number: PTE-TM Type: Photoelectric Sensor Place of Origin: Shanghai

Overview Essential details Model Number: PTE-TM Type: Photoelectric Sensor Place of Origin: Shanghai

Price ￥36.60
Comments 0
Hits 258
Quantity
+-
stock999Piece
Detail

Overview

Essential details

  • Model Number:

  • PSR-TM20Dxx

  • Type:

  • Photoelectric Sensor, Through beam

  • Place of Origin:

  • Shanghai, China

  • Brand Name:

  • LANBAO

  • Usage:

  • positioning

  • Theory:

  • through beam

  • Output:

  • NPN/PNP

  • Description:

  • photoelectric sensor

  • Detection distance:

  • 0.3...20m

  • Supply voltage:

  • 10...30VDC

  • Load current:

  • 200mA

  • Light source:

  • Infrared LED (850nm)

  • Protection degree:

  • IP67

  • Housing material:

  • ABS

  • Installation:

  • Composite installation

  • Weight:

  • 52g

  • Connection type:

  • 2m PVC cable

Supply Ability

  • Supply Ability

  • 10000 Piece/Pieces per Week

Packaging & delivery

  • Packaging Details

    • LANBAO Composite Plastic Through Beam Photoelectric Optical Proximity Sensor
    standard packaging

  • Port

    • shanghai shenzhen ningbo guangzhou

  • Lead time:

  • Quantity(pieces)1 - 1000>1000
    Lead time (days)15To be negotiated

Video Description

00:00

02:27

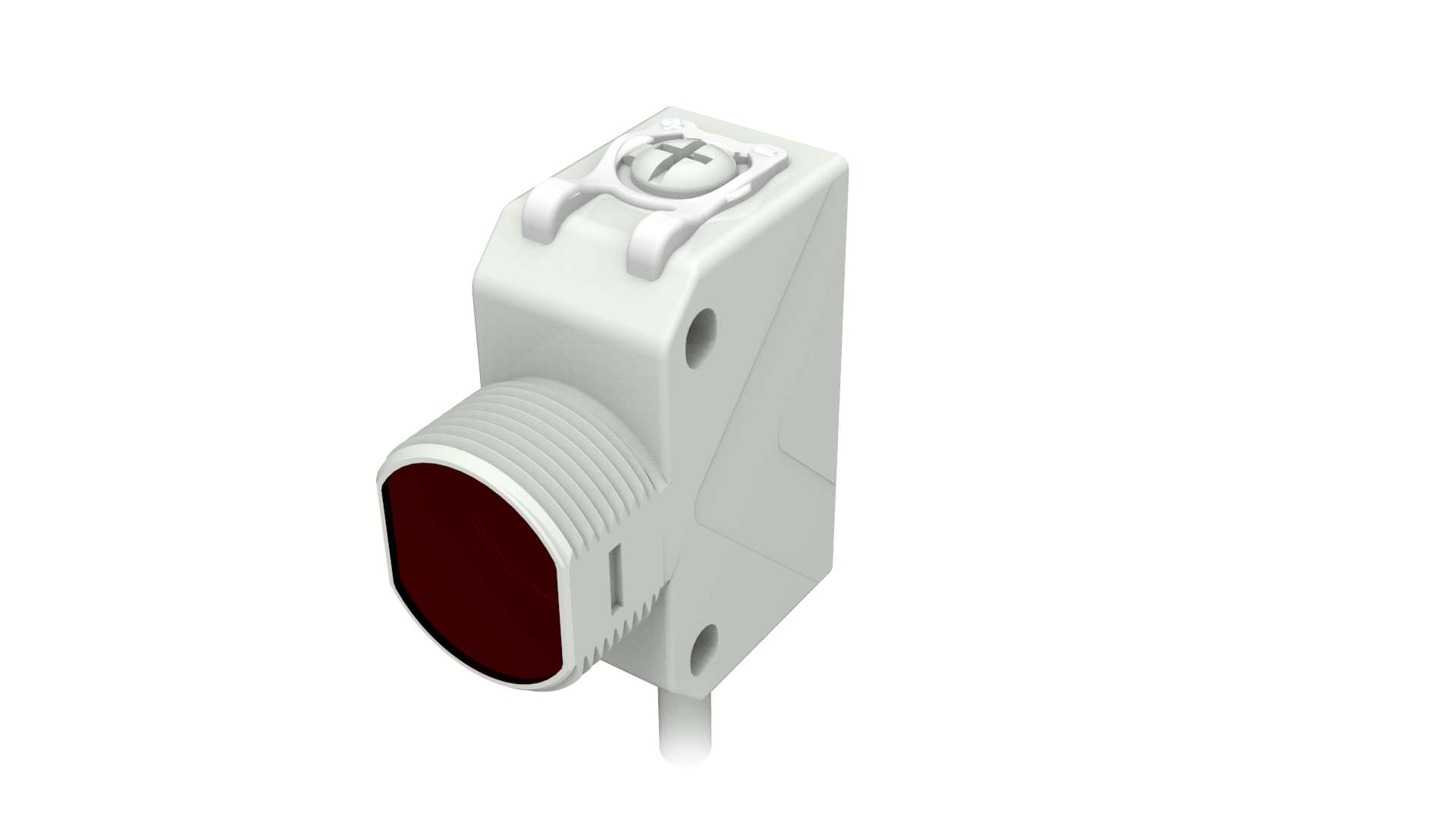

LANBAO Composite Plastic Through Beam Photoelectric Optical Proximity Sensor

♦Diffuse reflection working principle
♦Excellent anti-interference performance
♦High detection accuracy

Product Paramenters

Part number


Emitter

Receiver


NPN

PSR-TM20D

PSR-TM20DNB


PNP

PSR-TM20D

PSR-TM20DPB


Technical specifications

Detection type

Through beam

Ambient temperature

−15...60 ºC

Rated distance

0.3...20m

Ambient humidity

35-95%RH(non-condensing)

Supply voltage

10...30VDC

Anti-ambient light

Anti-ambient light interference≥10,000Lx;

Consumption current

<15mA(Emitter),≤18mA(Receiver)


Incandescent light interference≥3,000lux

Load current

≤200mA

Voltage withstand

1000V/AC 50/60Hz 60s

Light source

Infrared LED(850nm)

Connection type

2m PVC cable

Standard target

>Φ15mm opaque object

Protection degree

IP67

Protection circuit

Short-circuit, overload, reverse polarity and zener protection

Certification

CE

Indicator display

Green light: power indication, stable indication(blinking means unstable signal)

Housing material

ABS


Yellow light:output indication, short circuit or overload indication(flashing)

Optical components

Plastic PMMA

Direction angle

>4°

Weight

52g

Distance adjustment

Single-turn potentiometer

NO/NC
adjustment

NO: white line is connected to the positive electrode


NC: white line is connected to the negative electrode

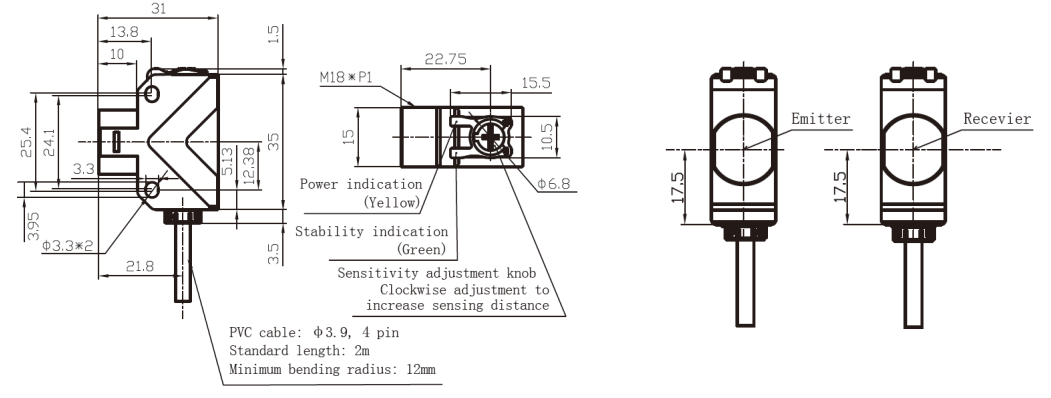

Dimension

Wiring diagram
