Overview

Essential details

• Model Number:

• CE53

• Type:

• Capacitive Proximity Sensor

• Place of Origin:

• Shanghai, China

• Brand Name:

• LANBAO

• Usage:

• Positioning, Position Sensor

• Output:

• NPN PNP, Digital Sensor

• Description:

• Capacitive sensor

• Sensing distance:

• 8mm

• Output ways:

• NPN NO,NPN NC,PNP NO,PNP NC

• Load current:

• ≤200mA

• Current consumption:

• ≤100mA

• Frequency:

• 60Hz

• Material:

• Amplifier: PBT; Sensor probe: PA66+Tef+SS

• Theory:

• Capacitance Sensor

• Application:

• Industrial Automation

Supply Ability

• Supply Ability

• 5000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

Package: 100pcs/CTN,
Gross weight: 9kgs/CTN,
Volume: 0.01CBM/CTN.

• Port

shanghai hangzhou shenzhen guangzhou ningbo

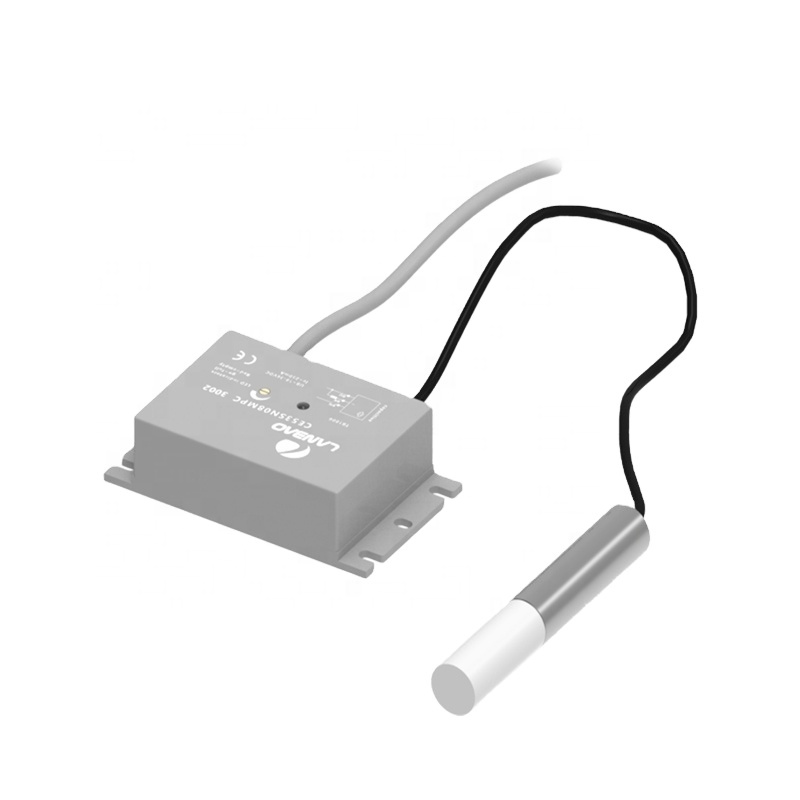

• Picture Example:

•

• Lead time:

• Quantity(pieces)	1 - 100	101 - 1000	1001 - 10000	>10000
  Lead time (days)	7	15	30	To be negotiated

Video Description

00:00

00:29

Ce53 Series Npn Pnp Proximity Capacitive Sensor For High Temperature Material Detection In Hot-melt Industry

Product Features
* Special material, separated construction design;
* Clear indication, sensitivity adjustable;
* Widely applied in high temperature condition field;

Product Paramenters

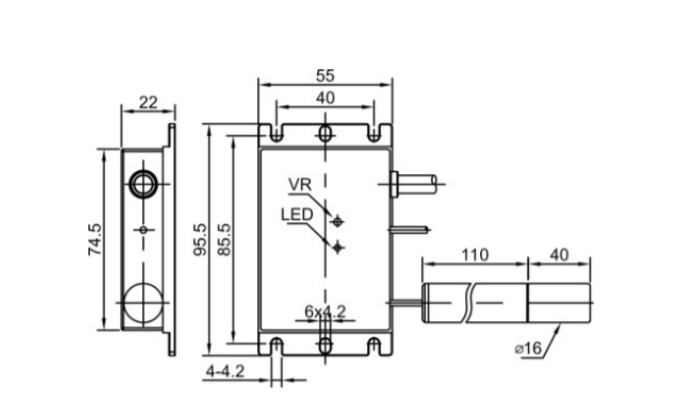

Dimension
