Home > > Lanbao M12 Metal Extended Distance Inductive Proximity Sensor With 2m Cable

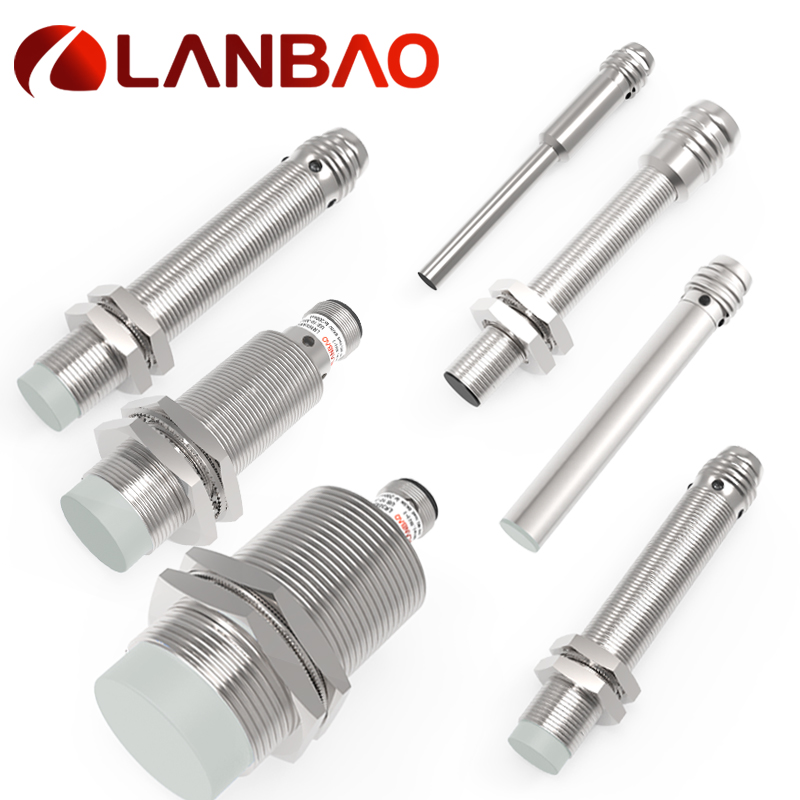

Lanbao M12 Metal Extended Distance Inductive Proximity Sensor With 2m Cable

Price ￥18.20
Comments 0
Hits 262
Quantity
+-
stock999Piece
Detail

Overview

Essential details

  • Model Number:

  • LR04X-Y LR05X-Y LR6.5X-Y LR12X-Y LR12X-Y LR18X-Y

  • Type:

  • Inductive Proximity Sensor

  • Place of Origin:

  • Shanghai, China

  • Brand Name:

  • LANBAO

  • Usage:

  • positioning

  • Theory:

  • self-induction

  • Output:

  • NPN/PNP

  • Description:

  • Inductive Proximity Sensor

  • Function:

  • Extended sensing distance

  • Mounting:

  • Non-flush or Flush

  • Assured distance:

  • 0...6.4mm

  • Standard target:

  • Fe 24*24*1t

  • Connection:

  • 2m PVC Cable

  • Supply voltage:

  • 10-30VDC

  • Switching frequency:

  • 500Hz

  • Protection degree:

  • IP 67

  • Certification:

  • CE+UL

Supply Ability

  • Supply Ability

  • 10000 Piece/Pieces per Week

Packaging & delivery

  • Packaging Details

    • LANBAO M12 metal Extended Distance Inductive Proximity Sensor with 2m Cable
    standard cartons

  • Port

    • shanghai guangzhou ningbo shenzhen

  • Lead time:

  • Quantity(pieces)1 - 1000>1000
    Lead time (days)15To be negotiated

Video Description

00:00

00:36

Lanbao M12 metal Extended Distance Inductive Proximity Sensor With 2m Cable

Product Features
♦Extended sensing distance
♦ASIC design, safe and reliable
♦Perfect choice for metallic targets detection

Product Paramenters

Extended sensing distance

Shell code

LR12X

LR18X

LR04Q

LR05

LR6.5Q

Dimensions(mm)

M 12*1*61, M12*l*65 M 12*1*73, M12*l*77

M18*l*61.5f M18*l*69.5 M18*l*73f M18*l*81

04*30, 04*54

M5*0.5*30fM5*0.5*40

06.5*40, 06.5*43 06.5*49, 06.5*52

Mounting

• Flush, O Non-flush

• Flush, O Non-flush

• Quasi-flush

• Quasi-flush

• Quasi-flush O Non-flush

Sensing distance

2mm, 4mm

5mm, 8mm

1.5mm

1.5mm

2mm, 4mm

DC 3 Wires

NPN NO； NPN NC PNPNO;PNPNC

NPN NO； NPN NC PNP NO; PNP NC

NPN NO; NPN NC PNP NO; PNP NC

NPN NO; NPN NC PNP NO; PNP NC

NPN NO; NPN NC PNP NO; PNP NC

Output DC 4 Wires

/

/

/

/

NO NC

DC 2 Wires

/

/

/

/

/

AC 2 Wires

/

/

/

/

/

Supply voltage

10...30 VDC

10...30 VDC

10...30 VDC

10...30 VDC

10...30 VDC

Frequency

4000Hz, 3000Hz

2000Hz, 1500Hz

1200Hz

1200Hz

DC3/4:1500Hz, 1000Hz DC2: 1500Hz, 1000Hz

Ambient temperature

-25°C...70°C

-25°C..70°C

-25°C...70°C

-25°C...70°C

-25°C...70°C

Protection degree

IP67

IP67

IP67

IP67

IP67

Housing material

Nickel-copper Alloy

Nickel-copper Alloy

Stainless steel

Stainless steel

Stainless steel

Connection

Cable, M12 Connector

Cable, M12 Connector

Cable, M8 Connector

Cable, M8 Connector

Cable M12/M8 Connector

Certification

C€ ®

C€ ®

C€

C€

C€
