Digital Pressure Gauge Features:

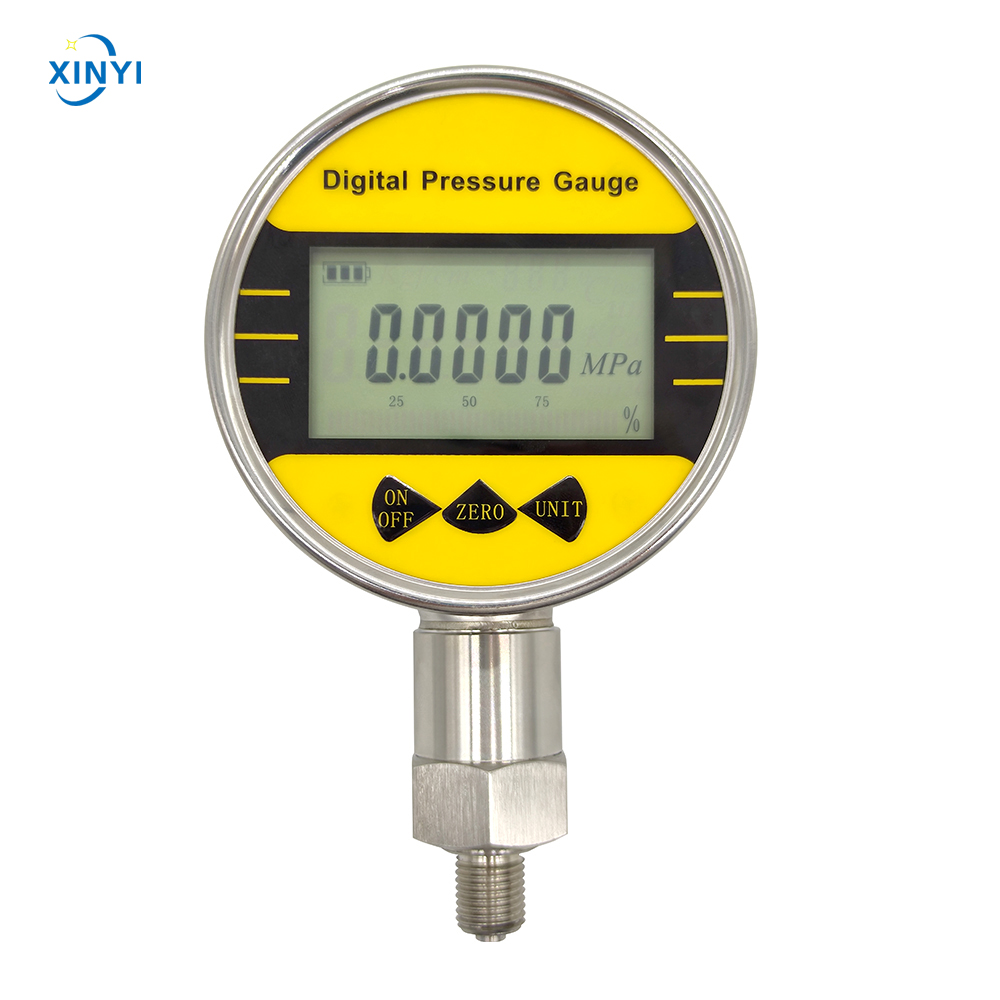

YW-100 Digital Pressure Gauge is mainly composed of shell, pressure sensor and signal processing circuit system. It adopts high-quality pressure sensor core, which has the advantages of high precision, corrosion resistance, shock resistance, vibration resistance, small temperature drift and good stability; Use a low-power microprocessor. According to the pressure characteristics, it can be divided into: gauge pressure, differential pressure and absolute pressure; according to the pressure range, it can be divided into: micro pressure, low pressure, medium pressure, high pressure. According to the temperature, it can be divided into: normal temperature, medium temperature, high temperature. Mainly used in the precision measurement of petroleum, chemical, aviation and various industrial gases and liquids.

Technical Parameters

●Measuring range: -0.1～0～60MPa●Accuracy class: class 0.2 class 0.25 class 0.4 class 0.5●Display mode: up to 6 digits dynamic display●Overload pressure: 1.5 times●Power supply: 2 AA batteries●Medium temperature: -20～80 ℃●Working environment temperature: -10～60℃;●Working environment humidity: ≤80%RH;●Standard thread interface: M20*1.5 (Other threads can be customized)
