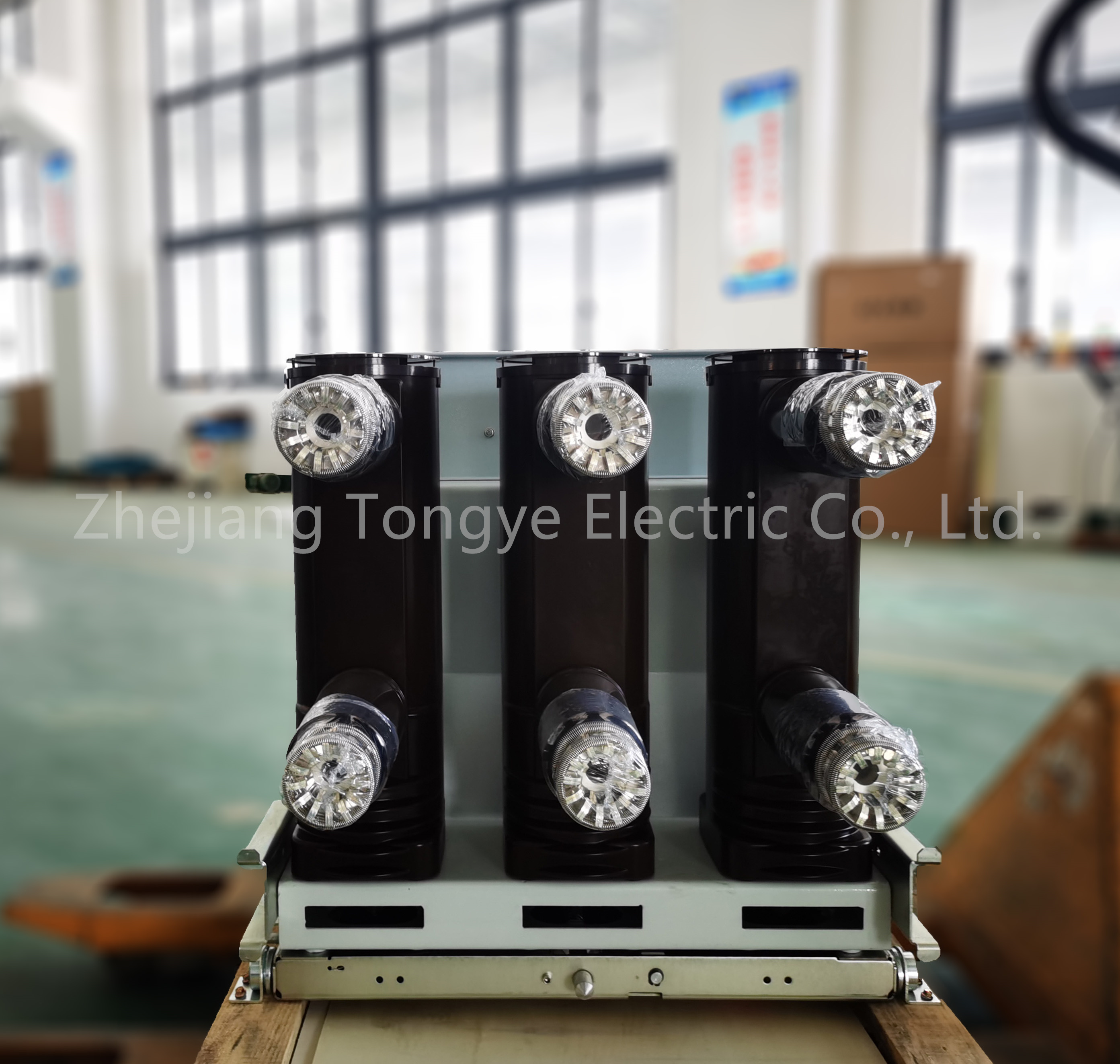

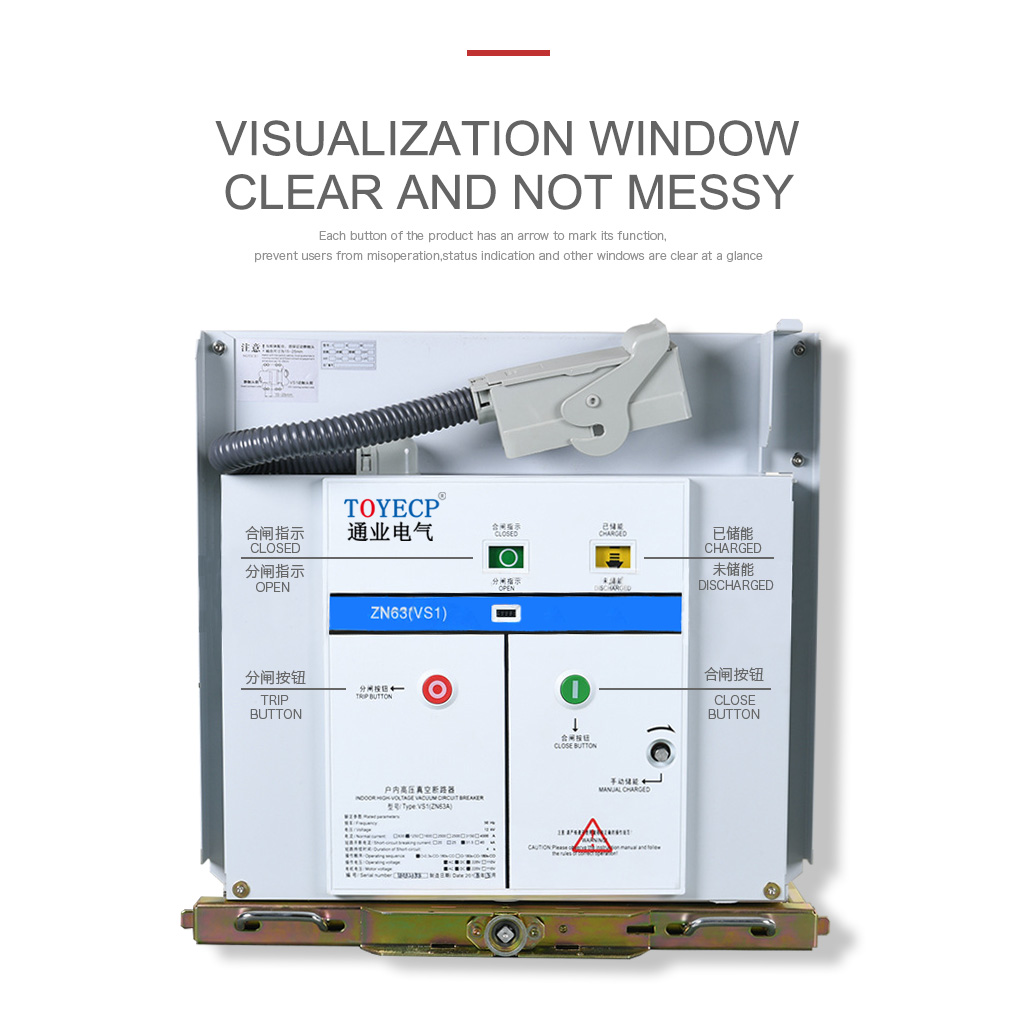

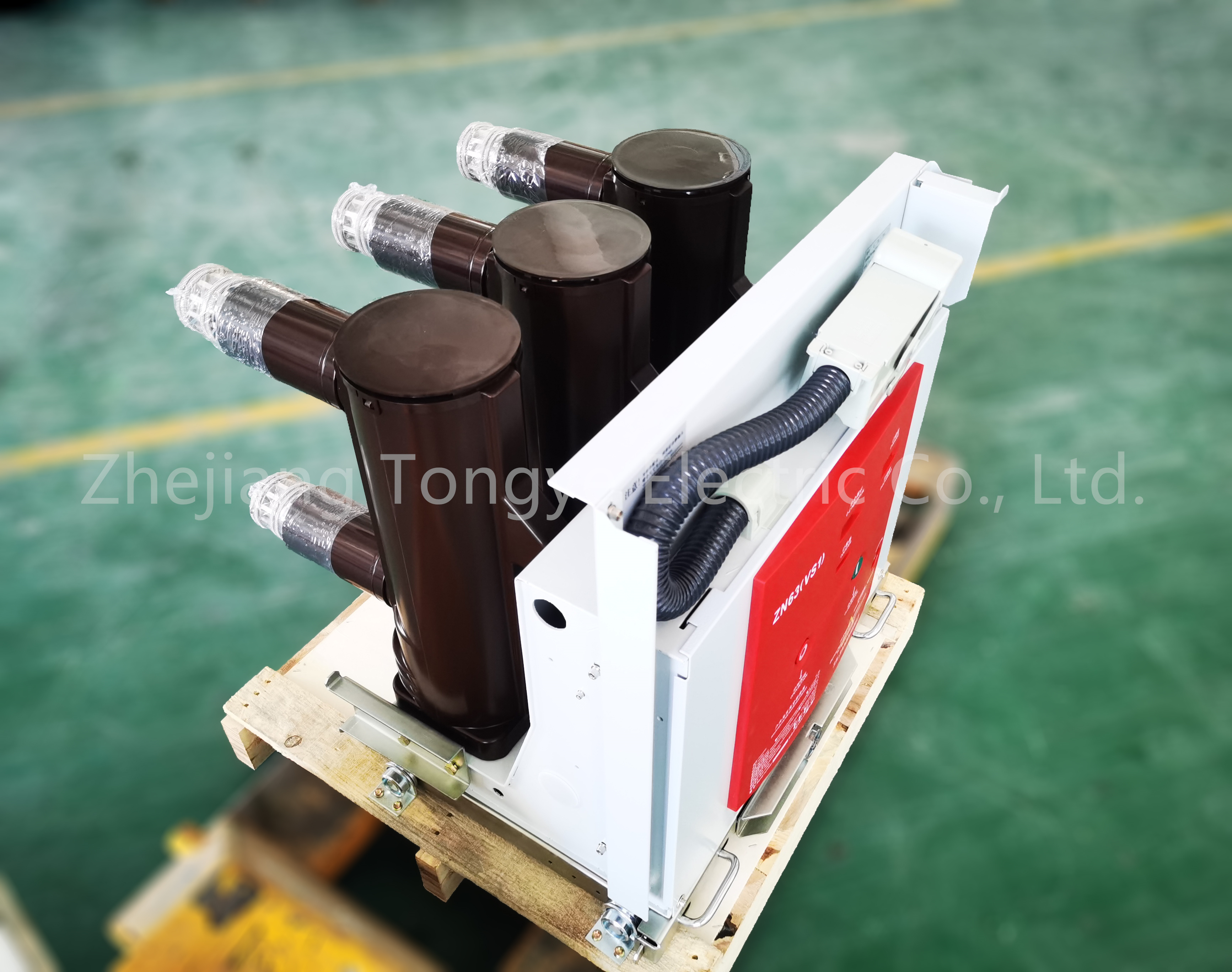

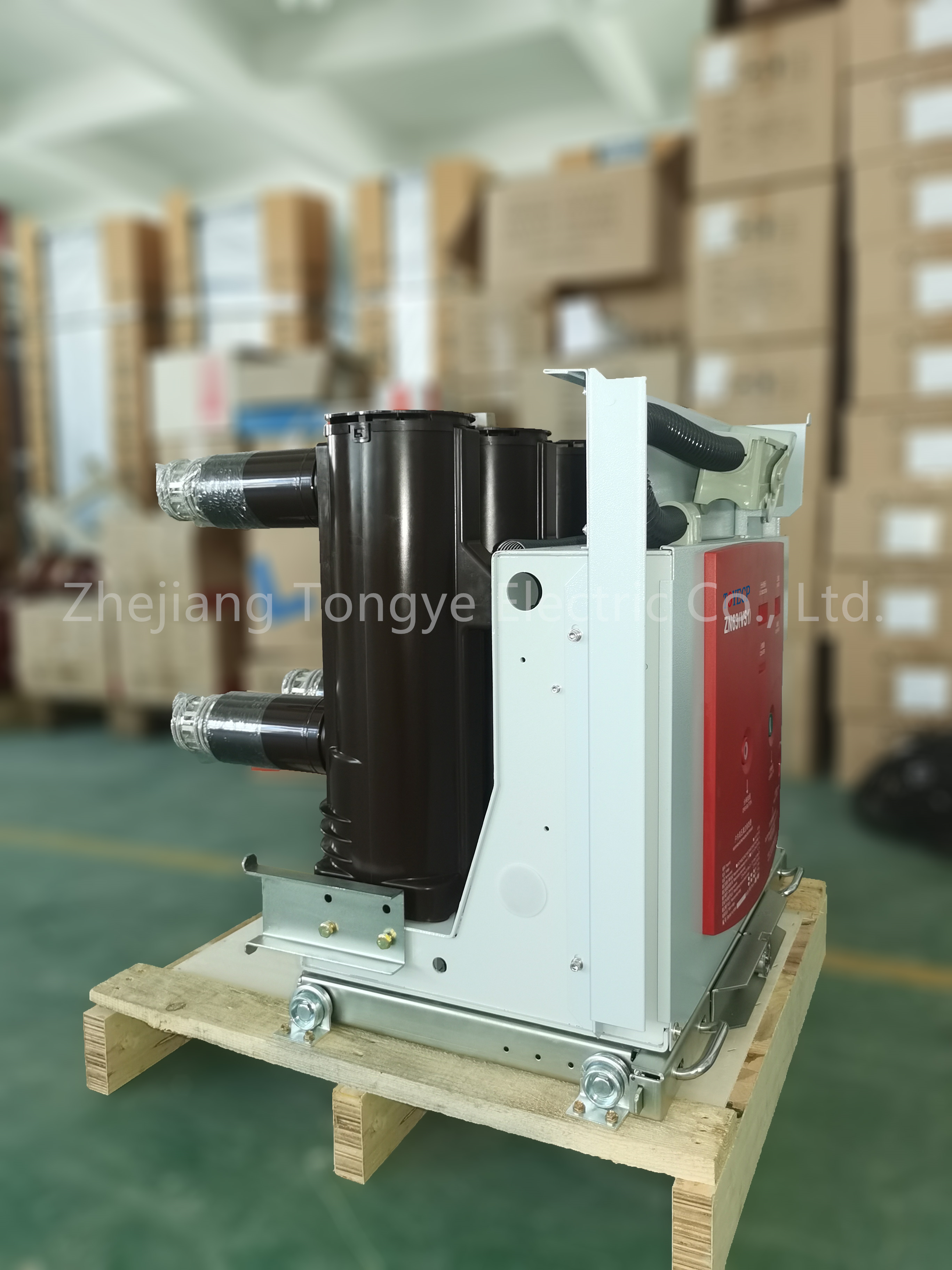

ZN63(VS1)-12KV 630A 1250A High /Medium-voltage indoor vacuum circuit breaker VCB Mechanism for switc

Price	￥703.00
Comments	0
Hits	1240
Quantity	+- stock9999999Piece

Detail

Product Description

ZN63-12 indoor high-voltage vacuum circuit breaker is an indoor switchgear of three-phase AC 50HZ power system with rated voltage of 12kV, which is used as the protection and control unit of power grid equipment and power equipment of industrial and mining enterprises. It is suitable for frequent operation under rated working current or places where short circuit current is broken for many times. The circuit breaker adopts an integrated design of operating mechanism and circuit breaker body, which can be used as a fixed installation unit or equipped with a special propulsion mechanism to form a handcart unit.

1.Ambient air temperature: upper limit+40 ℃, lower limit - 15 ℃;

2.Altitude: ≤ 1000m (if it is necessary to increase the altitude,the rated insulation level shall be increased accordingly)

3.Amplitude: seismic train degree shall not exceed 8 degrees;

4.The daily average value of air relative humidity shall not be greater than 95%, and the monthly average value shall not be greater than 90%
5.in places where there is no fire, danger, serious pollution, chemical corrosion and severe vibration.

Name		Unit	Parameter
Rated voltage		kV	12	12	12	12
Operating current		A	630、1250	630、1250、1600	1250、1600	2000、2500、3150
Rated insulation level	1min power frequency withstand voltage	kV	42	42	42	42
Rated insulation level	Lightning impulse voltage	kV	75	75	75	75
Rated short-circuit breaking current		kA	20	25	31.5	40
Rated short-circuit making current (peak value)		kA	50	63	80	100
Rated (peak) withstand current		kA	50	63	80	100
Rated short-time withstand current		kA	20	25	31.5	40
Rated short-circuit breaking current breaking times		次	50	50	50	30
Rated short circuit duration		s	4
Rated operating sequence			Opening - 0.3 s - closing opening - 180 s - closing opening Opening - 180s - closing opening - 180s - closing opening (40kA)
Mechanical life		次	20000	20000	20000	20000
