Shanghai Kuka Special Cable Co., Ltd.

Overview

Essential details

• Place of Origin:

• Shanghai, China

• Brand Name:

• Kuka

• Model Number:

• EN50618 H1Z2Z2-K / 2 PFG 1169 PV1-F

• Insulation Material:

• XLPO

• Type:

• LOW VOLTAGE

• Application:

• Solar Power Station/Solar power System, indoor and outdoor photovoltaic applications

• Conductor Material:

• Tinned Copper

• Jacket:

• XLPO

• Product name:

• solar cable 6mm2

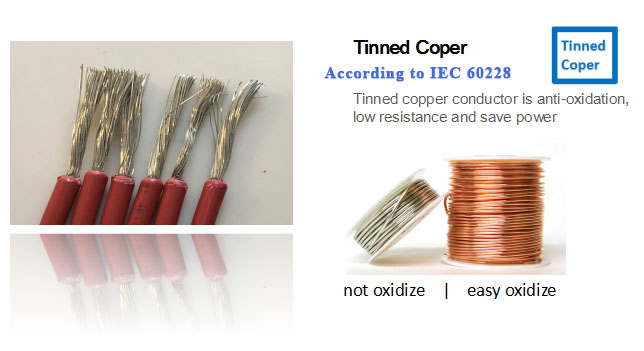

• Conductor material:

• Tinned Copper according to IEC60228

• Rated voltage:

• AC 1000V DC 1500V

• Working temperature:

• -45℃ to + 120℃

• Certificate:

• TUV EN50618/TUV 2PGF 1169

• Warranty years:

• 25 years

• Number of Cores:

• Single / Twin

• Color:

• Black/Red,Optional

• MOQ:

• 500Meters

Supply Ability

• Supply Ability

• 1000000 Meter/Meters per Week solar cable 6mm2

Packaging & delivery

• Packaging Details

100m/200m/300m/500m/Roll, wooden drum or as per requirements.

• Port

ShangHai

• Picture Example:

•



• Lead time:

• Quantity(meters)	1 - 50000	>50000
  Lead time (days)	7	To be negotiated

Video Description

00:00

02:51

Product Desciption

PV1-F 1000v solar cable 6mm2

H1Z2Z2-K  |  PV1-F

Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Our solar cables are designed to be UV resistant and weather resistant. Service life 25 years.
