Overview
Essential details
Place of Origin:
Shanghai, China
Brand Name:
KKC
Model Number:
YJV
Insulation Material:
XLPE
Type:
LOW VOLTAGE
Application:
Industrial, underground
Conductor Material:
Copper
Jacket:
PVC
Rated voltage:
0.6/1KV
Test voltage:
3500V
Sheath Color:
Black or upon requirement
Armour:
Galvanized Steel tape
Core NO.:
1 Core 2 Core 3 Core 4 Core 5 Core
Minimum intallation temperature:
should not be lower 0 deg
Minimum bending radius:
15 x cable OD
Supply Ability
Supply Ability
1000000 Meter/Meters per Week
Packaging & delivery
Packaging Details
100m/200m/300m/500m/Roll, wooden drum or as per requirements.
Port
ShangHai,NingBo,ShenZhen
Picture Example:
Lead time:
Quantity(meters) 1 - 50000 >50000 Lead time (days) 7 To be negotiated
Product Description
Wholesale price YJV / YJV22 /YJLV /YJLV22 /zr yjv 0.6/1KV 3+2 cores CU/AL/XLPE/PVC/SWA Insulated power cable
DESIGN:
1. Conductor:
-Soild Plain Copper 1.5 to 4mm2
-Stranded plain Copper: 1.5 to 500mm2
2.Insulation:
-Cross-linked polyethylene(XLPE)
3.Filler:
-non-hygroscoppic polpropylene(PP) filler
4. Inner Sheath (Bedding) for armoured cable
-Polyvinyl chloride (PVC) Colour: Black
5. Armour:
-Galvanized steel tape for multi core cable
6. Outer Sheath:
-Polyvinyl chloride (PVC) Colour: Black other on request.
Application:
IEC 60502-1 cables are used for electricity supply in low voltage installation system, IEC 60502-1 cables are suitable for
installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Conductor Design

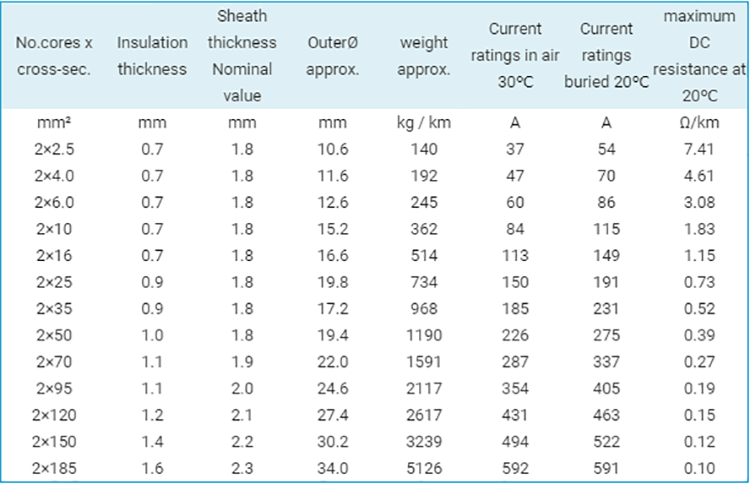

Specification
