Shanghai Kuka Special Cable Co., Ltd.

Cable

Home > Sell > OEM hot sell tuv twin core 4mm2 solar cable drumPopular
OEM hot sell tuv twin core 4mm2 solar cable drumPopular
Hits: 115
Price: 5.00Dolla/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Expiry: Long-term
Update date 2023-02-14 14:33

Detail

Overview

Essential details

  • Place of Origin:

  • Shanghai, China

  • Brand Name:

  • Kuka

  • Model Number:

  • H1Z2Z2-K

  • Insulation Material:

  • Xlpe

  • Type:

  • LOW VOLTAGE

  • Application:

  • Solar Power Station/Solar power System

  • Conductor Material:

  • Tinned Copper

  • Jacket:

  • XLPE

  • Product name:

  • OEM hot sell tuv twin core 4mm2 solar cable drum

  • Color:

  • Black/Blue/Red,Optional

  • Rated voltage:

  • AC 1000V DC 1500V

  • Certificate:

  • TUV EN 50618:2014

  • Warranty years:

  • 25 years

  • Number of Cores:

  • Single / Twin

  • MOQ:

  • 100Meters

  • Working temperature:

  • -40℃ to + 120℃

Supply Ability

  • Supply Ability

  • 1000000 Meter/Meters per Week solar cable

Packaging & delivery

  • Packaging Details

    • 100m/200m/300m/500m/Roll, wooden drum or as per requirements.

  • Port

    • ShangHai,NingBo,ShenZhen

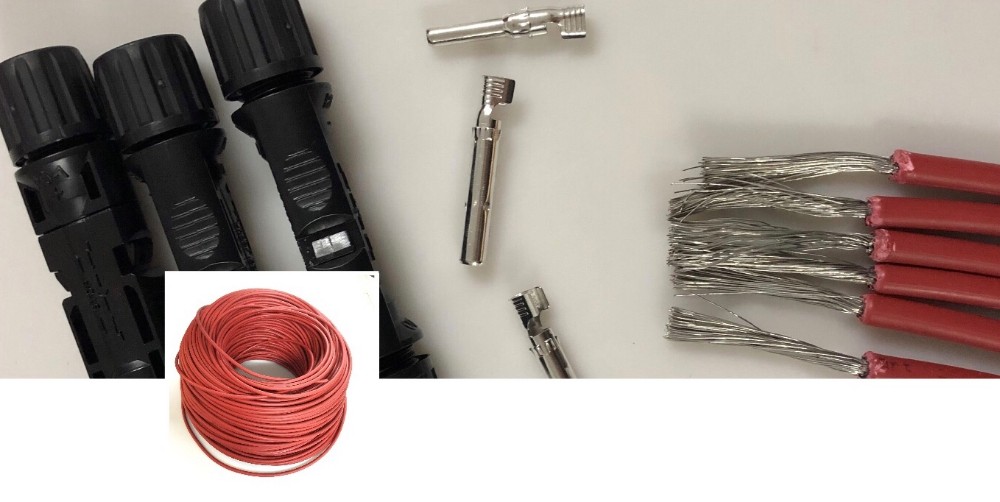

  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(meters)1 - 50000>50000
    Lead time (days)7To be negotiated

Product Desciption

Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside.


Solar Cable


H1Z2Z2-K  |  PV1-F

Conductor: Tinned copper, elecreical property & Structure in accordance with EN60228 Class 5.
Insulation: LSZH electron-beam cross-linked Polyolefin copolymer ROHS material.
Outer sheath: LSZH & UV-resistant electron-beam cross-linked Polyolefin copolymer ROHS material.
Colour: Prior colour black,or as per customer's request.H1Z2Z2-K 35mm2 Dc Solar PV Cable EN50618.

Conductor

Tinned Fine Re Copper Strand, according to VDE0295/IEC60228. Class 5

Insulation

Polyolefin Copolymer electron-beam coss-linked

Sheath Jacket

Polyolefin Copolymer electron-beam coss-linked

Nominal Voltage

Uo/U=1000VAC, 1500VDC

Test Voltage

6500V, 50Hz, 5Min

Temperature Rating

-40°C-120°C ,More than 25 Years (EN 50618)

Fire Performance

IEC 60332-1

Smoke Emission

IEC61034, EN 50286-2

Low Fire Load

DIN 51 900

Certification

EN 50618 Standard

Product parameters

Cross section

(mm2)

Conductor Construction

Outer

(mm)

Resistance

Max.

Current Carring

Capacity

1*1.5

30/0.25

4.90

13.30

30

1*2.5

50/0.25

5.45

7.89

41

1*4

56/0.3

6.10

4.75

50

1*6

84/0.3

7.20

3.39

70

1*10

142/0.3

9.00

1.95

98

1*16

228/0.3

10.20

1.24

132

1*25

361/0.3

12.00

0.795

176

1*35

525/0.3

13.8

0.565

218

1*50

720/0.3

14.8

0.393

280

1*70

988/0.3

16.9

0.277

350

1*95

1349/0.3

18.7

0.21

410

1*120

1691/0.3

20.7

0.164

480

Cross section

(mm2)

Conductor Construction

Outer

(mm)

Resistance

Max.

Current Carring

Capacity

2 x 1.5

30/0.25

8.3 ± 0.2

13.30

30

2 x 2.5

50/0.25

9.2 ± 0.2

7.98

41

2 x 4

56/0.3

12.0 ± 0.2

4.75

50

2 x 6

84/0.3

13.5 ± 0.2

3.39

70

2 x 10

142/0.3

17.6 ± 0.2

1.95

98

2 x 16

228/0.3

19.8 ± 0.2

1.24

132
