Overview
Essential details
Place of Origin:
Henan, China
Brand Name:
Huadong
Model Number:
BS 7870-5 Standard Aerial Bunched Cable
Insulation Material:
PE/PVC/XLPE
Type:
LOW VOLTAGE
Application:
Overhead Aerial and Self Support
Conductor Material:
Aluminium Conductor
Jacket:
PVC/PE/XLPE
Standard:
BS 7870-5 Standard
Certificate:
ISO9001/CCC
Conductor:
AAC/AAAC
MOQ:
1000m
Hot-Sales Size:
AAC AAAC Conductor Type PVC/XLPE Insulted ABC Cable
Sample:
Contact to get free sample
Warranty:
100%quanlified
Price:
Get within 12 hours
Export Country:
Philippine,Yemen,Vietnam, Indonesia,Indonesia,Africa, Europ
Product name:
BS 7870-5 Standard 0.6/1kV 4 Core 35mm ABC Cable
Supply Ability
Supply Ability
100 Kilometer/Kilometers per Month ABC Cable
Packaging & delivery
Packaging Details
BS 7870-5 Standard Low Voltage 3x150 mm2 ABC Cable
The abc cable package is usually wooden drum or steel wooden drum or coil.also according to customer's requirement.
Port
Qingdao Shanghai Guangzhou
Picture Example:
Lead time:
Quantity(meters) 1 - 1000 1001 - 2000 >2000 Lead time (days) 7 15 To be negotiated
BS 7870-5 Standard Low Voltage 3x150 mm2 ABC Cable
Product Description
Standard: BS 7870-5:1999 in connection with IEC 60502-1
Voltage:0.6/1KV
Design
1 Aluminium conductor with increased breaking load, round stranded compressed (RM)
2 Core insulation (XPLE black, UV-resistant, not flame retardant); 2 up to 4 cores of equal cross section are stranded together in left-hand lay, additionally 1 or 2 cores of reduced cross section can be co-stranded.
Application
Can be used for fixed installation as overhead power lines up to 1.000 V incl.
Not suitable for direct burial.
This over-head cable provides reinforced insulation acc. IEC 61140 and fulfill therefore Class II acc. IEC 61140 It is not flame retardant. But this could be if requested change to a flame retardant cable
ABC – Aerial Bundled Cables acc. BS (British Standard) 7870-5
| number of cores x nominal cross section | max. conductor- resistance | min. breaking load of conductor strand | current rating in the air | outer diameter | AL number | total weight |
| mm² | Ohm/km | kN | A | ca. mm | kg/km | ca. kg/km |
| 1x 16 RM | 1,910 | 2,5 | 72 | 8,0 | 55 | 74 |
| 1x 25 RM | 1,200 | 4,0 | 107 | 9,0 | 72 | 106 |
| 1x 35 RM | 0,868 | 5,5 | 132 | 10,5 | 102 | 138 |
| 1x 50 RM | 0,641 | 8,0 | 165 | 11,8 | 145 | 182 |
| 1x 70 RM | 0,443 | 10,7 | 205 | 13,0 | 203 | 252 |
| 1x 95 RM | 0,320 | 13,7 | 240 | 15,4 | 276 | 333 |
| 1x 120 RM | 0,253 | 18,6 | 290 | 17,0 | 348 | 408 |
| 1x 150 RM | 0,206 | 23,2 | 334 | 19,0 | 435 | 502 |
| 1x 185 RM | 0,164 | 28,7 | 389 | 21,0 | 537 | 611 |
| 1x 240 RM | 0,125 | 37,2 | 467 | 24,0 | 696 | 801 |
| 2x 16 RM | 1,910 | 2,5 | 72 | 15,6 | 93 | 147 |
| 2x 25 RM | 1,200 | 4,0 | 107 | 18,0 | 145 | 208 |
| 2x 35 RM | 0,868 | 5,5 | 132 | 20,0 | 203 | 277 |
| 2x 50 RM | 0,641 | 8,0 | 165 | 23,5 | 290 | 361 |
| 2x 70 RM | 0,443 | 10,7 | 205 | 25,4 | 408 | 505 |
| 2x 95 RM | 0,320 | 13,7 | 240 | 30,3 | 551 | 666 |
| 2x 150 RM | 0,206 | 23,2 | 334 | 38,0 | 870 | 1004 |
| 4x 16 RM | 1,910 | 2,5 | 72 | 18,8 | 186 | 286 |
| 4x 25 RM | 1,200 | 4,0 | 107 | 21,2 | 290 | 430 |
| 4x 35 RM | 0,868 | 5,5 | 132 | 24,1 | 406 | 553 |
| 4x 50 RM | 0,641 | 8,0 | 165 | 27,8 | 580 | 746 |
| 4x 70 RM | 0,443 | 10,7 | 205 | 31,8 | 812 | 1.009 |
| 4x 95 RM | 0,320 | 13,7 | 240 | 37,8 | 1.102 | 1.332 |
| 4x 120 RM | 0,253 | 18,6 | 290 | 54,4 | 1.392 | 1.632 |
| 4x 50 + 1x 25 RM | 0,641/1,200 | 8,0/4,0 | 165/107 | 31,9 | 653 | 814 |
| 4x 50 + 1x 35 RM | 0,641/0,868 | 8,5/5,5 | 165/132 | 31,9 | 682 | 845 |
| 4x 70 + 1x 25 RM | 0,443/1,200 | 10,7/4,0 | 205/107 | 36,0 | 885 | 1.105 |
| 4x 70 + 2x 25 RM | 0,443/1,200 | 10,7/4,0 | 205/107 | 40,0 | 956 | 1.217 |
| 4x 95 + 1x 25 RM | 0,320/1,200 | 13,7/4,0 | 240/107 | 41,8 | 1.175 | 1.438 |
| 4x 95 + 2x 25 RM | 0,320/1,200 | 13,7/4,0 | 240/107 | 42,0 | 1.247 | 1.544 |
| 4x120 + 1x 25 RM | 0,253/1,200 | 18,6/4,0 | 290/107 | 59 | 1.464 | 2.05 |
Company Information
Zhengzhou Huadong Cable Co.,Ltd is an import and export trade co,pany in Zhengzhou City, Henan province, China, which is a branch of Henan Huadong Cable Group. Our factory occupied 50000 square meters, and specialize in overhead ABC cable, AAC, ACSR, AAAC, 0.6-35KV power cable, control cables, welding cables, rubber cables, mining cables. We can provide standard cables with GB, IEC, BS, ICEA, ASTM, DIN, VED and JIS srandards. What's more, We can design cables according to your requirement. Now you can send the inquiry, leave your email, then our sales manager will send you quotation as soon as possible.
Production Flow
Our factory has advanced equipment of 20 sets production lines and 25 sets testing machinas, The production capacity is more than 12 million kilometers. We have skillful staff over 20-year experience,before starting working, every worker need to be trained professionally. Therefore, we can promise the product will be 100% quantified.

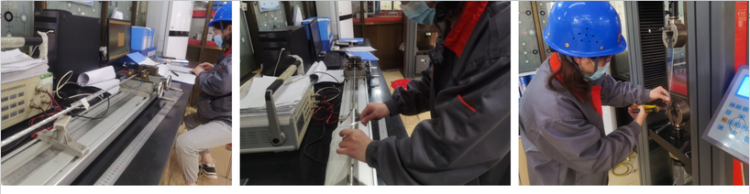

Conductor Testing
