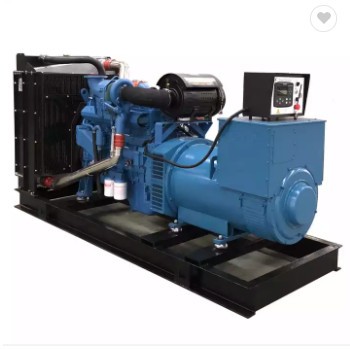

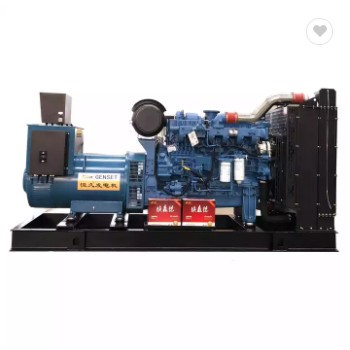

Global Warranty 500kw 625kva Three Phase Emergency Power Plant Diesel Generator With Yuchai Perfect Price High Quality
Diesel Generator Set Data Sheet | ||||
Generator Model | GF500YC | |||
Power | 500kw/625kva | |||
Rated Voltage | 400V | |||
Frequency | 50HZ | |||
Power Factor | 0.8(Lagging) | |||
Dimension(L*W*H) | 3600*1500*2000mm | |||
Weight | 4800kg | |||
Diesel Engine Data Sheet | ||||
Brand | YUCHAI | |||
Model | YC6TD840L-D20 | |||
Number of Cylinder | 6 | |||
Speed | 1500RPM | |||
Cycle | Four Stroke | |||
Cooling Method | Water Cooling | |||
Bore*Stroke | 153*185mm | |||
Speed Governor | Electronic | |||
Power | 616kw | |||
Lubrication oil Capacity | 195L | |||
Fuel Consumption | 195g/kw.h | |||
Starting Method | 24V Electrical Starting | |||
Alternator Data Sheet | ||||
Brand | HENGTONG | |||
Model | HTI-500 | |||
Power | 500kw/625kva | |||
Connecting Type | 3 Phase and 4 Wires | |||
Number of Bearing | Single | |||
Protection Grade | IP23 | |||
Insulation Class | H | |||
Exciter Type | Brushless, Self-excited, AVR Controller | |||
Altitude | ≤1000M | |||
Controller | ||||
Optional Controller Brand | Smartgen/Deepsea/ComAp etc. | |||
