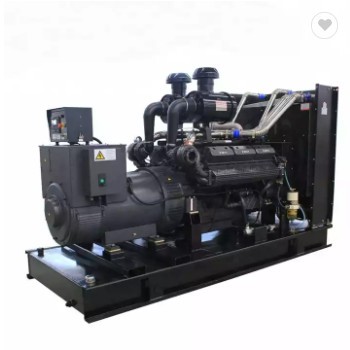

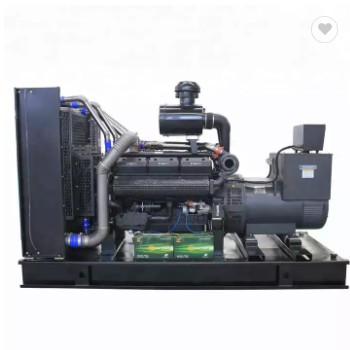

Well Known 400kw 500kva 3 Phase Diesel Power Generator Set With Shanghai For Industries Real Estate Use
Diesel Generator Set Data Sheet | ||||
Generator Model | GF400SC | |||
Power | 400kw/500kva | |||
Rated Voltage | 400V | |||
Frequency | 50HZ | |||
Power Factor | 0.8(Lagging) | |||
Dimension(L*W*H) | 3550*1450*2000mm | |||
Weight | 4400kg | |||
Diesel Engine Data Sheet | ||||
Brand | SHANGCHAI | |||
Model | SC25G690D2 | |||
Number of Cylinder | 12 | |||
Speed | 1500RPM | |||
Cycle | Four Stroke | |||
Cooling Method | Water Cooling | |||
Bore*Stroke | 135*150mm | |||
Speed Governor | Electronic | |||
Power | 505kw | |||
Lubrication oil Capacity | / | |||
Fuel Consumption | ≤202g/kw.h | |||
Starting Method | 24V Electrical Starting | |||
Alternator Data Sheet | ||||
Brand | HengTong | |||
Model | HTI-400 | |||
Power | 400kw/500kva | |||
Connecting Type | 3 Phase and 4 Wires | |||
Number of Bearing | Single | |||
Protection Grade | IP23 | |||
Insulation Class | H | |||
Exciter Type | Brushless, Self-excited, AVR Controller | |||
Altitude | ≤1000M | |||
Controller | ||||
Optional Controller Brand | Smartgen/Deepsea/ComAp etc. | |||
