Home > Sell > 100KW AC Single Phase Power Generator Diesel 125KVA Diesel Generator Price with CE Certificate
100KW AC Single Phase Power Generator Diesel 125KVA Diesel Generator Price with CE Certificate
Hits: 405
Price: 15.00Dolla/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Expiry: Long-term
Update date 2023-03-03 10:16

Detail

Overview

Essential details

  • Warranty:

  • 13 months

  • Certification:

  • CE

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • TONTEKPOWER

  • Model Number:

  • TPD125C5-1

  • Rated Voltage:

  • 400/230V (Can be adjusted)

  • Speed:

  • 1500RMP

  • Frequency:

  • 50HZ

  • Rated Power:

  • 100KW/125KVA

  • Standby Power:

  • 110KW/138KVA

  • Fuel consumption:

  • 22L/h

  • Engine model:

  • 6BTA5.9-G2

  • Engine brand:

  • CUMMINS

  • Bore & Stroke:

  • 102 *120 mm

  • Displacement:

  • 5.9 L

  • Type:

  • In line,6 cylinders,4 stroke

  • Fuel consumption at 100% load:

  • 211 g/kW.h

  • Aspiration:

  • Turbocharged & Aftercooled

Supply Ability

  • Supply Ability

  • 1500 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • PE FILM PACKING
    PACKING: STANDARD SEAWORTHY PACKING

  • Port

    • SHANGHAI

  • Lead time:

  • Quantity(units)1 - 1>1
    Lead time (days)15To be negotiated

Product Description

120kva Diesel Generator Powered by Cummins Engine

Open type diesel generator assembled with engine/alternator/water tank with fan/

controller/breaker/bottom frame/ cushion/

battery charger/free-maintenance batteries/

bellows/flange/muffler/standard miantenance tool ect.

Open type generator also be customized according to customer requirements, add ATS / remote control system, etc.

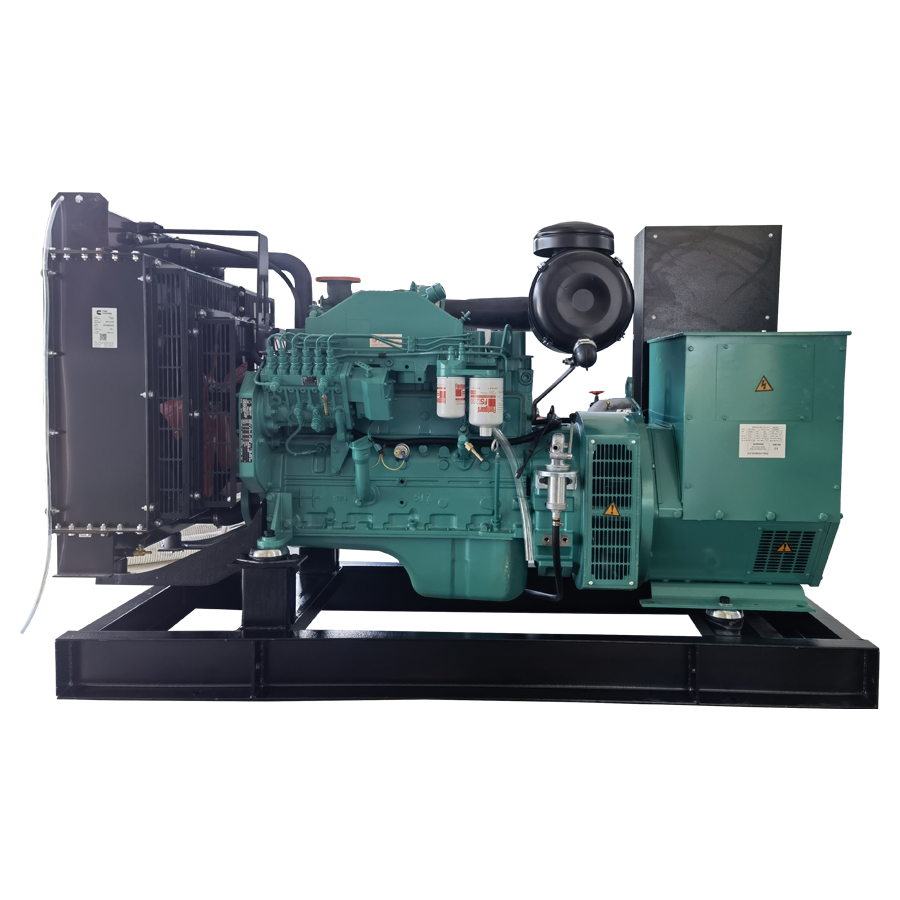

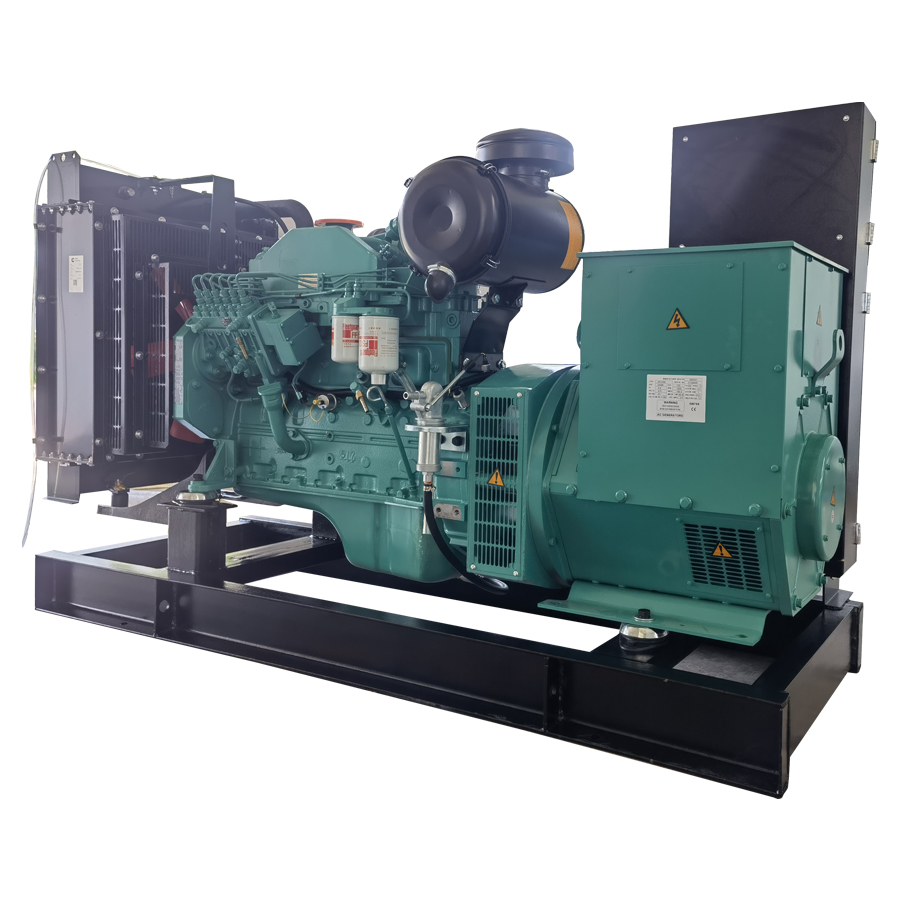

120kva Open frame Diesel Generator


1.Specification of genset


Gensets Model

TPD125C5-1


Rated Power

80KW/100KVA


Rated Voltage(V)

400/230V(Can be adjusted)


Rated frequency(HZ)

50


Rated Speed(RPM)

1500


Power Factor

0.8(lagging)


Genset Weight(kg)

 1250 Kg


2.Specification of diesel engine


Engine brand

CUMMINS


Engine model

6BTA5.9-G2


Rated power

106KW


Type

In line,6 cylinders,4 stroke


Aspiration

Turbocharged & Aftercooled


Bore×Stroke (mm×mm)

102*120


Displacement (Liter)

5.9 L


Compression Ratio

17.3:1


 Governor

Electronic


Cooling System

Water cooled by radiator


3. Specification of alternator


Alternator brand

STAMFORD



Alternator model

UCI 274E


Rated power

94kw


Phase and wire

3 phase 4 wires


Protection Grade

IP23


Insulation Class

H


Details Images

Company Introduction

Our Advantages

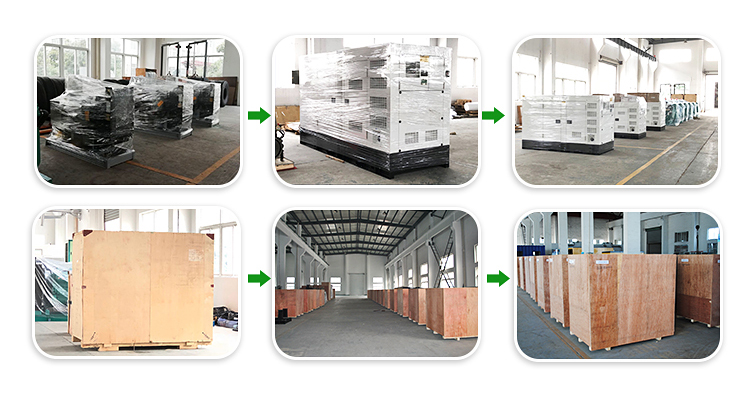

Packing&Shipping
