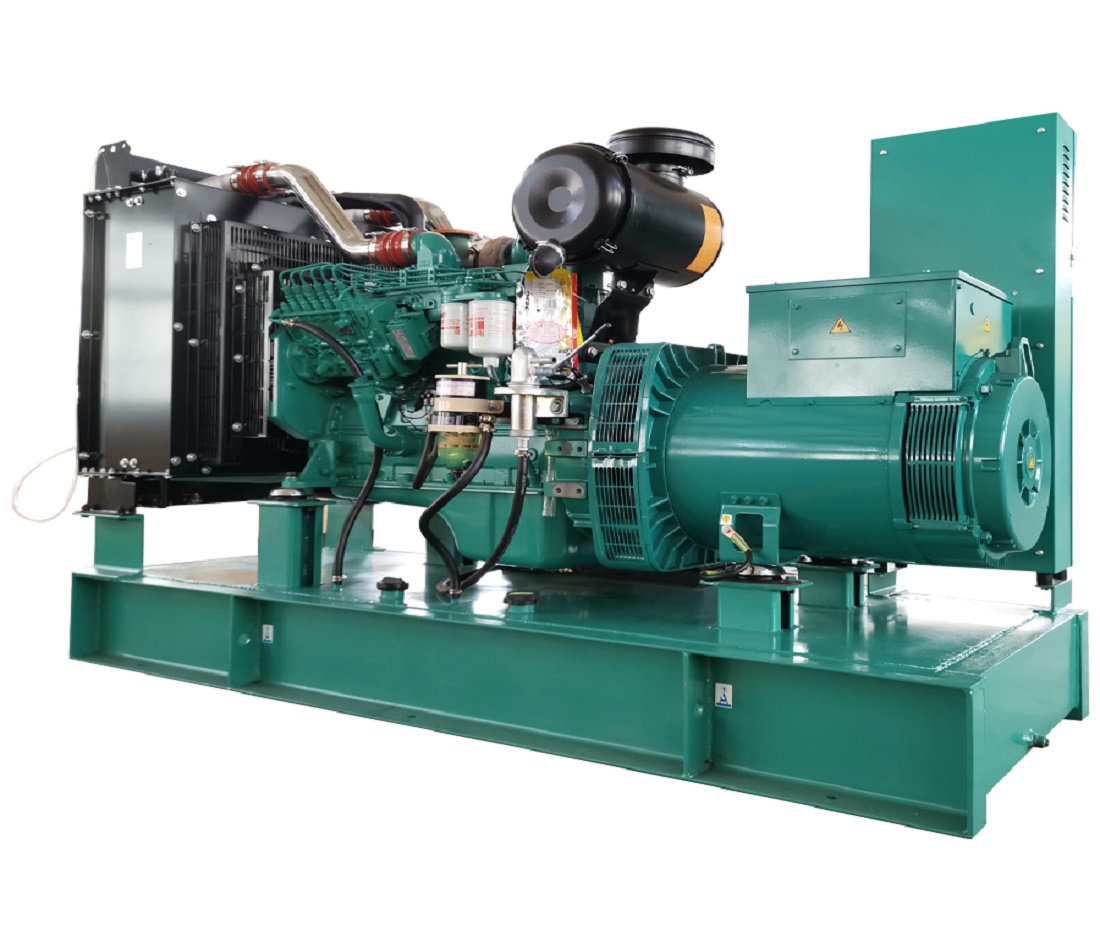

Rated Power 100KW/125KVA TPD125C5-2 power generator diesel
Hits: 403
Price: 1.00Dolla/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Expiry: Long-term
Update date 2023-03-03 10:16

Detail

Overview

Essential details

  • Warranty:

  • 3months-1year

  • Certification:

  • CE

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • TONTEK

  • Model Number:

  • TPD125C5-2

  • Rated Voltage:

  • 400/230V (Can be adjusted)

  • Speed:

  • 1500rpm

  • Frequency:

  • 50HZ

  • Weight:

  • 1250KG

  • Alternator brand:

  • STAMFORD/MARATHON/Tontek

  • Open type weight:

  • 1250KG

  • Open type size:

  • 2215x785x1550 MM

  • Generator standby power:

  • 110KW/138KVA

  • Fuel consumption:

  • 22L/h

  • Engine model:

  • 6BTAA5.9-G2

  • Engine brand:

  • CUMMINS

Supply Ability

  • Supply Ability

  • 150 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • PE FILM PACKING
    PACKING: STANDARD SEAWORTHY PACKING

  • Port

    • SHANGHAI

  • Lead time:

  • Quantity(units)1 - 1>1
    Lead time (days)15To be negotiated

Video Description

00:00

00:12

DIESEL GENERATOR data:


Generator set model

: TPD125C5-2




Generator rated power

: 100KW/125KVA




Generator standby power

: 110KW/138KVA




Rated frequency

: 50HZ




Rated voltage

: 400/230V (Can be adjusted)




Rated speed

: 1500RPM




Fuel consumption

: 22L/h




Open type size

: 2215x785x1550 MM




Open type weight

: 1250 Kg




ENGINE DATA





Engine model:

: 6BTAA5.9-G2




Engine brand

: CUMMINS




Engine rated power

: 120KW




Engine standby power

: 132KW




Engine speed

: 1500RPM




Bore & Stroke

: 102 × 120 mm




Displacement

: 5.9 L




Type

: In line,6 cylinders,4 stroke




Aspiration

: Turbocharged & Aftercooled




Governor

: Electronic




ALTERNATOR data:





Alternator model

: UCI 274E

MP-104-4

TP-112-4


Alternator brand

: STAMFORD

MARATHON

TONTEK


Rated power

: 112KW

104KW

112KW


Frequency

: 50HZ


Speed

: 1500RPM


Voltage

: 400/230V (Can be adjusted)


Power factor

: 0.8 (lagging)


Phase and wire

: 3 phase 4 wires


Excite type

: Single Bearing, Close coupled. Brushless, self-exciting,AVR


Protection class

: IP23


Insulation class

: H
