Home > Sell > 1000KVA AC Three Phase 400V Diesel Generators 800KW Diesel Generator Price
1000KVA AC Three Phase 400V Diesel Generators 800KW Diesel Generator Price
Hits: 640
Price: 115.00Dolla/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Expiry: Long-term
Update date 2023-03-03 10:24

Detail

Overview

Essential details

  • Warranty:

  • 13 nonths

  • Certification:

  • CE

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • Tontek

  • Model Number:

  • TPD1000C6

  • Rated Voltage:

  • 440V (Can be adjusted)

  • Speed:

  • 1800RPM

  • Frequency:

  • 60HZ

  • Rated Power:

  • 800KW/1000KVA

  • Standby power:

  • 900KW/1125KVA

  • Fuel consumption:

  • 209L/h

  • Engine model:

  • KTA38-G5

  • Engine brand:

  • CUMMINS

  • Bore & Stroke:

  • 159 *159 mm

  • Compression ratio:

  • 13.9:1

  • Cooling method:

  • Water cooled by radiator

  • Phase and wire:

  • 3 phase 4 wires

  • Protection class:

  • IP23

Supply Ability

  • Supply Ability

  • 150 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • PE FILM PACKING
    PACKING: STANDARD SEAWORTHY PACKING

  • Port

    • SHANGHAI

  • Lead time:

  • Quantity(units)1 - 1>1
    Lead time (days)15To be negotiated

Video Description

00:00

00:17

DIESEL GENERATOR DATA



Generator set model

TPD1000C6



Generator rated power

800KW/1000KVA



Rated frequency

60HZ



Rated voltage

400V (Can be adjusted)



Rated speed

1800RPM



Fuel consumption

 223L/h

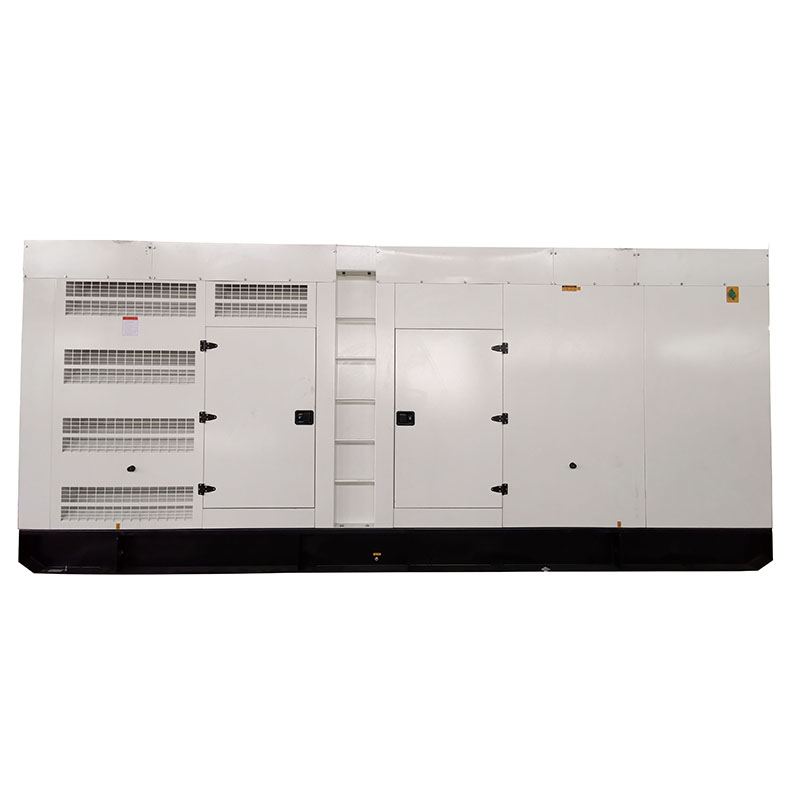

Silent type size

9000x2438x2800 MM



Silent type weight

9400 Kg



ENGINE DATA



Engine model:

 KTA38-G2A



Engine brand

CUMMINS



Bore & Stroke

159 × 159 mm



Displacement

38 L



Compression ratio

14.5:1



Type

V-type,12 cylinders,4 stroke



Aspiration

Turbocharged, Aftercooled



Governor

Electronic



Cooling method

Water cooled by radiator



ALTERNATOR DATA


Alternator brand

STAMFORD

MARATHON

TONTEK

Power factor

0.8 (lagging)

Phase and wire

3 phase 4 wires

Excite type

Single Bearing, Close coupled. Brushless, self-exciting,AVR

Protection class

IP23

Insulation class

 H
