Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
MINGCH or OEM Logo
Model Number:
TND/SVC-5KVA
Usage:
To stabilize the input voltage automatically, To stabilize the input voltage automatically
Phase:
Single Phase
Current Type:
AC
Product Name:
Single Phase Automatic Regulator Stabilizer Voltage
Capacity:
5KVA (0.5 KVA to 30 KVA Available)
Input Voltage:
130-250V
Output Voltage:
220V
Efficiency:
≥90%
Response Time:
≤1S
Ambient Temperature:
-10℃~+40℃
Protection:
Over/Under Voltage, Short Circuit, Over Temperature, Phase Failure,etc
Main Products:
Voltage Regulator,Voltage Stabilizer,AVR,UPS,Inverter and so on.
Supply Ability
Supply Ability
600 Set/Sets per Month 5000W Automatic Voltage Regulator
Packaging & delivery
Packaging Details
small capacity products (Automatic Voltage Regulators/Stabilizers), colour box as inner package and cardboard carton as outer package.
big capacity products, we use strong plywood case.
Port
Ningbo or Shanghai or any other ports in China.
Lead time:
Quantity(sets) 1 - 5 6 - 50 >50 Lead time (days) 3 15 To be negotiated
You are here:Home>>Voltage Regulator/Stabilizers>>TND/SVC Voltage Regulator/Stabilizers

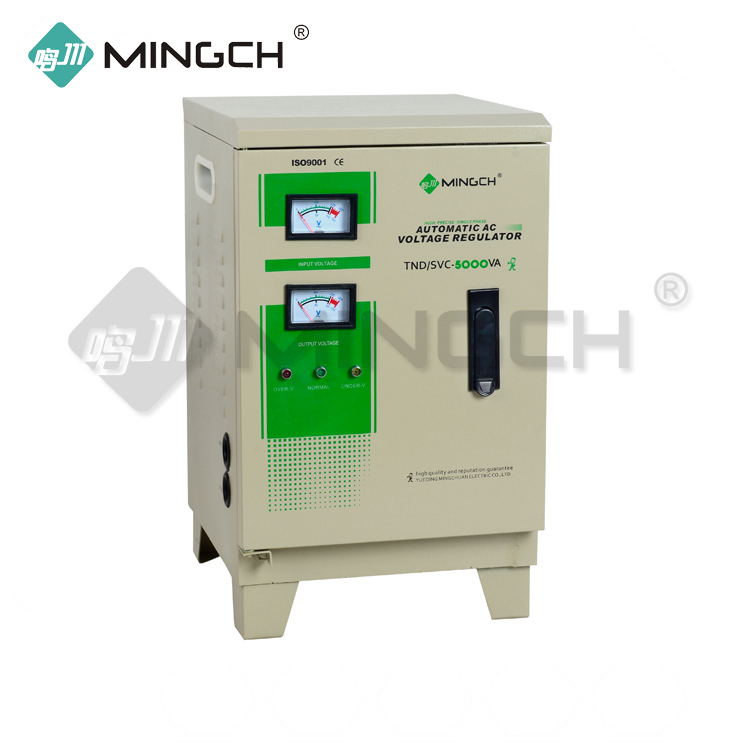

MINGCH Hot Sale 220V 5000W Single Phase Automatic Regulator Stabilizer Voltage
Product Description
TND/SVC series fully automatically voltage regulator consist of contact autotransforme r, servo motor, automatic control circuit etc.
When grid voltage instability,automatically sampling control circuit sends a signal to drive servo motor
Waveform distortionless, reliable performance,long-term operation
Over voltage, undervoltage protected function
Specification | TND/SVC-0.5KVA up to 30KVA |
Input Voltage | 130V-250V |
Output Voltage | 220V |
Output Deviance | 1-3%(Adjustable) |
Frequency | 50/60Hz |
Efficiency | ≥90% |
Response Time | ≤1S |
Ambient Temperature | -10℃~+40℃ |
Insulation Resistance | ≥5MΩ |
Overload | Double Reted Current,One Min |
Waveform Distortion | Non-Lack Fidelity Wareform |
Protect | Overvoltage,Overcurrent,Lack Phases |
| Trade Items | |
MOQ | 1 Set |
Design Ability | OEM&ODM is welcome,can supply sample |
Certification | CCC,CE,ISO9001,ISO14001,SGS |
Packing | Standard Export Packing |
Payment Term | Trade Assurance,T/T,L/C,D/A,D/P Western Union MoneyGram and so on |
| Delivery time | 7-10 working days after payment received |
Model | Weight (KG) | Outline (L*W*H, CM) | QTY |
TND/SVC-0.5 K | 4 | 19*16*14 | 4 |
TND/SVC-1 K | 5.5 | 21*19*17 | 4 |
TND/SVC-1.5 K | 5.8 | 21*19*17 | 4 |
TND/SVC-2 K | 10 | 29*24*20 | 2 |
TND/SVC-3 K | 12 | 29*24*25 | 2 |
TND/SVC-5 K | 15 | 36*22*29 | 2 |
TND/SVC-7 K | 16.5 | 36*22*29 | 2 |
TND/SVC-10 K | 27 | 42*24*36 | 1 |
TND/SVC-15 K | 64 | 42*38*76 | 1 |
TND/SVC-20 K | 70 | 42*38*76 | 1 |
TND/SVC-30 K | 95 | 45*43*87 | 1 |
TND/SVC-5 K(Vertical) | 17 | 32*28*46 | 1 |
TND/SVC-10 K(Vertical) | 36 | 36*28*51 | 1 |
