Overview
Essential details
Network:
NFC
Customized support:
Software reengineering
Place of Origin:
Zhejiang, China
Brand Name:
MINGCH
Model Number:
Modified Power Inverter-3000W
Type:
DC/AC Inverters
Output Type:
Single
Output Current:
According To Load
Output Frequency:
50Hz/60Hz
Size:
298x180x128mm
Weight:
4450g
Product Name:
Modified Sine Wave Power Inverter
Max Working Efficiency:
93.8% Hybrid Inverter
Package Size:
OEM
Output Waveform:
Modified Sine Wave
USB:
5V 1000MA/2000MA
Storage Temperature:
-30℃~+70℃ Inverter Price In Pakistan
Operating Temperature Range:
-10℃~+50℃
Led Lights:
Blue light (normal);Red light flashes (short circuit)
Protection:
Battery over under/over voltage,overload, AC short circuit protection
Main Products:
Voltage Regulator,Voltage Stabilizer,AVR,UPS,Inverter and so on.
Supply Ability
Supply Ability
600 Set/Sets per Month Inverter Power Inverter
Packaging & delivery
Packaging Details
small capacity products (Automatic Voltage Regulators/Stabilizers), colour box as inner package and cardboard carton as outer package.
big capacity products, we use strong plywood case.
Port
Ningbo or Shanghai or any other ports in China.
Video Description
You are here:Home>>Inverter>>Modified Sine Wave Power Inverter

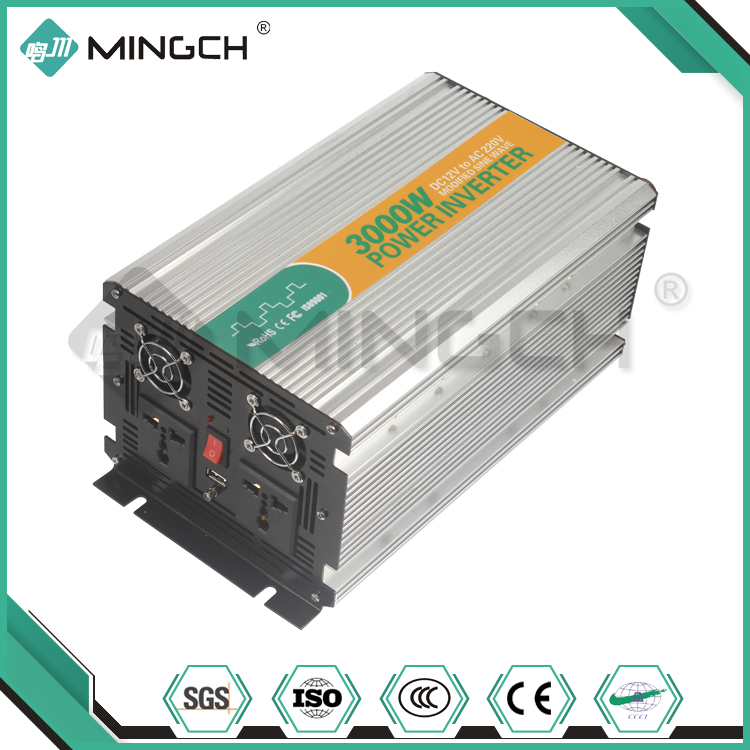

MINGCH 2018 Newest OEM 3000W Solar Power Inverter
Product Description
Modified sine wave inverters is one of the most popular power inverter series since the beginning. We produce the power range from 200W to 5000W recently.
| Model | MINGCH-3K-1 | MINGCH-3K-1 | MINGCH-3K-1 | MINGCH-3K-2 | MINGCH-3K-2 | MINGCH-3-2 |
| Rated power | 3000W | |||||
| Peak power | 6000W | |||||
| Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | ||||
| Unload current less than | 0.8A | 0.5A | 0.2A | 0.8A | 0.5A | 0.2A |
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | |||||
| Output waveform | Modified Sine Wave | |||||
| USB port | 5V 1A | |||||
| Max.efficiency | 90% | |||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
| Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
| Low voltage recover | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V |
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V |
| Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | ||||
| Over voltage | LED Red light on, shut down | |||||
| Over load | LED Red light on, shut down | |||||
| Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | |||||
| Short circuit | LED Red light on | |||||
| Input reverse polarity | Fuse burn-out | |||||
| Working temperature | -10°- +50° | |||||
| Storage temperature | -30°- +70° | |||||
| Dimension(mm) | 298x180x128 mm | |||||
| Packing(mm) | 385x245x200 mm | |||||
| Net./gross weight(g) | 4450/5350g | |||||
| QTY/Ctn | 4 Pcs | |||||
| Meas./Ctn(mm) | 500x400x415mm | |||||
| Gross weight/Ctn(g) | 21600g | |||||
