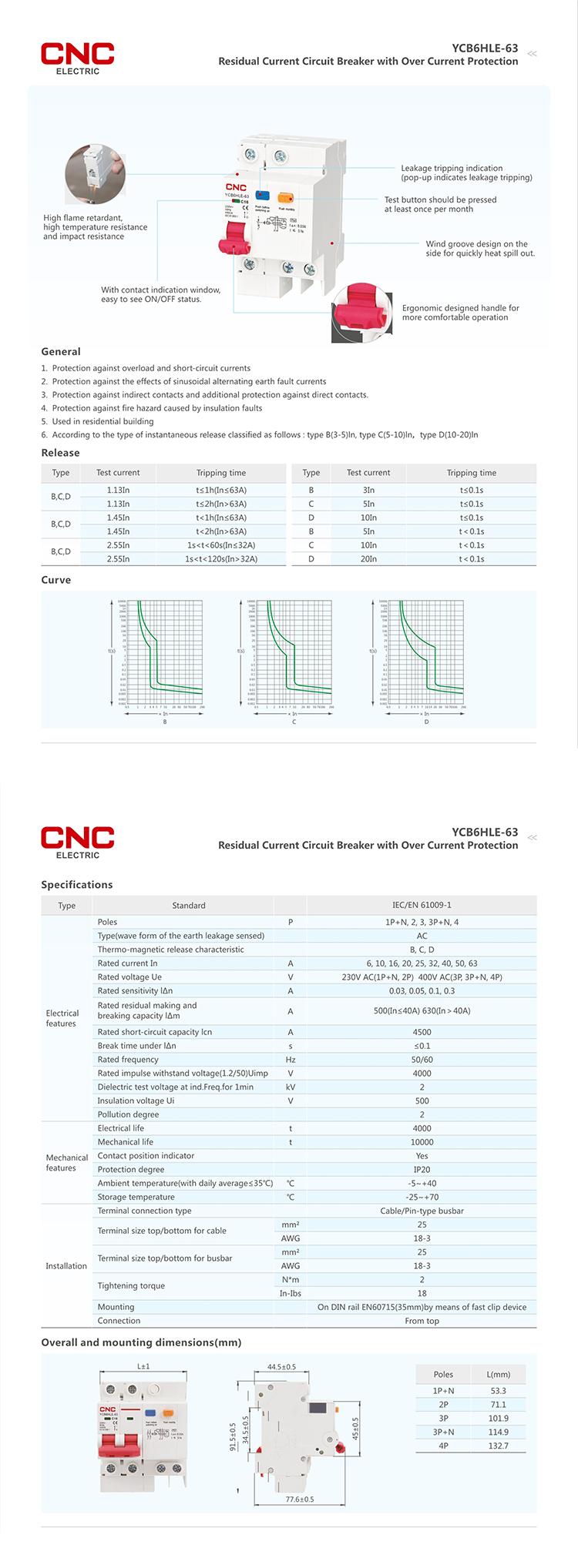

Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
CNC
Model Number:
YCB6HLE-63
Poles:
1P+N 2 3 3P+N 4
Electrical Life (t):
2000
Rated Voltage Ue (V):
230/400
Insulation Voltage Ui (V):
500
Rated frequency (Hz):
50/60
Rated shor-circuit capacity (Icn):
4500
Terminal connection type:
Cable / Pin-type busbar
Connection:
From top
Rated Current In (A):
6, 10, 16, 20, 25, 32, 40, 50, 63
Type:
Residual Current
Poles Number:
1,2,3,4
Supply Ability
Supply Ability
80000 Set/Sets per Week
Packaging & delivery
Packaging Details
72 Sets/Carton 327*313*290
Neutral Packing / CNC Brand
OEM & ODM
Port
Ningbo/Shanghai
Lead time:
Quantity(sets) 1 - 900 901 - 3600 3601 - 10000 >10000 Lead time (days) 7 12 15 To be negotiated
Product Category
PRODUCT CATEGORIES
→ VIEW ALL
MODULAR DIN RAIL
DISTRIBUTION APPARATUS
MOTOR ConTROL PROTECTION
INDUSTRIAL ConTROL COMPONENTS
POWER ENERGY MANAGEMENT
WALL SWITCH
EXPLOSION-PROOF PRODUCTS
POWER TRANSMISSION DISTRIBUTION EQUIPMENTS
Product Description
Rcbo 100a 3p rcbo 100a 2p over current protection 6ka rcbo
