Home > Sell > copper cable 1.5mm 2.5mm 4mm twin and earth cable 2 Core or 2+1 Core Flat Cable

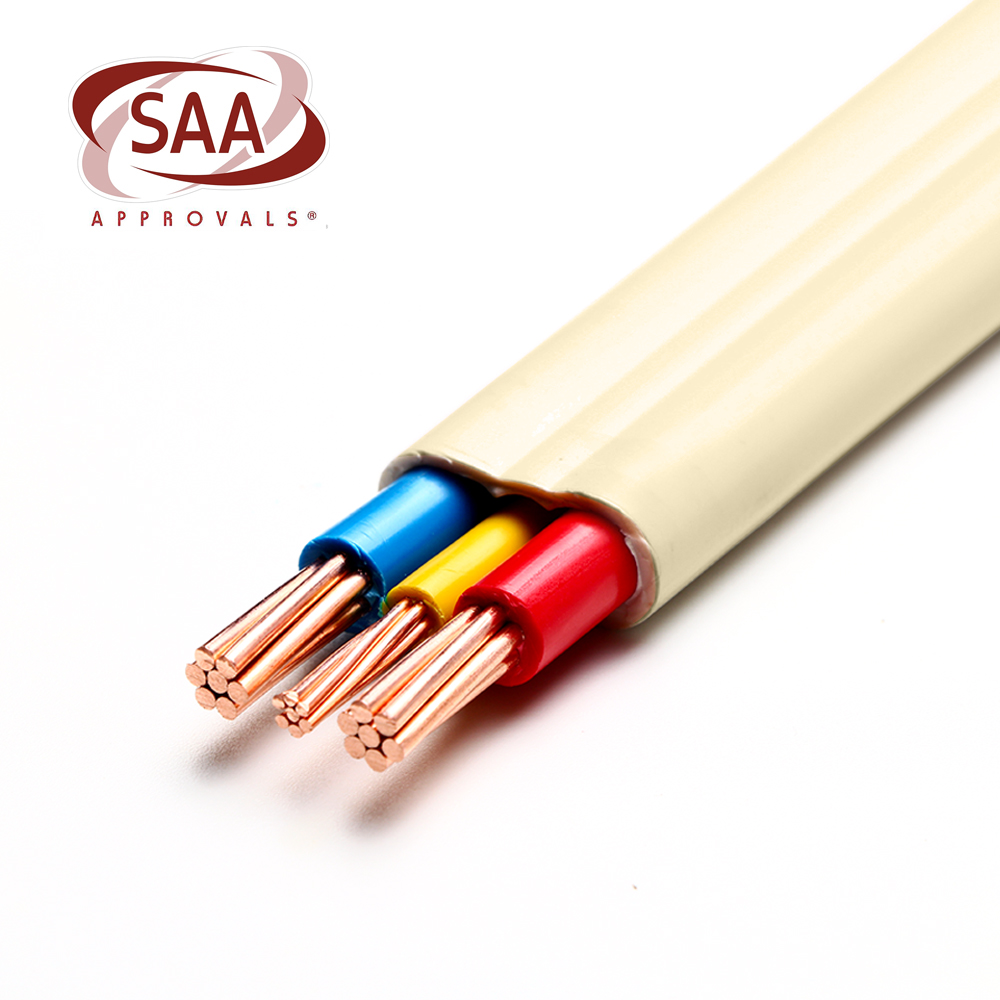

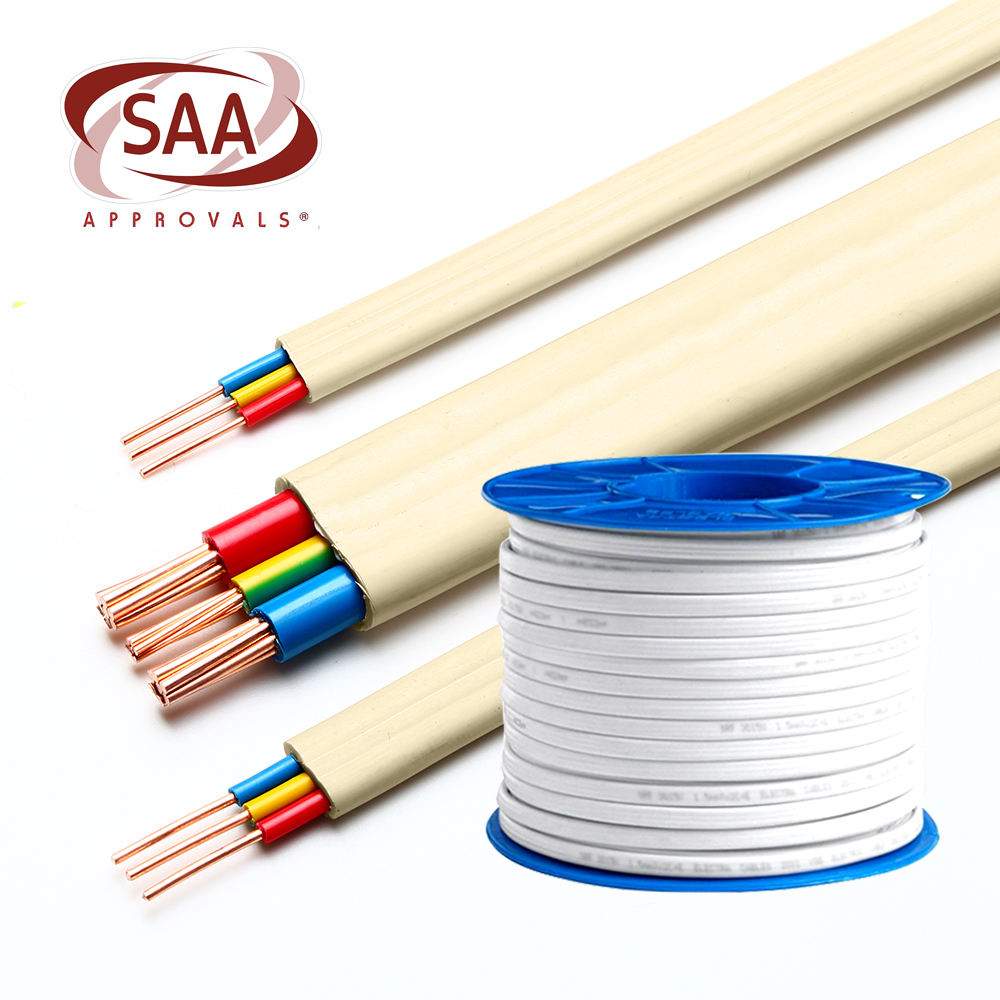

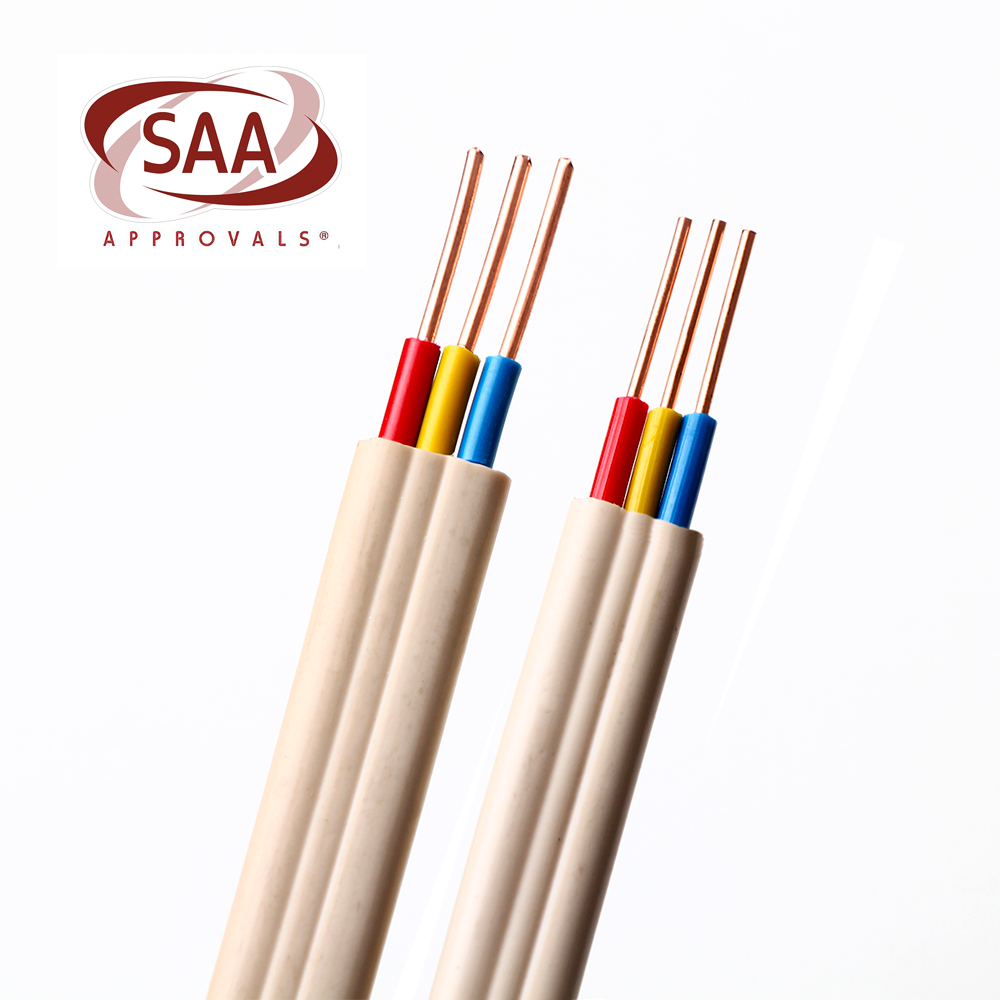

copper cable 1.5mm 2.5mm 4mm twin and earth cable 2 Core or 2+1 Core Flat Cable
Hits: 886
Price: N/A
Min quantity:
Quantity:
Deliver: In days
Expiry: Long-term
Update date 2022-11-07 16:39

Detail

Packaging & delivery

  • Packaging Details

    • Inner packing:Wooden reel,Plastic reel,Paper reel
    Ourter pakcing:Carton box,Pull outbox,Palleta available.

  • Port

    • shenzhen

  • Lead time:

  • Quantity(meters)1 - 10000>10000
    Lead time (days)15To be negotiated

Products Description


*  Product standard:
  The production standard for National AS/NZS 1125; AS/ NZS 5000.2

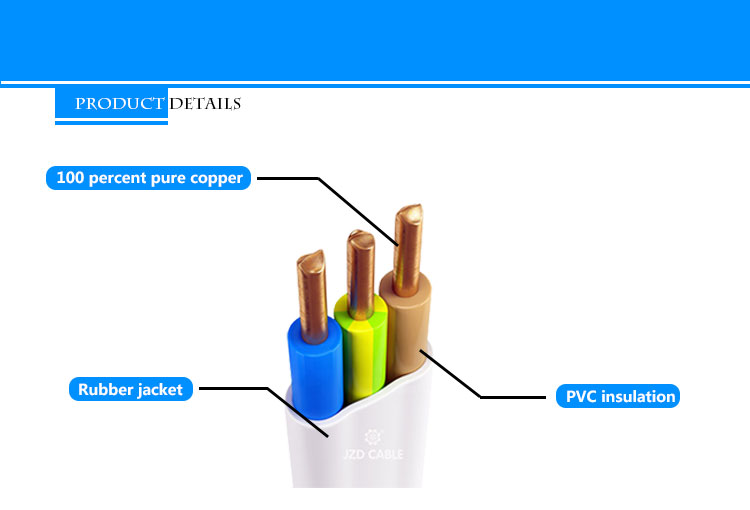

* Main of Cables Features:
    1, Color: With Green/Yellow core

    2, Outer :PVC

    3, Sheath :V-90

    4, Number of earth cores:1

    5, Rated Voltage Uo/U (Um): 450/750V

    6,  Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the       allowable temperature of other models should not exceed 70℃.


* Application:
  Applicable to the cables and wires of rated voltage 450/750V and less than 450/750V AC for power plant, household electrical appliance, instrument, and telecommunication equipment.


* Certification: CE/CCC/SAA

 The quality is guaranteed, and you do not need to worry about the problem of import clearance in AU.

Cross

section [mm2]

Type of conductor

Number and diameter of
wires No/mm

Nom. insulation
thick. [mm]

Nom. outer sheath thick. [mm]

Earth cond.
sect. [mm2]

Nom. over, diam.

Approx, weight [kg/100m]

Nexans ref.

1

Solid copper

1/1.13

0.6

0.9

1

8.9 x 4.2

7.74

2*1mm² +1 E

1

Solid copper

1/1.13

0.6

0.9

1

8.9 x 4.2

7.74

2*1mm² +1 E

1

Solid copper

1/1.13

0.6

0.9

1

8.9 x 4.2

7.74

2*1.5mm² +1.5 E

1.5

Stranded copper

7/0.52

0.6

0.9

1.5

9.9 x 4.5

8.86

2*1.5mm² +1.5 E

1.5

Stranded copper

7/0.52

0.6

0.9

1.5

9.9 x 4.5

13.29

2*1.5mm² +1.5 E

1.5

Stranded copper

7/0.52

0.6

0.9

1.5

9.9 x 4.5

8.86

2*1.5mm² +1.5 E

1.5

Stranded copper

7/0.52

0.6

0.9

1.5

9.9 x 4.5

8.86

2*1.5mm² +1.5 E

1.5

Stranded copper

7/0.52

0.6

0.9

1.5

9.9 x 4.5

8.86

2*1.5mm² +1.5 E

2.5

Solid copper

1/1.77

0.7

1.0

2.5

11.8x5.4

13.68

2*2.5mm² +2.5 E

2.5

Stranded copper

7/0.67

0.7

1.0

2.5

12.2x5.4

14.03

2*2.5mm² +2.5 E

2.5

Stranded copper

7/0.67

0.7

1.0

2.5

12.2x5.4

14.03

2*2.5mm² +2.5 E

2.5

Stranded copper

7/0.67

0.7

1.0

2.5

12.2x5.4

14.03

2*2.5mm² +2.5 E

2.5

Stranded copper

7/0.67

0.7

1.0

2.5

12.2x5.4

14.03

2*2.5mm² +2.5 E

2.5

Stranded copper

7/0.67

0.7

1.0

2.5

12.2x5.4

14.03

2*2.5mm² +2.5 E

2.5

Stranded copper

7/0.67

0.7

1.0

2.5

12.2x5.4

14.03

2*2.5mm² +2.5 E

2.5

Stranded copper

7/0.67

0.7

1.0

2.5

12.2x5.4

14.03

2*2.5mm² +2.5 E

2.5

Stranded copper

7/0.67

0.7

1.0

2.5

12.2x5.4

14.03

2*2.5mm² +2.5 E

4

Stranded copper

7/0.85

0.8

1.1

2.5

13.9x6.3

18.65

2*4mm² +2.5 E

4

Stranded copper

7/0.85

0.8

1.1

2.5

13.9x6.3

18.65

2*4mm² +2.5 E

4

Stranded copper

7/0.85

0.8

1.1

2.5

13.9x6.3

18.65

2*4mm² +2.5 E

4

Stranded copper

7/0.85

0.8

1.1

2.5

13.9x6.3

18.65

2*4mm² +2.5 E

4

Stranded copper

7/0.85

0.8

1.1

2.5

13.9x6.3

18.65

2*4mm² +2.5 E

4

Stranded copper

7/0.85

0.8

1.1

2.5

13.9x6.3

18.65

2*4mm² +2.5 E

6

Stranded copper

7/1.03

0.8

1.1

2.5

15.0x6.9

23.04

2*6mm² +2.5 E

6

Stranded copper

7/1.03

0.8

1.1

2.5

15.0x6.9

23.04

2*6mm² +2.5 E

6

Stranded copper

7/1.03

0.8

1.1

2.5

15.0x6.9

23.04

2*6mm² +2.5 E

6

Stranded copper

7/1.03

0.8

1.1

2.5

15.0x6.9

23.04

2*6mm² +2.5 E
