Home > Sell > Cable Manufacturer 600V Waterproof 2.5MM2 4 Core Flat Submersible Pump Cable

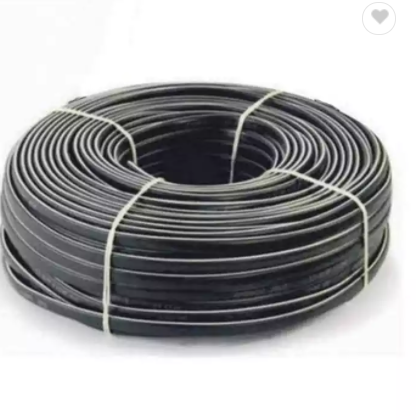

Cable Manufacturer 600V Waterproof 2.5MM2 4 Core Flat Submersible Pump Cable
Hits: 930
Price: N/A
Min quantity:
Quantity:
Deliver: In days
Expiry: Long-term
Update date 2022-11-07 16:40

Detail

Packaging & delivery

  • Packaging Details

    • Inner packing:Wooden reel,Plastic reel,Paper reel Ourter pakcing:Carton box,Pull outbox,Palleta available.

  • Port

    • SHENZHEN

  • Lead time:

  • Quantity(meters)1 - 10000>10000
    Lead time (days)15To be negotiated

Products Description


*  APPLICATION
    Used to connect electrical circuits of underground pump rated at 600 volts maximum circuit voltage rating and 75℃ maximum conductor thermal rating.


* CONDUCTOR


   Three soft drawn bunched/ropelay copper conductors. Available sizes are listed on the next page.

* INSULATION

   Individual conductor is color-coded extruded with Polyvinyl Chloride (PVC) Lead Free. This Thermoplastic is flame retardant and resistant to heat, moisture and oil.

* JACKET

  Assembled multi-conductor cable is extruded with Polyvinyl Chloride (PVC) Lead Free and then with Black Polyethylene (PE) for final protective covering.

SIZE OF CONDUCTOR

No.&Nominal Diameter of Wire

PVC Insulation Thickness

PE Insulation Thickness

Approximate overall diameter

nominal weight

MM

Approximate AWG


MM

MM

MM

KG/KM

0.75MM2

18

30X0.18MM

1.2

1.6

12.36

161.83

1.25MM2

16

50X0.18MM

1.2

1.6

13.22

195.21

2.00MM2

14

37X0.26MM

1.2

1.6

13.87

229.28

3.5MM2

12

45X0.32MM

1.2

1.6

15.38

311.28

5.5MM2

10

70X0.32MM

1.2

1.6

16.68

399.55

8.0MM2

8

7X14X0.32MM

1.6

2.0

22.18

603.97

14MM2

6

7X25X0.32MM

1.6

2.0

25.21

865.69

22MM2

4

7X39X0.32MM

1.6

2.0

28.23

1179.65

30MM2

2

7X53X0.32MM

1.6

2.0

30.61

1477.37

38MM2

1

19X25X0.32MM

2.0

2.0

34.50

1899.96

50MM2

1/0

19X33X0.32MM

2.0

2.0

37.30

2352.93

60MM2

2/0

19X39X0.32MM

2.0

2.0

39.9

2713.35

80MM2

3/0

19X53X0.32MM

2.0

2.8

45.17

3574.58

100MM2

4/0

37X34X0.32MM

2.0

2.8

49.27

4330.96

125MM2

250MCM

37X42X0.32MM

2.4

2.8

54.46

5336.55

150MM2

300MCM

37X51X0.32MM

2.4

2.8

57.7

6266.27

200MM2

400MCM

61X41X0.32MM

2.4

2.8

63.96

8008.22

250MM2

500MCM

61X51X0.32MM

2.4

3.6

70.96

9874.79
