Products Description
* Main of cables features
1, Nominal Voltage: 600V
2,Testing Voltage: 2000V

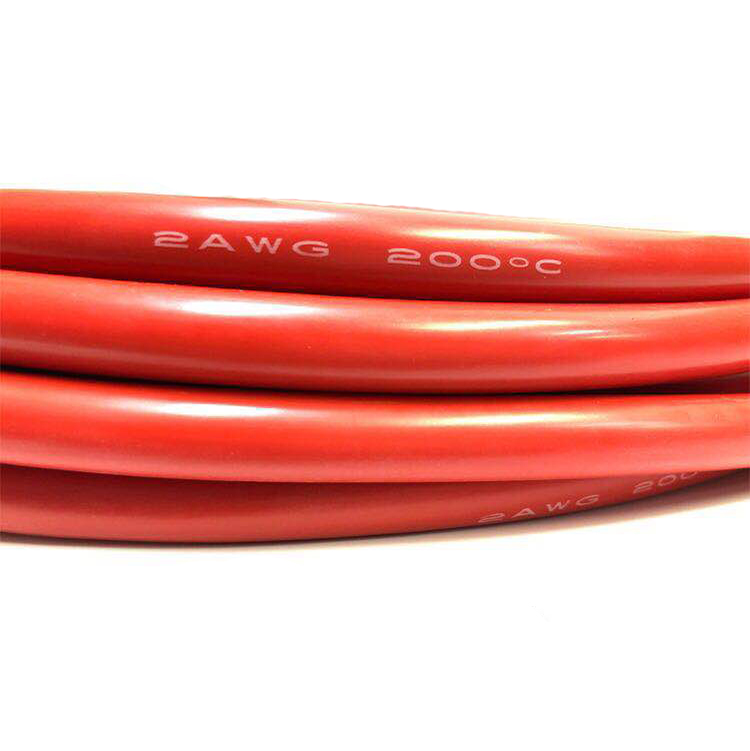

2, Long-term allowable temperature of the cable:-60° C〜+ 200°C

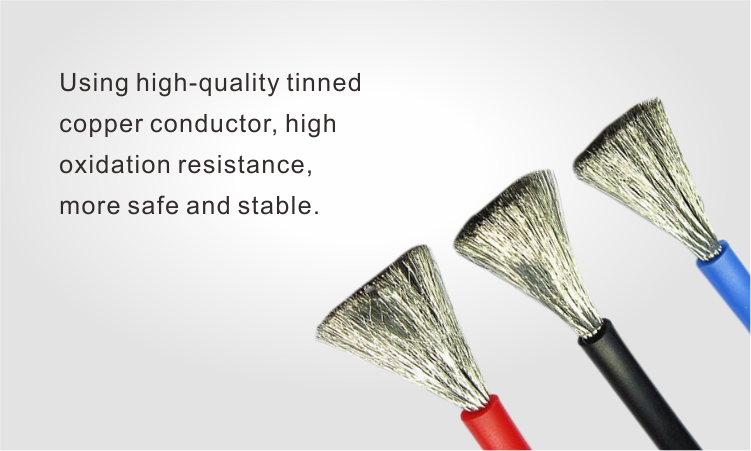

3, Conductor: Stranded Tinned copper wire
4, Insulator material: silicone Rubber

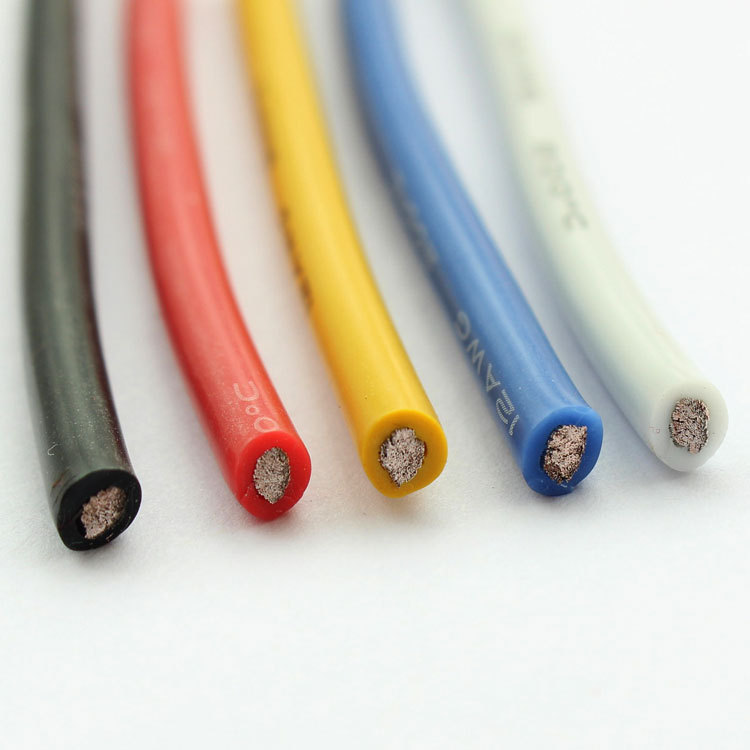

5,Color: Black, red ,Blue Or Customized Color6,Conductor size: 0AWG, 1AWG, 2AWG, 3AWG, 4AWG, 6AWG, 7AWG, 8AWG, 10AWG, 11AWG, 12AWG, 13AWG, 14AWG, 15AWG, 16AWG, 17AWG, 18AWG, 20AWG, 22AWG, 24AWG, 26AWG, 28AWG, 30AWG

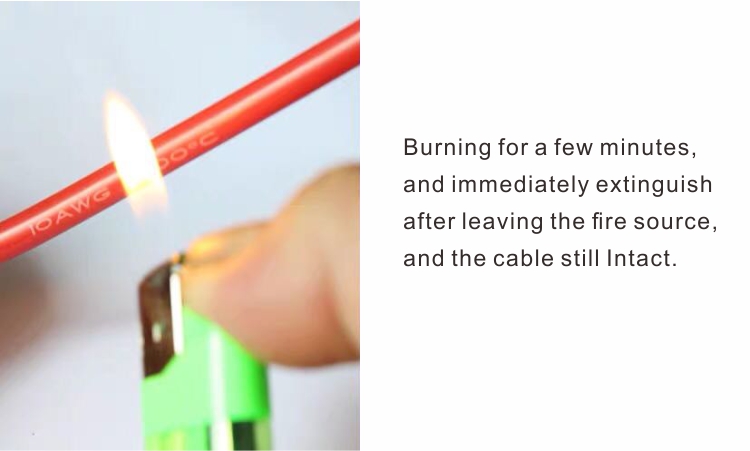

7,Feature: Super Soft, Waterproof, High-Temperature Resistance, Anti-Low Temperature, oilproof, Anti-aging
* Application:
Applicable to electronic motors, industrial machines, electric models, model airplanes, car models, batteries, ESCs, motor lights
Product Paramenters
conductor | Insulator | Electrical Characteristics | Maximum Current | Package |
Size | No. & Nominal / Diameter of Wire | Section | Diameter | Insulator Thick | Over Diameter | Conductor resistance | Ampere |
AWG | MM | MM2 | MM | MM | MM | Ω/KM | A | Meter / Roll |
0 | 19000/0.08mm | 95.5 | 12.73 | 2.64 | 18 | 0.18 | 955 | 50 |
1 | 15000/0.008mm | 75 | 11.3 | 2.3 | 15.5 | 0.45 | 840 | 50 |
2 | 10000/0.008mm | 50 | 9.24 | 2.4 | 14 | 0.63 | 630 | 50 |
3 | 6700/0.008mm | 33.7 | 7.73 | 2.6 | 13 | 0.89 | 500 | 50 |
4 | 5000/0.008mm | 25 | 6.53 | 2.4 | 11 | 1.25 | 400 | 50 |
6 | 3200/0.008mm | 16 | 5.23 | 1.65 | 8.5 | 1.9 | 300 | 100 |
7 | 2400/0.008mm | 12 | 4.53 | 1.35 | 7.2 | 2.6 | 240 | 100 |
8 | 1650/0.008mm | 8.3 | 3.75 | 1.5 | 6.3 | 3.7 | 190 | 100 |
10 | 1050/0.008mm | 5.3 | 3 | 1.3 | 5.45 | 6.3 | 140 | 100 |
11 | 750/0. 008mm | 3.8 | 2.53 | 1.2 | 5 | 8.3 | 105 | 100 |
12 | 680/0.008mm | 3.4 | 2.41 | 1 | 4.5 | 9.8 | 88 | 100 |
13 | 500/0.008mm | 2.5 | 2.07 | 1 | 4 | 12.5 | 70 | 100 |
14 | 400/0.008mm | 2 | 1.85 | 0.9 | 3.5 | 15.6 | 55 | 200 |
15 | 300/0.008mm | 1.5 | 1.6 | 0.8 | 3.2 | 20.8 | 42 | 200 |
16 | 252/0.008mm | 1.27 | 1.47 | 0.75 | 3 | 24.4 | 35 | 200 |
17 | 210/0.008mm | 1 | 1.33 | 0.68 | 2.7 | 29.8 | 30 | 200 |
18 | 150/0. 008mm | 0.75 | 1.13 | 0.55 | 2.3 | 39.5 | 22 | 200 |
20 | 100/0.008mm | 0.5 | 0.92 | 0.45 | 1.8 | 62.5 | 13 | 400 |
22 | 60/0.008mm | 0.3 | 0.72 | 0.45 | 1.7 | 88.6 | 8 | 400 |
24 | 40/0.008mm | 0.2 | 0.58 | 0.5 | 1.6 | 97.6 | 5 | 400 |
26 | 30/0.008mm | 0.16 | 0.51 | 0.5 | 1.5 | 123 | 3.5 | 400 |
28 | 16/0.008mm | 0.08 | 0.37 | 0.4 | 1.2 | 227.2 | 1.25 | 1500 |
30 | 11/0.008mm | 0.055 | 0.31 | 0.3 | 0.8 | 331 | 0.8 | 2500 |
