Servo motor

Home > Sell > CNC 60Flange 220V 200W 400W 600W servomotors AC Servo Motor and servo drive kits

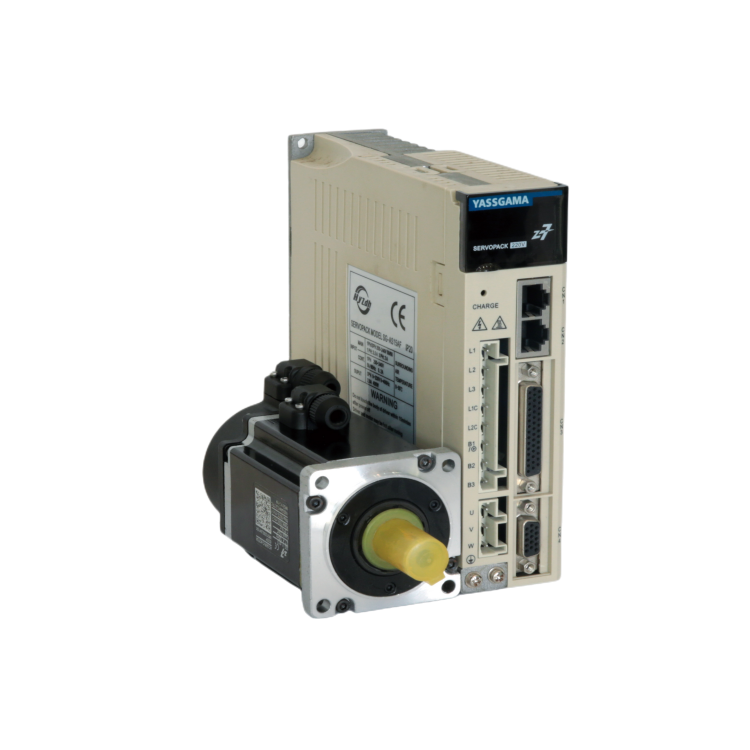

CNC 60Flange 220V 200W 400W 600W servomotors AC Servo Motor and servo drive kits
Hits: 375
Price: 69.99Dolla/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Expiry: Long-term
Update date 2023-02-15 15:14

Detail

Overview

Essential details

  • Warranty:

  • 3months-1year

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • XINYUHAI

  • Model Number:

  • 60SY-M S1

  • Type:

  • SERVO MOTOR

  • Frequency:

  • 50/60Hz

  • Phase:

  • Three-phase

  • Protect Feature:

  • IP65

  • AC Voltage:

  • 220V

  • Efficiency:

  • IE 4

  • Number of pole pairs:

  • 5

  • Encoder Brand:

  • Tamagawa(From Japan)

  • Output Power:

  • 200w/400w/600w

  • installation method:

  • Flange installation

  • Insuation resistance:

  • DC500v ,10M above

  • environment temperature:

  • 0 °C - 55 °C

  • Vibration:under:

  • 2.5G

  • Insuation and voltage resistance:

  • AC1500V,1minute

  • Voltage:

  • 220V

  • Certification:

  • CE, ISO

Supply Ability

  • Supply Ability

  • 10000 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • Cartons or wooden box

  • Port

    • NINGBO or SHANGHAI

  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(pieces)1 - 10>10
    Lead time (days)5To be negotiated

CNC 60Flange 220V 200W 400W 600W servomotors

AC Servo Motor and servo drive kits

Motor Model

60SY-M00630S1-5

60SY-M01330S1-5

60SY-M01930-5

Rated Power(w)

200

400

600

Rated Torque(N.m)

0.637

1.27

1.91

Max Torque(N.m)

1.91

3.81

5.4

Rated Speed(Rpm)

3000

3000

3000

Max Speed(Rpm)

5000

5000

5000

Rated Current(A)

1.35

2.7

3.5

Rotor Inertia(Kg.㎡)

0.245*10-4

0.418*10-4

0.65*10-4

Motor Weight(Kg)

0.85

1.3

1.65

1. High level of integration 2. Fast response 3. Protect perfectly 4. High reliability Yaskawa Sigma-7 type driver Pls contact me for more details about the servo motor and driver ! We have tamagawa incremental 2500PPR /5000PPR and absolute 17BITS /23BITS ! STANDARD MODEL:SUPPORT PULSE AND DIRECTION, MODBUS RS485, INTERNAL POSITION CONTROL, AUTOMATIC TUNING
