Home > Sell > 1.8 Degree nema 34 stepper motor 12N.m 2 phase Small Electric linear hybrid stepper motor

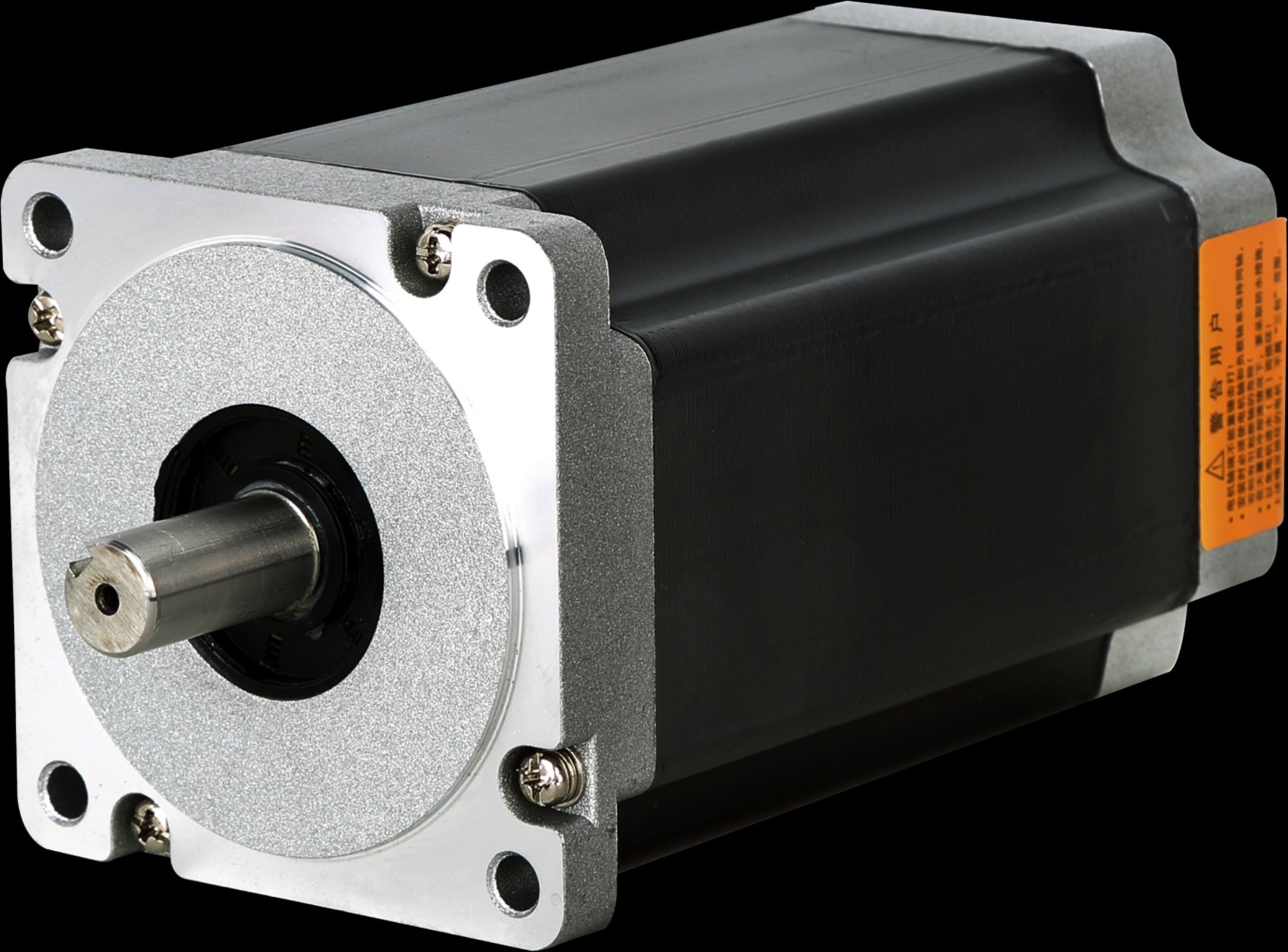

1.8 Degree nema 34 stepper motor 12N.m 2 phase Small Electric linear hybrid stepper motor
Hits: 374
Price: 48.00Dolla/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Expiry: Long-term
Update date 2023-02-15 15:16

Detail

Overview

Essential details

  • Warranty:

  • 3months-1year

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • XINYUHAI

  • Model Number:

  • 86BYG250E

  • Phase:

  • 2, two phase

  • Type:

  • Hybrid

  • Current / Phase:

  • 6A per Phase, 6A

  • Holding Torque:

  • 12N.M

  • Step angle accuracy:

  • 5%

  • Temperature rise:

  • 80°MAX(Rated current)

  • Environment temperature:

  • -20 °C - 50 °C

  • Dielectric strength:

  • Low 500V AC 1min/High 1500V AC 1min

  • Stepper motor Insulation grade:

  • B

  • Insulation resistance:

  • 100M 500V DC

  • Certification:

  • CE, ISO

Supply Ability

  • Supply Ability

  • 10000 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • Cartons or wooden box

  • Port

    • NINGBO or SHANGHAI

  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(pieces)1 - 10>10
    Lead time (days)10To be negotiated

Video Description

00:00

00:33

1.8 Degree nema 34 stepper motor 12N.m 2 phase Small Electric linear hybrid stepper motor

Motor Model

Step Angle

Holding torque

Operating Voltage

Rated Current

Phase Inductance

Phase Resistance

Rotor inertia (Kg.cm2)

Weight

Motor Lenght

86BYG250A

1.8°

2.4N.M

60V

4.3A

3.1mH

0.5Ω

1.92

2.2Kg

78mm

86BYG250B

1.8°

4N.M

60V

4.5A

7.0mH

1.0Ω

2.55

2.95Kg

99mm

86BYG250C

1.8°

6N.M

60V

5A

7.1mH

0.8Ω

3.57

3.7Kg

115mm

86BYG250D

1.8°

8N.M

60V

6A

7.3mH

0.95Ω

3.96

4.3Kg

145mm

86BYG250E

1.8°

12N.M

60V

7.5A

7.8mH

1.0Ω

4.57

5.2Kg

155mm

86BYG350A

1.2°

2N.M

60V

5.2A

2.4mH

0.5Ω

1.49

1.84Kg

78mm

86BYG350B

1.2°

4N.M

60V

5.6A

4.5mH

0.71Ω

2.55

2.95Kg

99mm

86BYG350B-5

1.2°

5N.M

60V

5.6A

5.5mH

0.83Ω

3.21

3.52Kg

110mm

86BYG350C

1.2°

6N.M

60V

5.8A

6.5mH

0.95Ω

3.99

3.9Kg

125mm

86BYGH350A

1.2°

2N.M

220V

1.75A

4.0mH

1.11Ω

1.49

1.98Kg

78mm

86BYGH350B

1.2°

4N.M

220V

2.1A

7.4mH

1.4Ω

2.55

3Kg

99mm

86BYGH350C

1.2°

6N.M

220V

3.2A

12.8mH

1.87Ω

3.96

4.4Kg

135mm

86BYGH350D

1.2°

8N.M

220V

4A

16.2mH

2.01Ω

4.95

5.9Kg

145mm

86mm sreies two phase stepper motor
1. Can be customized
2. Current & torque are adjustable
3. Wide range of uses

Widely used in automation equipment such as Copier ,printing machinery,engraving machine,packing machine,robot,machine tool,milling machine,sewing machine,medical apparatus,ATM machine etc.
