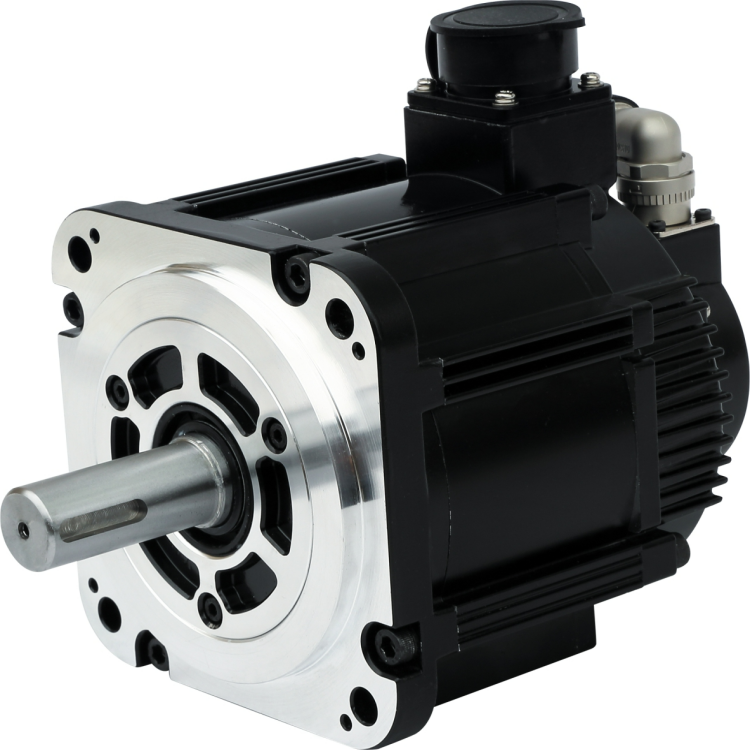

plc control ac servo motor with encoder and brake servosystem servo motor and driver for cnc
Hits: 391
Price: 380.00Dolla/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Expiry: Long-term
Update date 2023-02-15 15:17

Detail

Overview

Essential details

  • Warranty:

  • 3months-1year

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • XINYUHAI

  • Model Number:

  • 130SY-M11515S1

  • Type:

  • SERVO MOTOR

  • Frequency:

  • 50/60Hz

  • Phase:

  • Three-phase

  • Protect Feature:

  • IP65

  • AC Voltage:

  • 220V

  • Efficiency:

  • IE 4

  • Number of pole pairs:

  • 5

  • Encoder Brand:

  • Tamagawa(From Japan)

  • Output Power:

  • 1.8kw

  • install:

  • Flange mountiong

  • Insuation resistance:

  • DC500v ,10M above

  • environment temperature:

  • 0 °C - 55 °C

  • Vibration:under:

  • 2.5G

  • Insuation and voltage resistance:

  • AC1500V,1minute

  • Voltage:

  • 220v

  • Certification:

  • CE, ISO

Supply Ability

  • Supply Ability

  • 10000 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • Cartons or wooden box

  • Port

    • NINGBO or SHANGHAI

  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(pieces)1 - 10>10
    Lead time (days)5To be negotiated

plc control ac servo motor with brake

servo system servo motor and driver for cnc

Motor Model

     130SY-       M05415S1

130SY-M08415S1

130SY-M11515S1

130SY-M15215S1

130SY-M11515S1-2

    130SY-M15210S1

Rated Power(Kw)

0.85

1.3

1.8

2.4

1.8

1.6

Rated Torque(N.m)

5.4

8.4

11.5

15.2

11.5

15.2

Max Torque(N.m)

13.8

23.3

28.7

38.2

19.5

27.36

Rated Speed(Rpm)

1500

1500

1500

1500

1500

1000

Max Speed(Rpm)

3000

3000

3000

3000

2200

      1800

Rated Current(A)

6.4

9.5

13

20

9.5

9.5

Rotor Inertia(Kg.㎡)

1.92*10-3

2.68*10-3

3.53*10-3

4.46*10-3

3.35*10-3

  4.46*10-3

Motor Weight(Kg)

5.86

7.32

9.02

11.06

9.02

11.06

Due to the limited size of the table,not all model parameters are listed,we supply different type and size,for more information,please contact us,also we can customized as your requirement

Compare to Panasonic , Mistubishi , Fanuc and delta brand motor driver. our goods with big advantage in price while the quality is not bad ,especially the motor !
