Home > Sell > China popular servo motor and driver 380v 28n.m 1500rpm cnc kit AC servo motor with driver

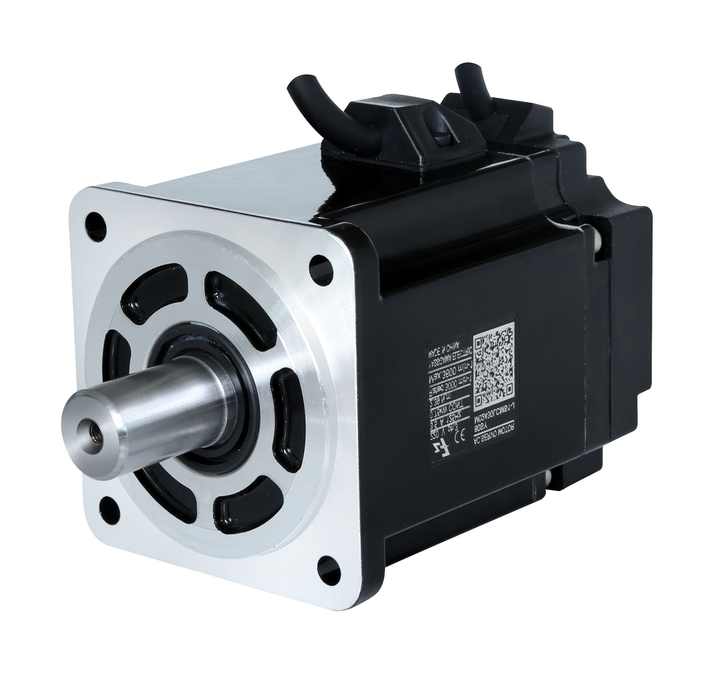

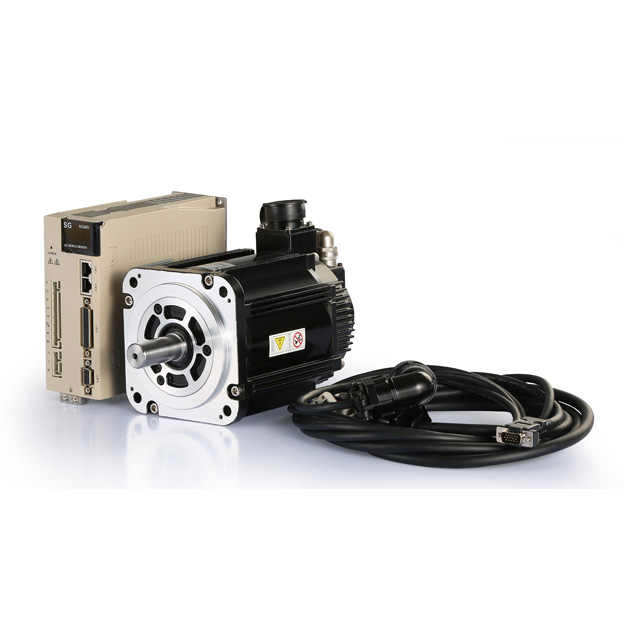

China popular servo motor and driver 380v 28n.m 1500rpm cnc kit AC servo motor with driver
Hits: 378
Price: 380.00Dolla/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Expiry: Long-term
Update date 2023-02-15 15:17

Detail

Overview

Essential details

  • Warranty:

  • 3months-1year

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • XINYUHAI

  • Model Number:

  • 180SY-M280155S1H

  • Type:

  • SERVO MOTOR

  • Frequency:

  • 50/60Hz

  • Phase:

  • Three-phase

  • Protect Feature:

  • IP65

  • AC Voltage:

  • 380V

  • Efficiency:

  • IE 4

  • Number of pole pairs:

  • 5

  • Encoder Brand:

  • Tamagawa(From Japan)

  • Output Power:

  • 4.4Kw

  • install:

  • Flange mountiong

  • Insuation resistance:

  • DC500v ,10M above

  • environment temperature:

  • 0 °C - 55 °C

  • Vibration:under:

  • 2.5G

  • Insuation and voltage resistance:

  • AC1500V,1minute

  • Voltage:

  • 380v

  • Certification:

  • CE, ISO

Supply Ability

  • Supply Ability

  • 10000 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • Cartons or wooden box

  • Port

    • NINGBO or SHANGHAI

  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(pieces)1 - 10>10
    Lead time (days)7To be negotiated

China popular servo motor and driver 380v 28n.m 1500rpm cnc kit AC servo motor with driver

Motor Model

  180SY-

M15015    S1H-3

180SY-

M18015

S1H-3

 180SY-

M28015 S1H-3

180SY-M35015

S1H-3

180SY-

M18015

S1H

180SY-

M28015

S1H

180SY-M35015S1H

  180SY-

 M48015       S1H

Rated Power(Kw)

2.3

2.8

4.4

5.5

2.8

4.4

5.5

7.5

Rated Torque(N.m)

15

18

28

35

18

28

35

48

Max Torque(N.m)

45

54

84

105

39.6

47.6

59.5

81.6

Rated  Speed(Rpm)

1500

1500

1500

1500

1500

1500

1500

1500

Max Speed(Rpm)

3500

3500

3500

3500

2500

2100

2100

     2100

Rated Current(A)

9.7

10.8

16

21

8.6

11.2

13

18

Rotor Inertia(Kg.㎡)

2.9*10-3

4.6*10-3

6.8*10-3

8.9*10-3

4.6*10-3

6.8*10-3

8.9*10-3

12.5*10-3

Motor Weight(Kg)

12.9

14.5

19.1

24

14.5

   19.1

24

30.5

Due to the limited size of the table,not all model parameters are listed,we supply different type and size,for more information,please contact us,also we can customized as your requirement

Compare to Panasonic , Mistubishi , Fanuc and delta brand motor driver. our goods with big advantage in price while the quality is not bad ,especially the motor !
