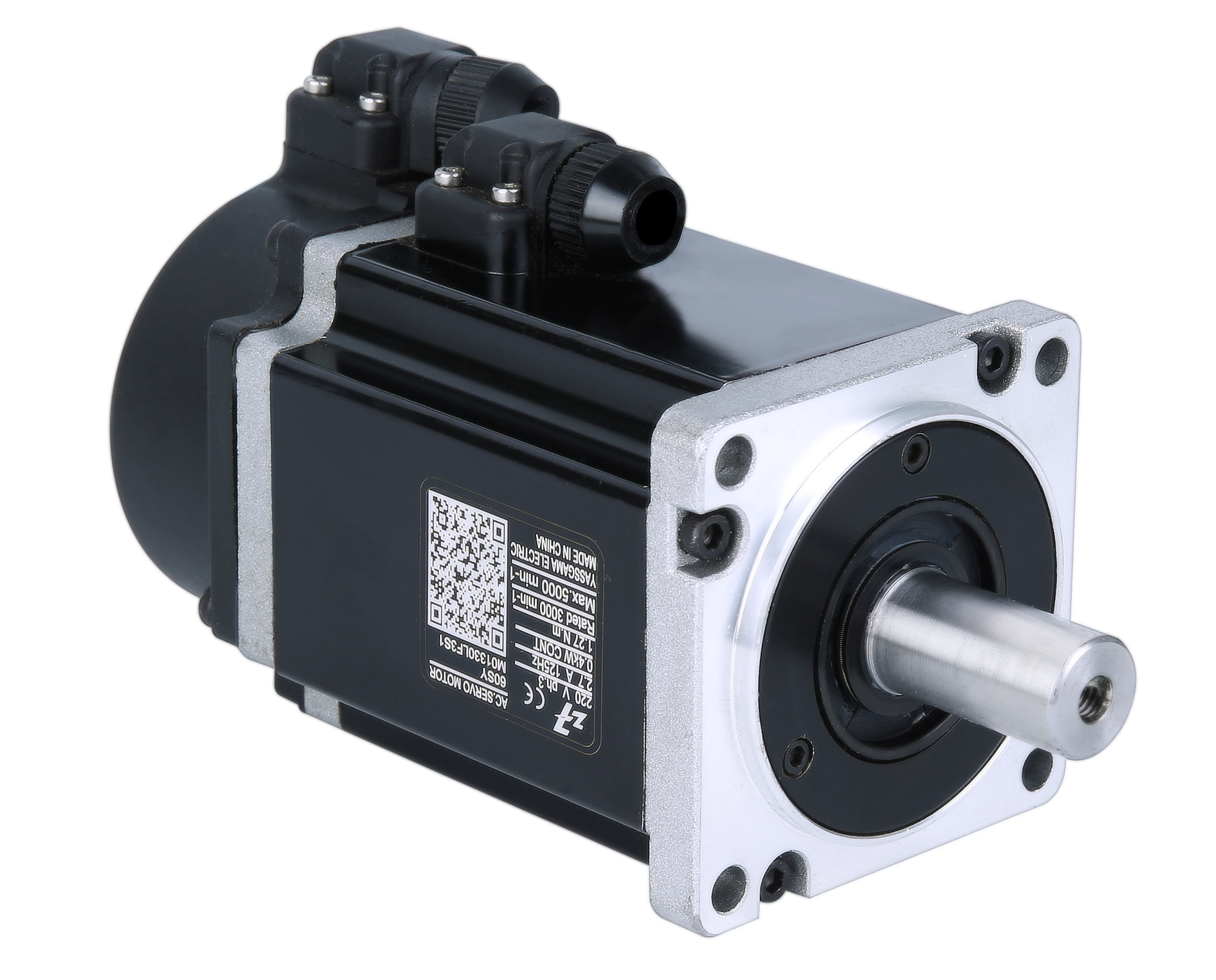

Servo motor for cnc milling machine 220V 3000RPM AC Servo Motor Matched Driver
Hits: 386
Price: 69.99Dolla/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Expiry: Long-term
Update date 2023-02-15 15:19

Detail

Overview

Essential details

  • Warranty:

  • 3months-1year

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • XINYUHAI

  • Model Number:

  • 60SY-M00630S1-5

  • Type:

  • SERVO MOTOR

  • Frequency:

  • 50/60Hz

  • Phase:

  • Three-phase

  • Protect Feature:

  • IP65

  • AC Voltage:

  • 220V

  • Efficiency:

  • IE 4

  • Number of pole pairs:

  • 5

  • Encoder Brand:

  • Tamagawa(From Japan)

  • Output Power:

  • 200w

  • installation method:

  • Flange installation

  • Insuation resistance:

  • DC500v ,10M above

  • environment temperature:

  • 0 °C - 55 °C

  • Vibration:under:

  • 2.5G

  • Insuation and voltage resistance:

  • AC1500V,1minute

  • Voltage:

  • 220V

  • Certification:

  • CE, ISO

Supply Ability

  • Supply Ability

  • 10000 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • Cartons or wooden box

  • Port

    • NINGBO or SHANGHAI

  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(pieces)1 - 10>10
    Lead time (days)5To be negotiated

Servo Motor for cnc milling machine 220V 3000RPM AC Servo Motor Matched Driver

Motor Model

60SY-M00630S1

60SY-M01330S1

60SY-M01930

Rated Power(w)

200

400

600

Rated Torque(N.m)

0.637

1.27

1.91

Max Torque(N.m)

1.91

3.81

5.4

Rated Speed(Rpm)

3000

3000

3000

Max Speed(Rpm)

5000

5000

5000

Rated Current(A)

1.35

2.7

3.5

Rotor Inertia(Kg.㎡)

0.245*10-4

0.418*10-4

0.65*10-4

Motor Weight(Kg)

0.85

1.3

1.65

Due to the limited size of the table,not all model parameters are listed,we supply different type and size,for more information,please contact us,also we can customized as your requirement

Compare to Panasonic , Mistubishi , Fanuc and delta brand motor driver. our goods with big advantage in price while the quality is not bad ,especially the motor !
