Home > Sell > China made 220V 1.59N.M 500W 3000RPM 80SY-M01630S1 Motor Set AC Servo Motor With Drive
China made 220V 1.59N.M 500W 3000RPM 80SY-M01630S1 Motor Set AC Servo Motor With Drive
Hits: 384
Price: 500.00Dolla/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Expiry: Long-term
Update date 2023-02-15 15:20

Detail

Overview

Essential details

  • Warranty:

  • 3months-1year

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • XINYUHAI

  • Model Number:

  • 80SY-M01630S1

  • Type:

  • SERVO MOTOR

  • Frequency:

  • 50/60Hz

  • Phase:

  • Three-phase

  • Protect Feature:

  • IP65

  • AC Voltage:

  • 220V

  • Efficiency:

  • IE 4

  • Number of pole pairs:

  • 5

  • Encoder Brand:

  • Tamagawa(From Japan)

  • Output Power:

  • 500w

  • install:

  • Flange mountiong

  • Insuation resistance:

  • DC500v ,10M above

  • environment temperature:

  • 0 °C - 55 °C

  • Vibration:under:

  • 2.5G

  • Insuation and voltage resistance:

  • AC1500V,1minute

  • Voltage:

  • 220v

  • Certification:

  • CE, ISO

Supply Ability

  • Supply Ability

  • 10000 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • Cartons or wooden box

  • Port

    • NINGBO or SHANGHAI

  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(pieces)1 - 1011 - 100>100
    Lead time (days)515To be negotiated

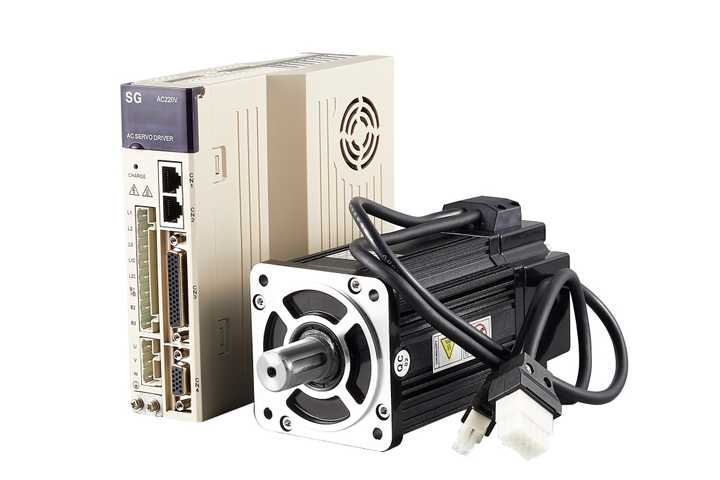

China made 220V 1.59N.M 500W 3000RPM

80SY-M01630S1 Motor Set AC Servo Motor With Drive

Motor Model

    80SY-M

 01630S1-5

    80SY-

M01630S1

80SY-M

02430S1-5

    80SY-M02430S1

     80SY-M

   03230S1-5

    80SY-M03230S1

Rated Power(W)

500

500

750

750

1000

1000

Rated Torque(N.m)

1.59

1.59

2.39

2.39

3.19

3.19

Max Torque(N.m)

4.77

4.77

7.17

7.17

9.54

9.54

Rated Speed(Rpm)

3000

3000

3000

3000

3000

3000

Max Speed(Rpm)

5000

3600

5000

3600

5000

      3600

Rated Current(A)

3.3

2.5

4.7

3.5

6.0

4.6

Rotor Inertia(Kg.㎡)

0.8*10-4

1.5*10-4

2.2*10-4

Motor Weight(Kg)

2.6

2.15

2.95

2.55

3.65

3.25

1. High level of integration

2. Fast response
3. Protect perfectly
4. High reliability
Yaskawa Sigma-7 type driver

Pls contact me for more details about the servo motor and driver !
We have tamagawa incremental 2500PPR /5000PPR and absolute 17BITS /23BITS/25BITS !

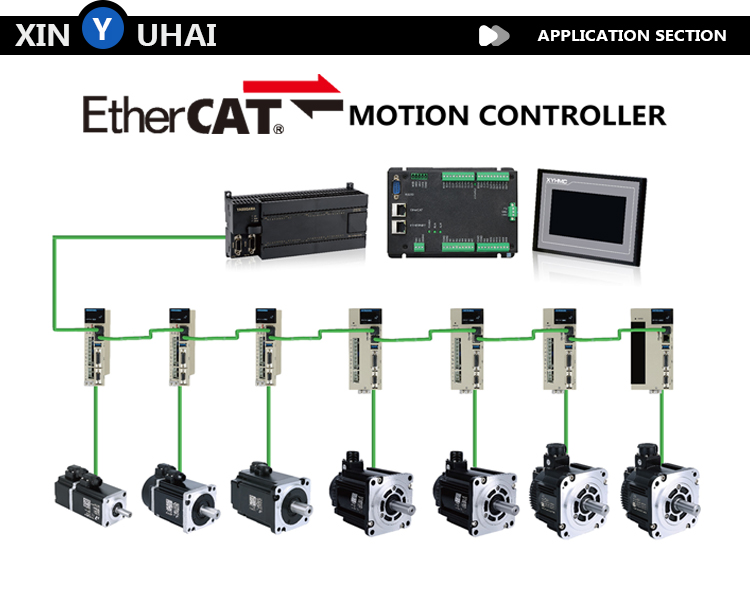

STANDARD MODEL: Support Modbus RS485 Pulse signal ( Optional Analog / CANOPEN / EtherCAT /YASKAWA M ll / YASKAWA M Ⅲ）
