Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
Julante
Model Number:
Y2-90L-2
Type:
Asynchronous Motor
Frequency:
50HZ
Phase:
Three-phase
Protect Feature:
Totally Enclosed
AC Voltage:
460 / 480 V
Efficiency:
IE 1
Certification:
CCC, ce, ISO9001
Produce Name:
simo 3 phase asynchronous motor 2.2kw
Pole:
2P
Wire:
Copper wire
Insulation class:
Class B/ Class F
Protection class:
IP44/IP54
Installation:
B3/B5/B14
Material of body:
Cast iron or Aluminum are avalible
Colour:
Bule/ Grey, customized is also avaliable
Size:
340*250*195mm
Supply Ability
Supply Ability
5000 Piece/Pieces per Month
Packaging & delivery
Packaging Details
simo 3 phase asynchronous motor 2.2kw
1. Packaged in strong carton
2. Individual packged size:400*313*265mm
Port
Ningbo or Shanghai
Products Description
Product Information

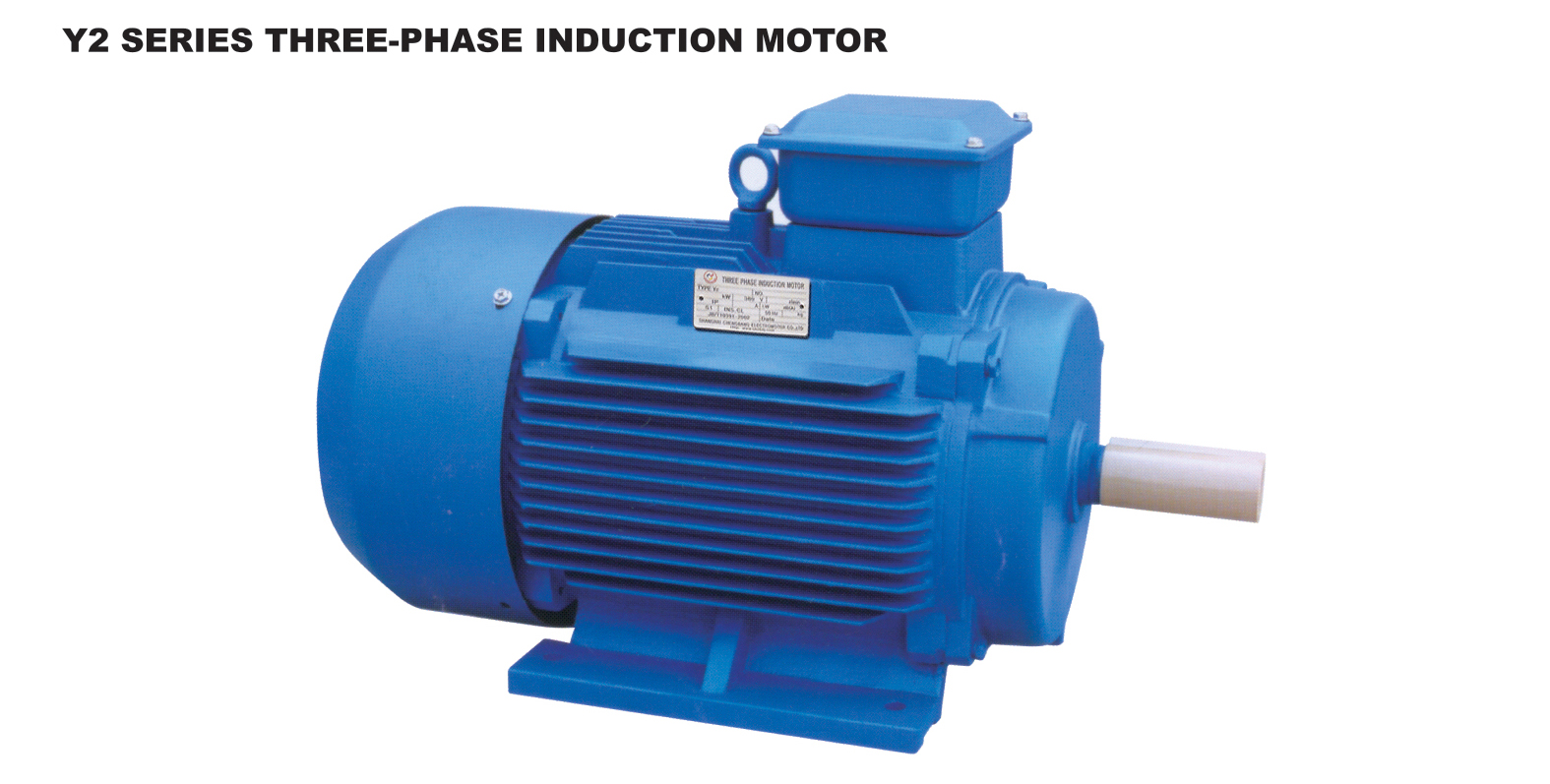

Y2 Series motors are totally enclosed fan cooled(TEFC).squirrel cage three-phase induction motors,developed with new technique They are renewal and upgrading products of Yseries The mounting dimension is fully comformed with IEC standard . The motors have the merits of beautiful modeling .compact structure ,low noise,high efficency,large staring torque,easy serving,etc The motors are adopted with F class insulation and designed with assessing method for insulation practice.it enhances greatly motor's safety and reliability.These motors have reached an international advandced level Y2 series motors can be widely used in varions machines and eqnipments.such as drilling machines,blowers ,pumps, compressors,transporters,agricultural and food processing machines
Product Detailes

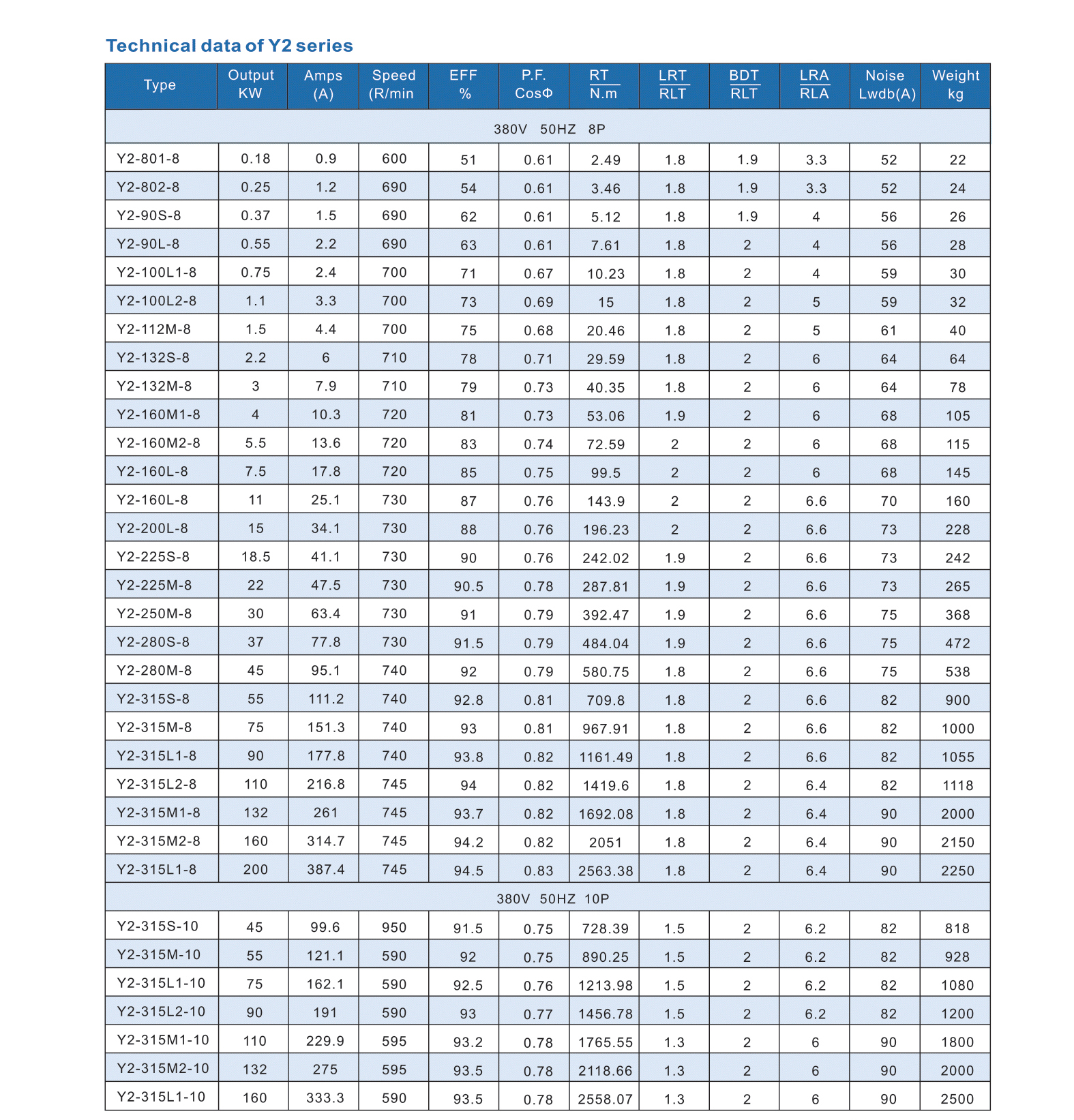

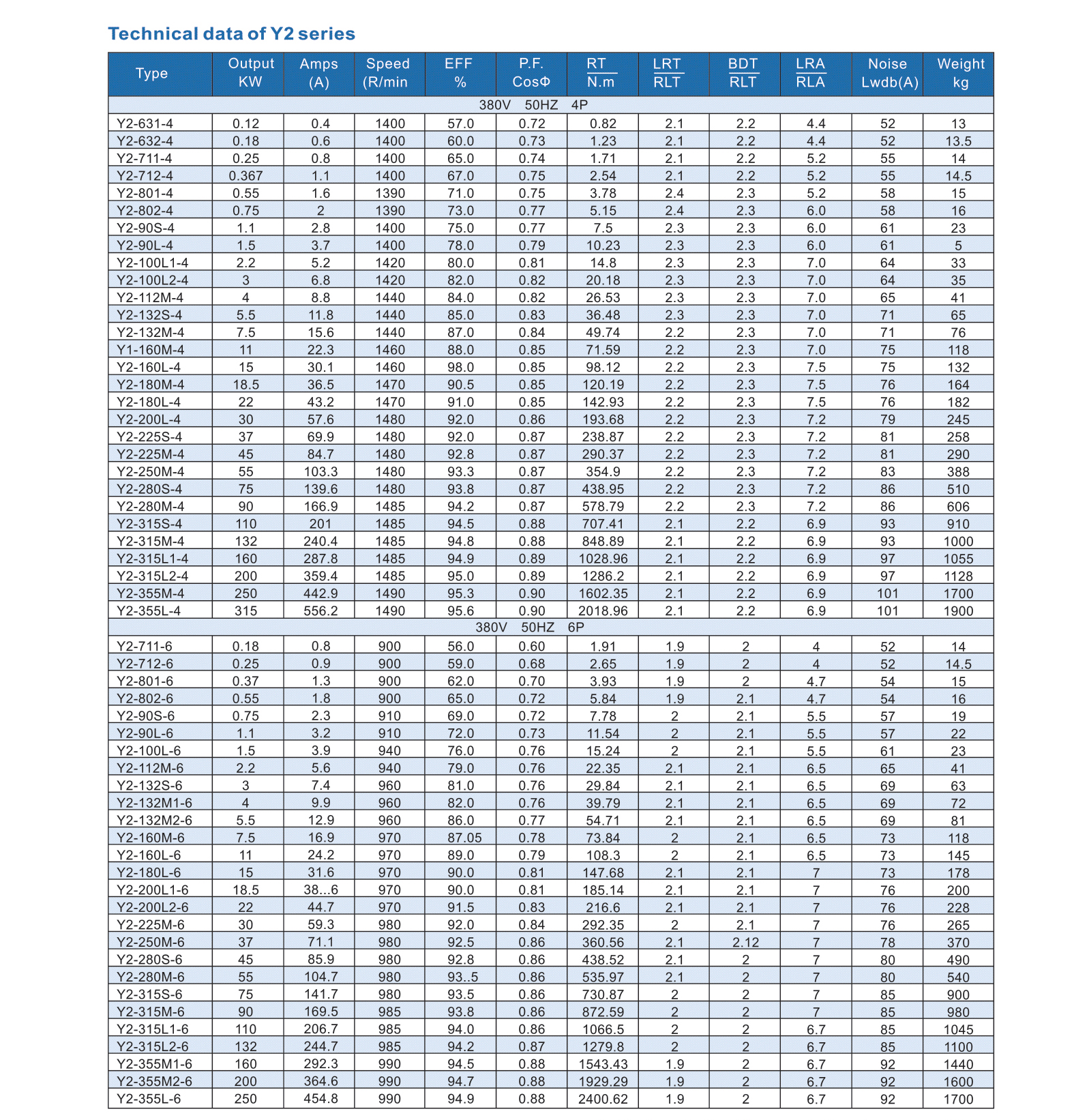

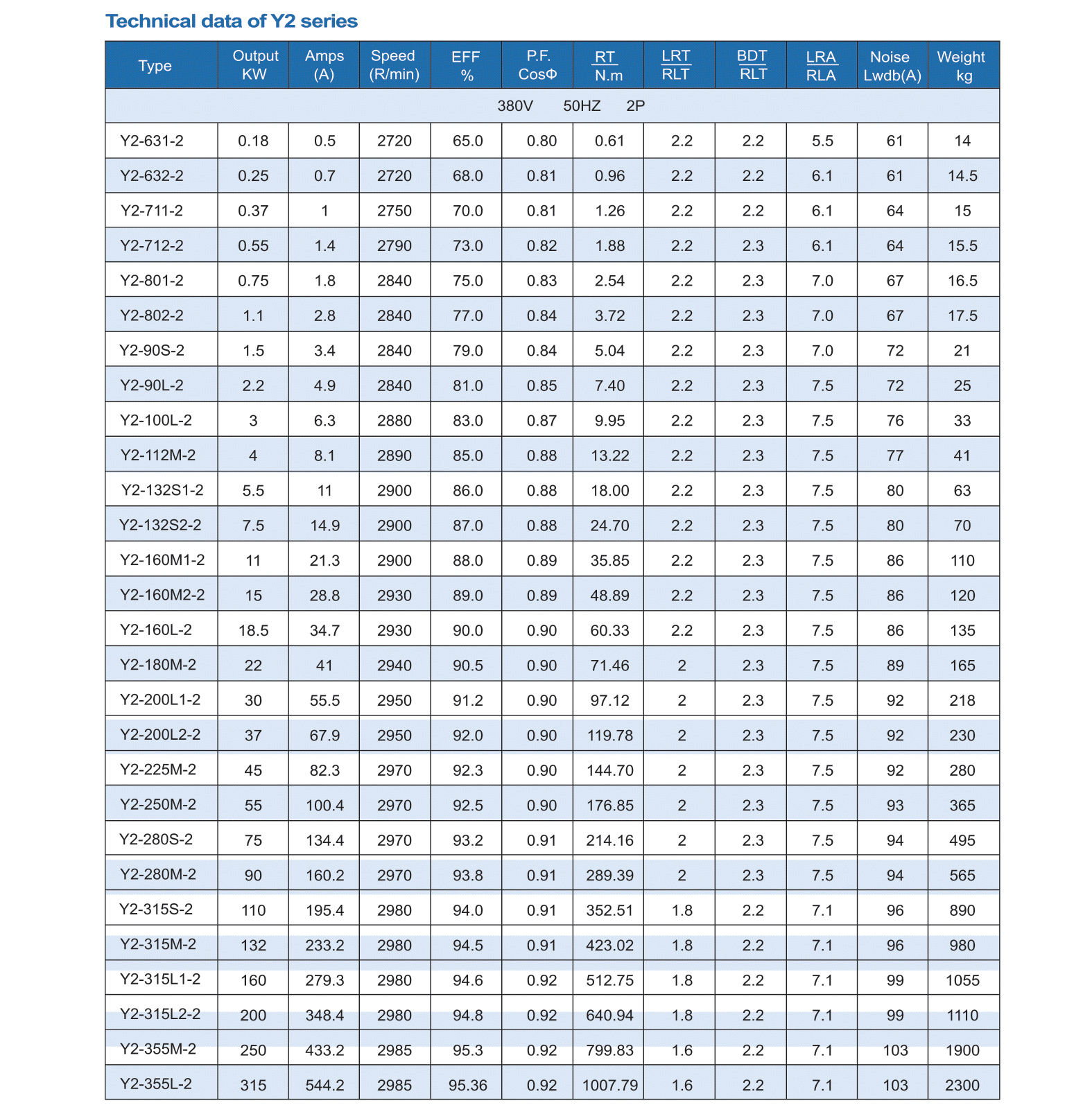

Product Parameters
Why Choose Us
