Overview
Essential details
Warranty:
3months-1year
Place of Origin:
Zhejiang, China
Brand Name:
JULANTE
Model Number:
YC
Type:
Induction Motor
Frequency:
50HZ/60HZ
Phase:
Single-phase
Protect Feature:
Totally Enclosed
AC Voltage:
220V
Efficiency:
IE1 / IE2
color:
blue /yellow/red/customize
ambitent temperature:
-15℃≤0≤40℃
altitude:
not exceeding 1000m
duty:
S1
insulation class:
B/F
protection class:
IP54/IP55
cooling type:
IC0141
apply machines and eqnipments:
drilling machines ,blowers , pumps and so on
type:
YC series single phase induction motor
brand:
julante and OEM
Packaging & delivery
Picture Example:
Lead time:
Quantity(pieces) 1 - 20 >20 Lead time (days) 30 To be negotiated
Video Description
Product Overview

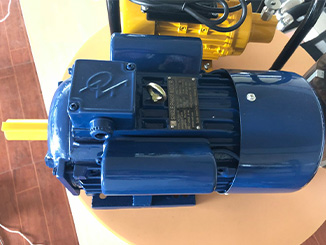

Single Phase Motor
single phase starting capacity induction motor, it is suitable for small size machine tools and water pumps, especially suitable
for family workshops where only single-phase power be supplied. This series motors are designed with the latest technology,
manufactured with the quality materials, have following features: good performance, safe and reliable operation, nice appearance,
convenient maintenance, meet the IEC standards.
FEATURES AT A GLANCE
Single Phase Electric Motors power range cover 0.25HP-10HP, Single-phase motor refers to an asynchronous motor that is powered by
a 220V AC single-phase power supply. Because 220V power supply is very convenient and economical, and household life uses 220V,
single-phase motors are not only used in large quantities in production, but also closely related to people's daily lives. In
production, it is used in mini pumps, refiners, threshers, shredders, woodworking machinery, medical equipment, etc. In life, it
is used in electric fans, hair dryers, exhaust fans, washing machines, refrigerators, etc.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
