Taizhou Julante Electromechanical Technology Co., Ltd.

Asynchronous motor

Home > Sell > 3 phase asynchronous motor 7.5 kw 380V 50hz 1440 rpm 10 hp engine electric motor price for concrete
3 phase asynchronous motor 7.5 kw 380V 50hz 1440 rpm 10 hp engine electric motor price for concrete
Hits: 115
Price: 158.85Dolla/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Expiry: Long-term
Update date 2023-02-16 14:56

Detail

Overview

Essential details

  • Warranty:

  • 3months-1year

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • Julante

  • Model Number:

  • YE3A

  • Type:

  • Induction Motor

  • Frequency:

  • 50hz

  • Phase:

  • Three-phase

  • Protect Feature:

  • Totally Enclosed

  • AC Voltage:

  • 380V

  • Efficiency:

  • IE 2

  • Certification:

  • CCC

Packaging & delivery

  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(pieces)1 - 10>10
    Lead time (days)10To be negotiated

Product Description

YE3 series three-phase asynchronous motors meet YE3 energyefficiency level in IEC60034-30:2008 standard. YE3 series three-phase asynchronous motors are installed in accordance with  IEC60034 standard.They have the advantages of reasonable structure,beautiful appearance,low noise,high protection level and high insulation level They can be widely used in fans,pumps,machine tools,compressors,transport machinery and other general mechanical equipment.They can also be used in petroleum.chemical,iron and steel,mines and other places where the environment is harsh.

Specifications

Rated voltage:380V

Power: 0.75KW-250KW

Rotating speed:2p、4p、6p

Weight: 19KG-2092KG

Duty/Rating:IP55

Insulation class: F

Cooling type:IC0041

Protection class: S1

Ambient temperature:-15℃~+40℃

Energy efficiency: 2

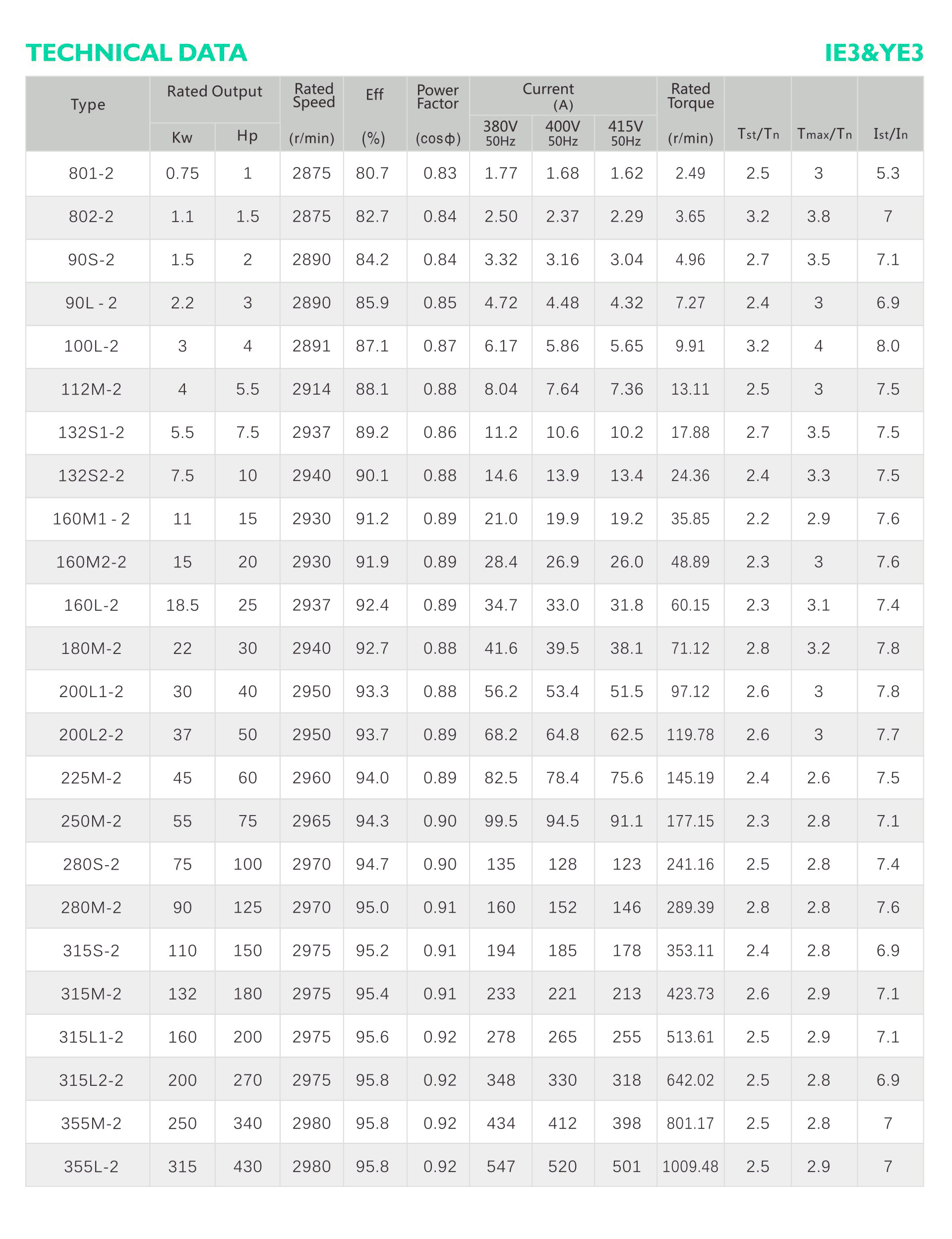

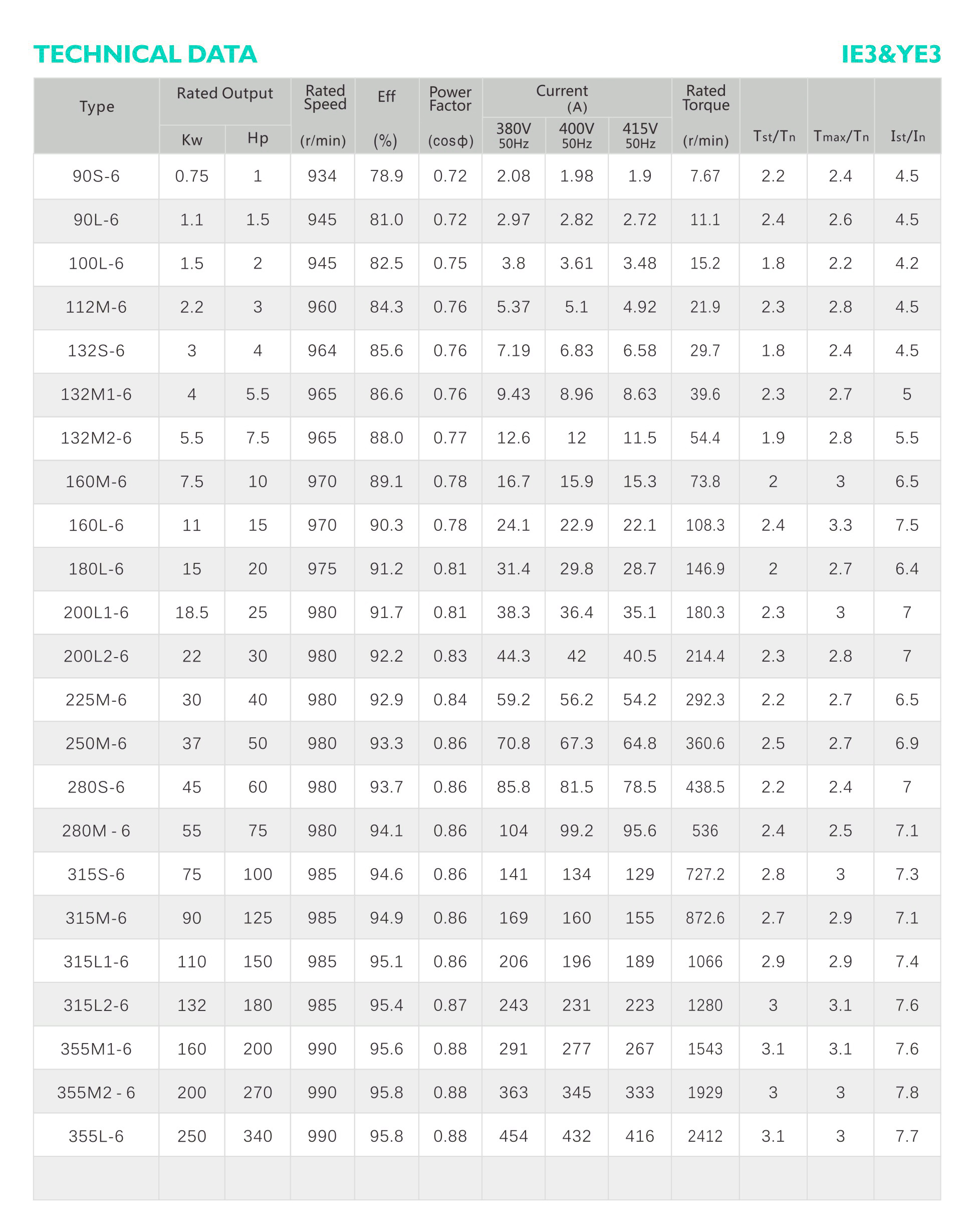

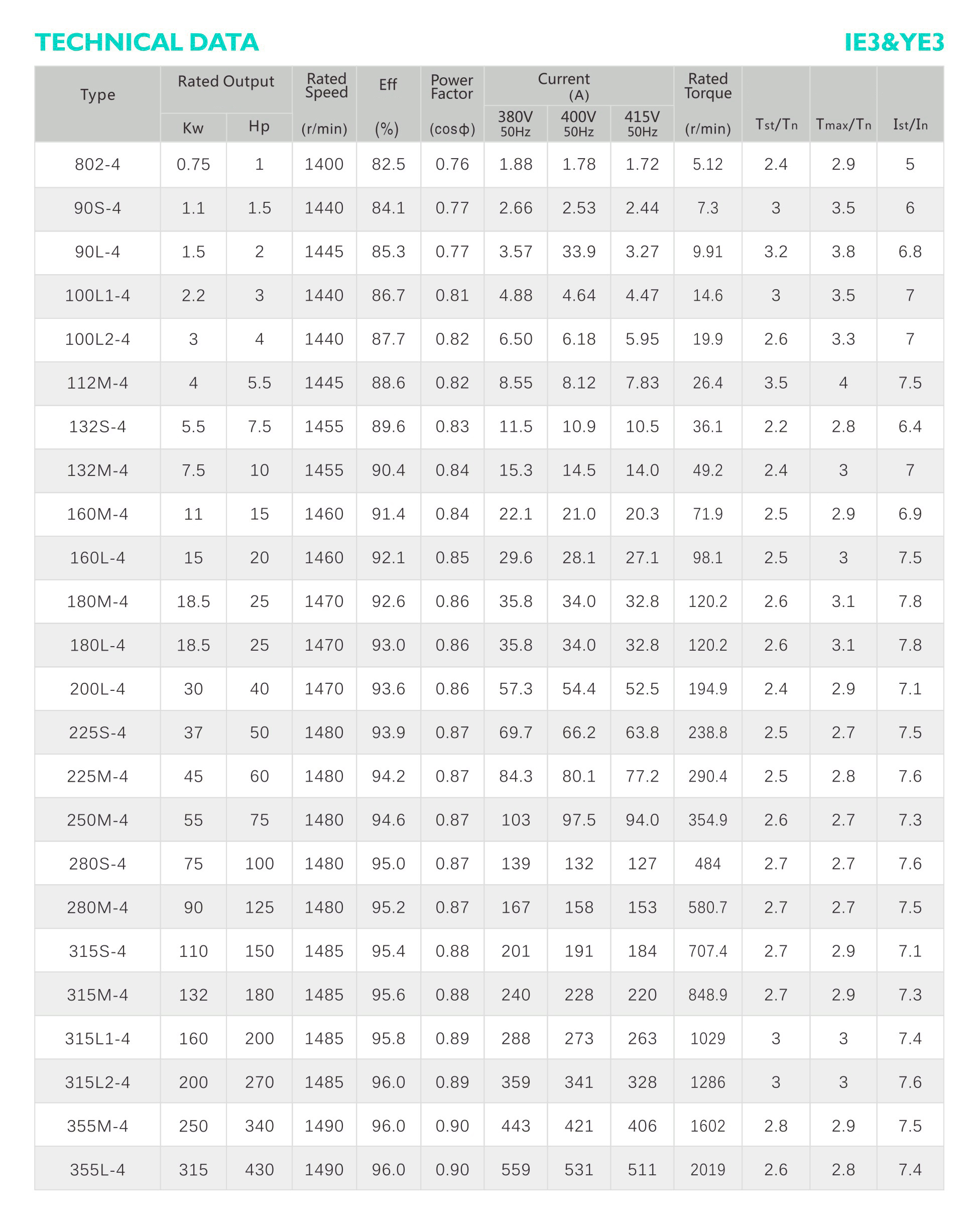

Product Parameters
