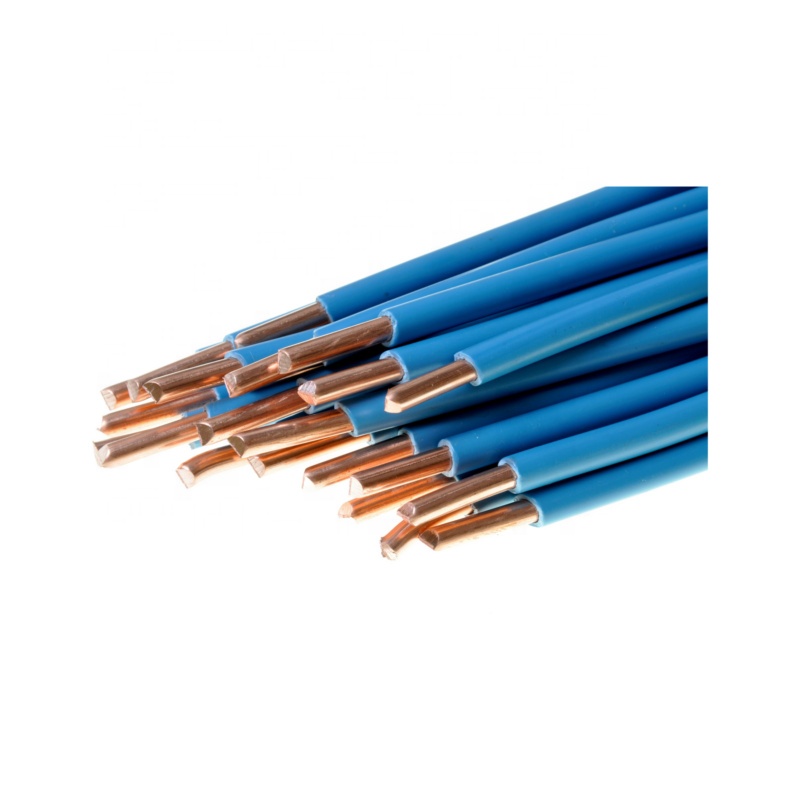

•Application:
Cables are suitable for laying in the pipe also can be laid in the open or in the embedded casing do not allow direct installation in cable tray,construction or container
Suitable for unstallation inside the instrument,and lighting,drying room,production equipment,protection laying og switchgear
•Performance:
Operating voltage:300/500V 450/750v
Insulation resistance:10 Gohm x cm
InMinimum bend radius:15 x cable diameter
Operating installation:-5℃to+80℃
Fixed installation:-40℃to+70℃
Oilresistant,flame retardant,and extension flammable:IEC 60332.1/the HD 405.2and VDE 0207-4
| Nominal section | Number of conductors | Toplimit of overall diameter | Maximum DC | Minium insulation | Recommended value of carrying capacity | Reference weight | |
| Voltage Level | (mm²) | (mm) | resistance (20℃) | resistance (20℃) | (A) | (KG,KM) | |
| (V) | (Ω/km) | (MΩ·km) | |||||
| 300/300 | 0.5 | 1 | 2.3 | 36 | 0.015 | 13 | 8.3 |
| 0.75 | 7 | 2.6 | 24.5 | 0.012 | 17 | 10.9 | |
| 0.75 | 1 | 2.7 | 24.5 | 0.014 | 17 | 11.8 | |
| 1 | 7 | 2.8 | 18.1 | 0.011 | 20 | 13.7 | |
| 1 | 1 | 3 | 18.1 | 0.013 | 20 | 14.8 | |
| 300/500 | 1.5 | 1 | 3.2 | 12.1 | 0.011 | 25 | 20 |
| 1.5 | 7 | 3.3 | 12.1 | 0.01 | 25 | 21.3 | |
| 2.5 | 1 | 3.9 | 7.41 | 0.01 | 34 | 31.5 | |
| 2.5 | 7 | 4 | 7.41 | 0.009 | 34 | 34.4 | |
| 4 | 1 | 4.4 | 4.61 | 0.0085 | 44 | 46.8 | |
| 4 | 7 | 4.6 | 4.61 | 0.0077 | 44 | 48.1 | |
| 6 | 1 | 5 | 3.08 | 0.007 | 58 | 65.1 | |
| 6 | 7 | 5.2 | 3.08 | 0.0065 | 58 | 68.8 | |
| 10 | 7 | 6.7 | 1.83 | 0.0065 | 79 | 111 | |
| 16 | 7 | 7.8 | 1.15 | 0.005 | 111 | 166 | |
| 25 | 7 | 9.7 | 0.727 | 0.005 | 146 | 263 | |
| 35 | 7 | 10.9 | 0.524 | 0.004 | 180 | 356 | |
| 50 | 19 | 12.8 | 0.387 | 0.0045 | 228 | 487 | |
| 70 | 19 | 14.6 | 0.268 | 0.0035 | 281 | 679 | |
| 95 | 19 | 17.1 | 0.193 | 0.0035 | 344 | 932 | |
| 120 | 37 | 18.8 | 0.153 | 0.0032 | 397 | 1163 | |
| 150 | 37 | 20.9 | 0.124 | 0.0032 | 456 | 1424 | |
| 185 | 37 | 23.3 | 0.0991 | 0.0032 | 519 | 1789 | |
| 240 | 61 | 26.6 | 0.0754 | 0.0032 | 592 | 2335 | |
| 300 | 61 | 29.6 | 0.0601 | 0.003 | 685 | 2924 | |
| 400 | 61 | 33.2 | 0.047 | 0.0028 | 799 | 3750 |
