Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
YEM061AL
Display Type:
Digital Only
Phase:
Three Phase
Measuring Energy Range:
0-999999.9kWh
Accuracy Class:
Class1.0
Output Voltage:
3x127V/220V, 3x230V/400V
Operating Temperature:
-20℃~ 70℃
Dimensions:
262x172x81 mm
Rated Current:
5(30)A 10(60)A 20(100)A
Starting Current:
0.02A 0.04A 0.08A
Material of case:
PC (Poly Carbonate)
Installation:
35mm Standard DIN Rail
Connection Mode:
Directly/ CT/ CT & PT
Frequency:
50HZ/60HZ
Tariffs:
Six Tariffs
Standard:
IEC62053-21
Certificates:
CE, RoHS, ISO9001
Communication:
RS485, Far Infrared
Supply Ability
Supply Ability
20000 Piece/Pieces per Month
Packaging & delivery
Packaging Details
1. Packing: Transparent polybag, paper box or foam box, carton or pallet.
2. CTN Size: 31*30*36CM.
3. CTN Weight: 10.06 KGS.
4. Packing Number for One Carton: 4 PCS/CTN
Port
Ningbo/ Shanghai
Lead time:
3 days after order /confirm/iation

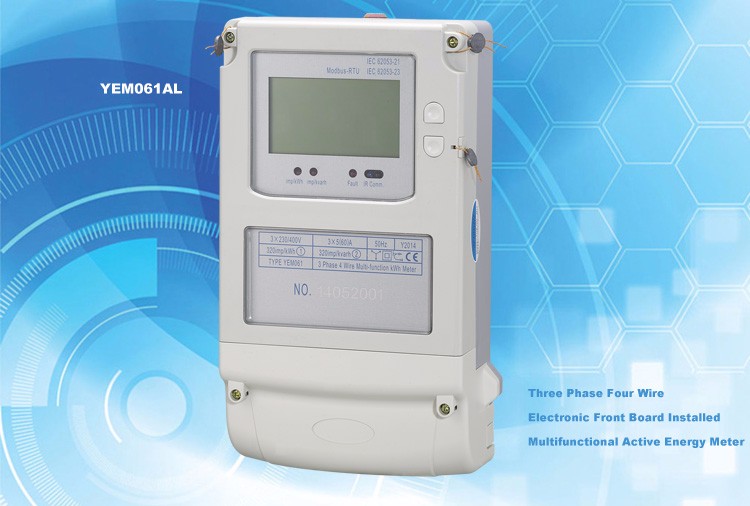

Three Phase Energy Meter
