Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
YEM 024SJ-N
Display Type:
Digital Only
Phase:
Three Phase
Measuring Energy Range:
5(30)A,10(60)A,20(100)A
Accuracy Class:
CLASS 1.0
Output Voltage:
AC100V/220V/380V
Operating Temperature:
-20℃~+70℃
Dimensions:
72*98*63mm
Storage Temperature:
-40℃~70℃
Tariff:
single tariff
Protection Degree:
IP54
Frequency:
50Hz/60HZ
Other Name:
Three Phase Energy Meter
Type:
Din Rail Energy Meter
Display:
LCD Display
Name:
Din rail digital energy meter
Certificate:
CE ROHS ISO9001
Standard:
IEC62053-21
Supply Ability
Supply Ability
10000 Piece/Pieces per Month for Energy Meter
Packaging & delivery
Packaging Details
1. Packing: Transparent polybag, paper box or foam box, carton or pallet.
2. CTN Size: 31*30*36CM.
3. CTN Weight: 17.04 KGS.
4. Packing Number for One Carton: 24PCS/CTN
Port
SHANGHAI/NINGBO for ELECTROIC METER

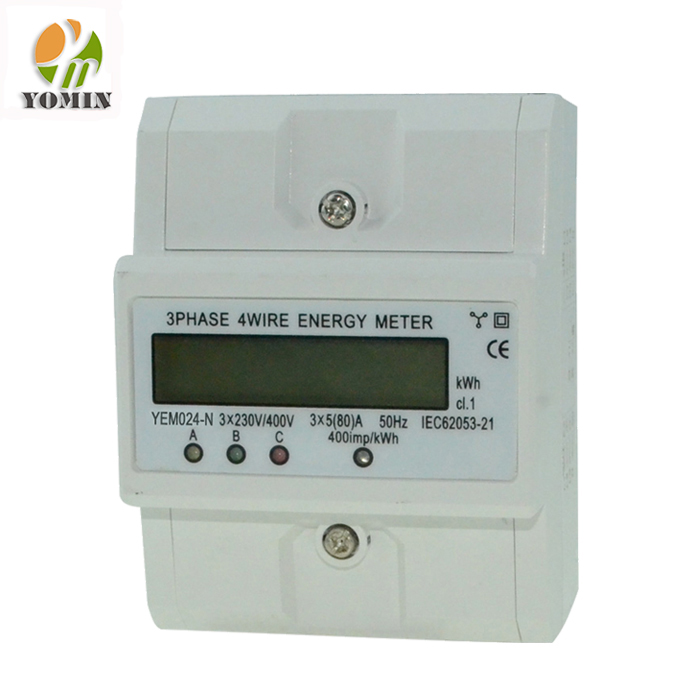

New Type Three Phase Din Rail Digital Electric Smart Power Energy Meter/Kwh Energy Meter
Technical Parameters
| Model | Accuracy | Frequency | Dimension | Connection Mode |
| YEM024SJ-N | 1.0 | 50/60HZ | 88x75x73mm | Directly/CT/CT&PT |
| Rated Voltage | Rated Current | Starting Current | Display Mode | Insulation Performance |
| 3x127V/220V, 3x230V/400V | 5(80)A 10(60)A 20(100)A | 0.02A, 0.04A, 0.08A | LCD 6+1 | AC voltage 4kv for 1 minute,1.2/50us wavefrom impulse voltage 6kv |
Dimension
1 Where is your factory?
Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.
2 Are you manufacturer or business?
We are manufacturer established in 2002, and have over 16 years production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
18 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales.
6. How about the MOQ, Payment term, Delivery port, and shipping date?
1)MOQ: 100 pcs/item based on existing packing.
2)T/T-30% deposit and 70% against copy of BL
3)L/C is also acceptable
4)Ningbo/Shanghai
