Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
YEM011TG
Display Type:
Digital Only
Phase:
Single Phase
Measuring Energy Range:
0-99999.9kWh
Accuracy Class:
Class1.0
Output Voltage:
127V,230V
Operating Temperature:
-20℃~ 70℃
Dimensions:
88x75x73 mm
Rated Current:
5(30)A 10(50)A 20(100)A
Starting Current:
0.02A 0.04A 0.08A
Material of case:
PC (Poly Carbonate)
Installation:
35mm Standard DIN Rail
Connection Mode:
Directly
Frequency:
50HZ/60HZ
Color:
White
Style:
Customized Design
Certificates:
CE,RoHS,ISO9001
OEM:
Avaliable
Supply Ability
Supply Ability
20000 Piece/Pieces per Month din rail YEM011TG
Packaging & delivery
Packaging Details
1. Packing: Transparent polybag, paper box or foam box, carton or pallet.
2. CTN Size: 39*27*37CM.
3. CTN Weight: 14.24 KGS.
4. Packing Number for One Carton: 48PCS/CTN
Port
Ningbo/ Shanghai
Lead time:
shipped in 2-5 days after payment

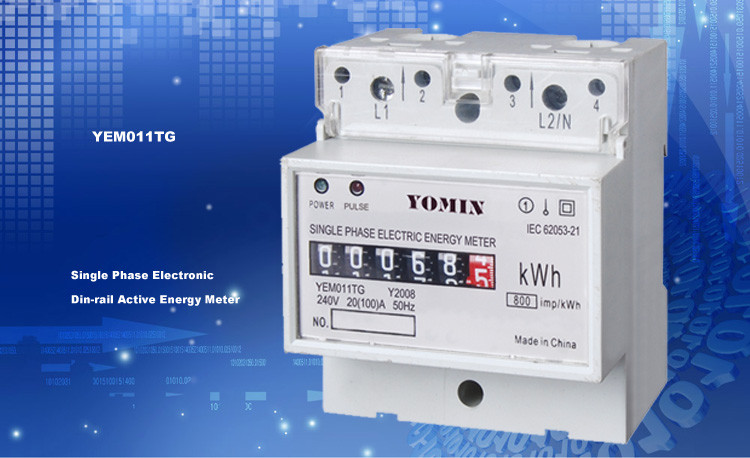

YEM011TG Single Phase Smart Power Quality Meter for Household/ Energy Management System Power Meter
Product Description
Technical Parameters
| Model | Accuracy | Frequency | Dimension | Connection Mode |
| YEM011TG | 1.0 | 50/60HZ | 88x75x73mm | Directly |
| Rated Voltage | Rated Current | Starting Current | Display Mode | Insulation Performance |
| 127 V 230 V | 5(30)A ,10(50)A, 20(100)A | 0.02A, 0.04A, 0.08A | LCD 5+1 | AC voltage 4kv for 1 minute,1.2/50us wavefrom impulse voltage 6kv |

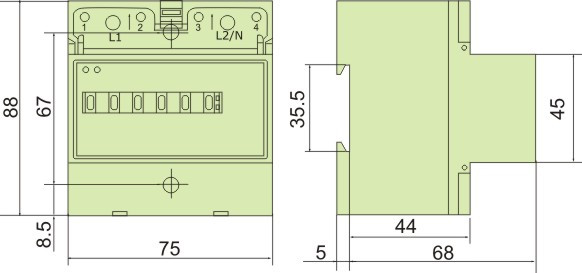

Dimension
1 Where is your factory?
Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.
2 Are you manufacturer or business?
We are manufacturer established in 2002, and have over 16 years production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
18 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales.
6. How about the MOQ, Payment term, Delivery port, and shipping date?
1)MOQ: 100 pcs/item based on existing packing.
2)T/T-30% deposit and 70% against copy of BL
3)L/C is also acceptable
4)Ningbo/Shanghai
