Yueqing Yomin Electric Co., Ltd

Overview

Essential details

• Place of Origin:

• Zhejiang, China

• Brand Name:

• YOMIN

• Model Number:

• YEM041AL

• Display Type:

• Digital Only

• Phase:

• Three Phase

• Measuring Energy Range:

• 0-999999.9kWh

• Accuracy Class:

• Class1.0

• Output Voltage:

• 3x127V/220V, 3x230V/400V

• Operating Temperature:

• -20℃~ 70℃

• Dimensions:

• 125x88x73 mm

• Rated Current:

• 5(30)A 10(60)A 20(100)A

• Starting Current:

• 0.02A 0.04A 0.08A

• Material of case:

• PC (Poly Carbonate)

• Installation:

• 35mm Standard DIN Rail

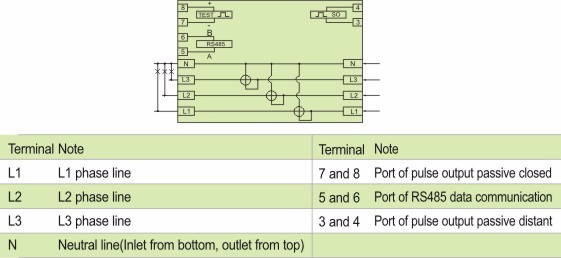

• Connection Mode:

• Directly/ CT/ CT & PT

• Frequency:

• 50HZ/60HZ

• Communication:

• RS485, Far infrared

• Standard:

• IEC62053-21

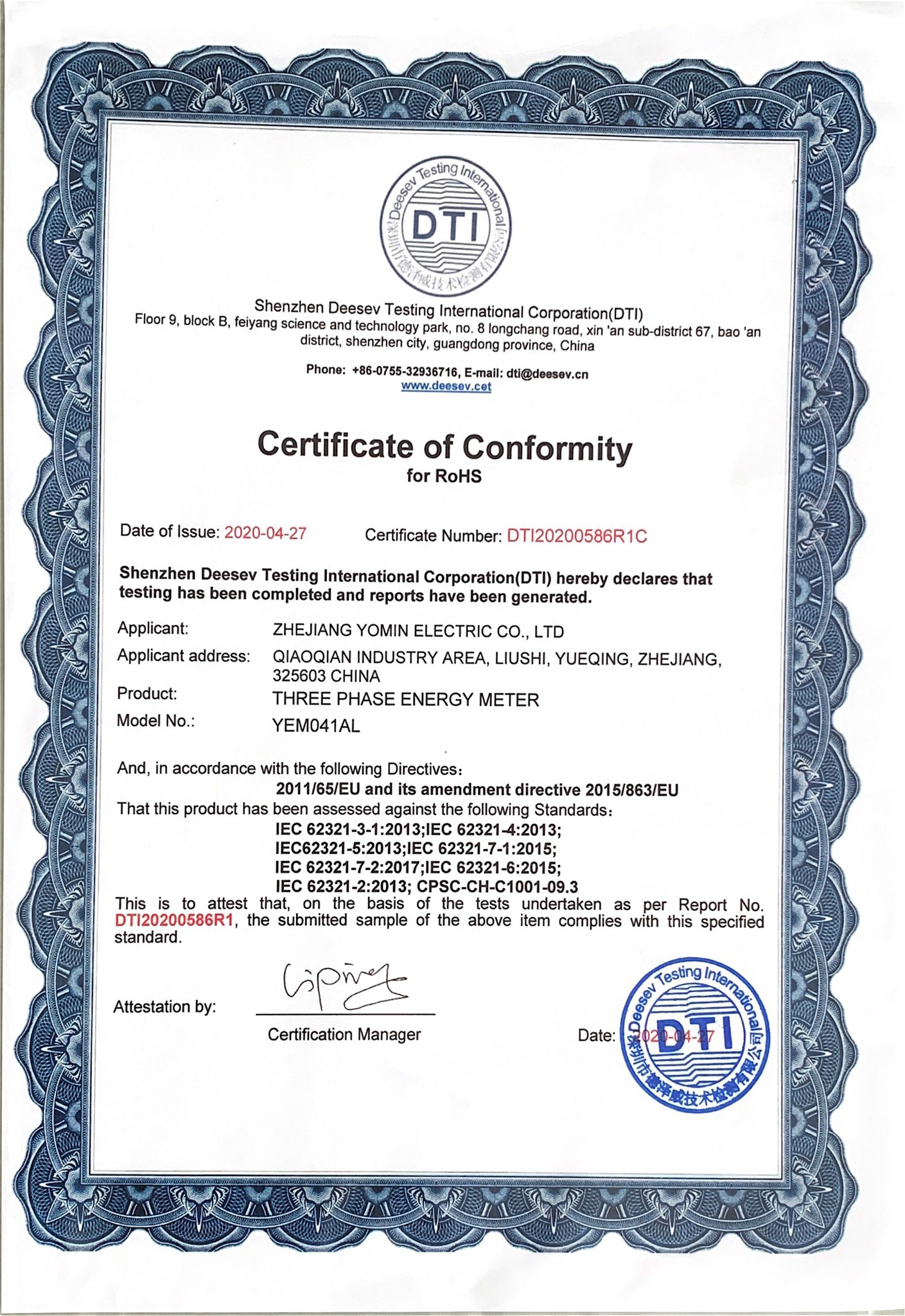

• Certificates:

• CE, RoHS, ISO9001

• Tariff:

• 3 Tariffs

Supply Ability

• Supply Ability

• 20000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

1. Packing: Transparent polybag, paper box or foam box, carton or pallet.
2. CTN Size: 31*30*36CM.
3. CTN Weight: 17.06 KGS.
4. Packing Number for One Carton: 24 PCS/CTN

• Port

Ningbo/ Shanghai

Three phase din rail multi-rate lcd multifunction electric power monitor energy meter with rs485 modbus

Technical Parameters

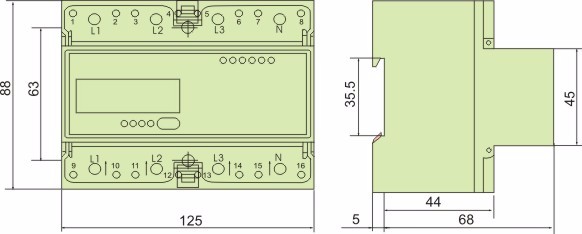

Dimension
