Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
YEM031AL
Display Type:
Digital Only
Phase:
Single Phase
Measuring Energy Range:
5(30)A ,10(50)A, 20(100)A
Accuracy Class:
1.0
Output Voltage:
127 V ,230 V
Operating Temperature:
20 ~+55
Dimensions:
88x75x73mm, Custom size acceptable
Frequency:
50-60HZ
Material:
PC (Poly Carbonate)
Usage:
Three Tariffs Active Electric Energy Measurement
Connection Mode:
Directly Connection/CT/CT&PT
Communication Mode:
Far infrared,RS485(DL/T645-1997 or Modbus-RTU )
Color:
White
Logo:
ISO9001, CE, Rosh
Certificate:
CE ROHS
Name:
KWH Meter
Standard:
IEC62053-21
Supply Ability
Supply Ability
100000 Piece/Pieces per Month
Packaging & delivery
Packaging Details
1. Packing: Transparent polybag, paper box or foam box, carton or pallet.
2. CTN Size: 31*30*36CM.
3. CTN Weight: 17.04 KGS.
4. Packing Number for One Carton: 24PCS/C
Port
Ningbo, Shanghai
Lead time:
Quantity(pieces) 1 - 10 11 - 100 >100 Lead time (days) 7 10 To be negotiated

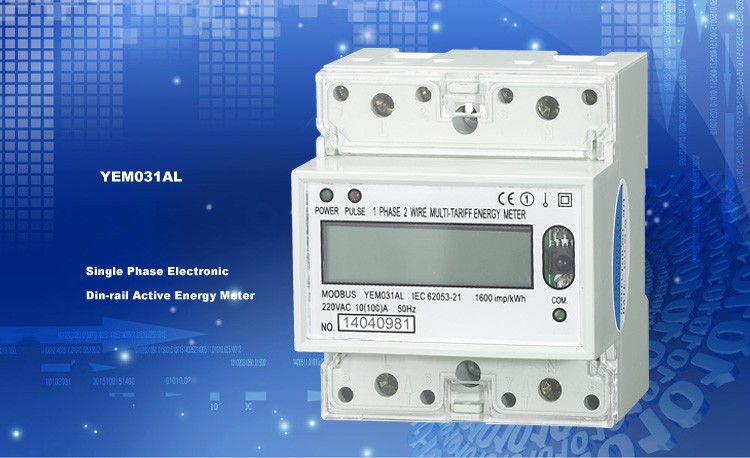

Factory Directly Smart Digital Single Phase Multi Tariff Watt Energy Meter
Technical Department
| Model | Accuracy | Frequency | Size | Material |
| YEM031AL | 1.0 | 50-60HZ | 88x75x73mm | PC |
| Reference Voltage(V) | Current Specification(A) | Staring Current(A) | Display Mode | Insulation Performence |
| 127 V ,230 V | 5(30)A ,10(50)A, 20(100)A | 0.02A,0.04A,0.08A | LCD display 14 data at most | AC voltage 4kv for 1 minute, 1.2/50us wavefrom impulse voltage 6kv |

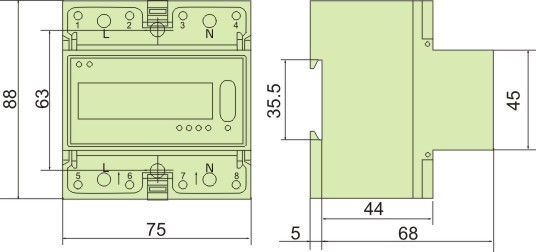

Dimension
1 Where is your factory?
Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.
2 Are you manufacturer or business?
We are manufacturer established in 2002, and have over 16 years production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
18 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales.
6. How about the MOQ, Payment term, Delivery port, and shipping date?
1)MOQ: 100 pcs/item based on existing packing.
2)T/T-30% deposit and 70% against copy of BL
3)L/C is also acceptable
4)Ningbo/Shanghai
