Overview
Essential details
Place of Origin:
Jiangsu, China
Brand Name:
THIM
Model Number:
THIM
Type:
Insulator
Material:
Composite Polymer
Application:
Composite Polymer
Rated Voltage:
66KV
Tensile Strength:
10KN
keyword:
33kv silicon rubber insulator
Supply Ability
Supply Ability
10000000 Piece/Pieces per Day
Packaging & delivery
Packaging Details
wooden case / pallet
Port
Shanghai
Lead time:
Quantity(pieces) 1 - 100 >100 Lead time (days) 15 To be negotiated

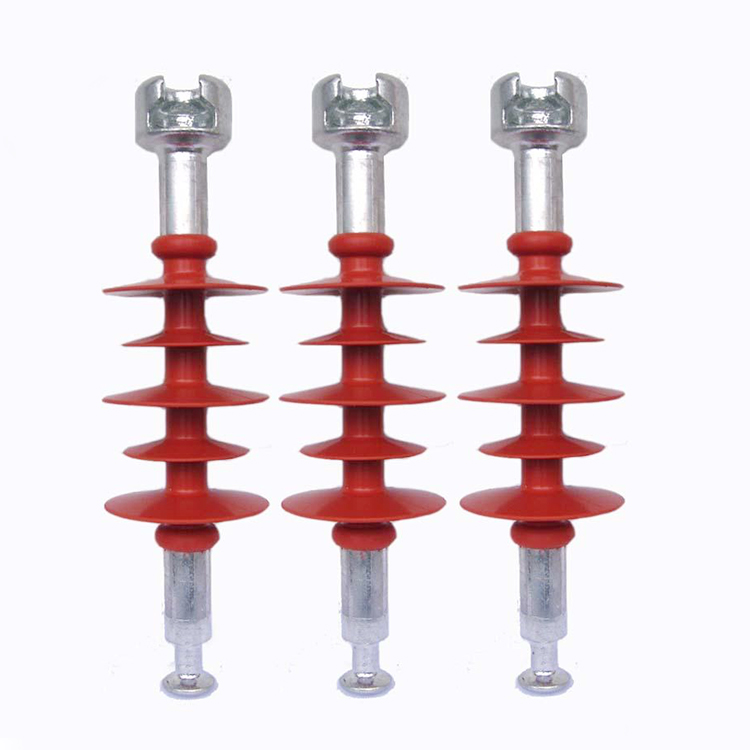

New Product 33kv silicon rubber insulator for high quality
Our main products are as follows:

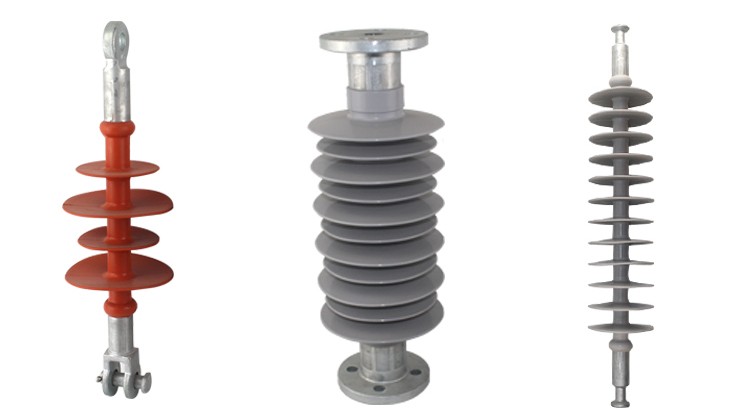

1.10kv -750kv silicone rubber insulator
2.Diam.5-180mm Insulator core rod(epoxy resin rod)
3.Many kinds of insulator fittings such as ball,socket,Tongue,Clevis,Flange and so on.
4.Silicone rubber
our website : http://thim.en.alibaba.com/
Product Description
Type | No. Of Sheds | “X” Length inches (mm) | Diameter Inches (mm) | Leakage Distance Inches (mm) | Dry Arc Distance inches (mm) | Lighting withstand voltage | Wet power frequency voltage | Coupling size | SML Pounds (kN) | |
D | d | |||||||||
FXBW-10/70 | 4 | 310 | 105 | 75 | 350 | 152 | 90 | 40 | 16 | 70 |
FXBW-36/40 | 9 | 440 | 130 | 90 | 950 | 320 | 230 | 150 | 16 | 40 |
FXBW-36/100 | 9 | 483 | 130 | 90 | 950 | 320 | 230 | 150 | 16 | 100 |
FXBW-35/70 | 12 | 660 | 135 | 110 | 1600 | 526 | 230 | 150 | 16 | 70 |
FXBW-35/100 | 12 | 680 | 135 | 110 | 1600 | 526 | 230 | 150 | 16 | 100 |
FXBW-66/70 | 20 | 980 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 70 |
FXBW-66/100 | 20 | 1000 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 100 |
FXBW-66/120 | 20 | 1040 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 120 |
FXBW-110/70 | 26 | 1190 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 70 |
FXBW-110/100 | 26 | 1210 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 100 |
FXBW-110/120 | 26 | 1250 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 120 |
FXBW-220/120 | 54 | 2470 | 150 | 120 | 6300 | 2130 | 1000 | 395 | 16 | 120 |
FXBW-220/210 | 56 | 2470 | 170 | 120 | 6300 | 2155 | 1000 | 395 | 20 | 210 |
>> see more
1. Shed connected with core by integral foring
2. The thinkness of housing > 3mm,unifirm to IEC Standard
3. Acid resistant,hight temperature resistant of epoxy fiberglass core
4. metal end fittings,core and sheds connected by new crimping process
5. Hot galvanization and technology of rareearth aluminum coating to avoid coating
shedding prolonging the service life
(1)Small volume,light weight,sheds have good elasticity,not broken,con venient
transportation and installation, economy.
(2)High mechanical strength FRP ROD has high tensile strength, small size,light
weight,high tensile strength.
(3)High antifouling property,good aging resistance performance,high anti pollution
flashover voltage , good electric corrosion resistance.
(4)Easy installation,greatly reduce mainternance charges and manual labor intensity.
(5)Simple production process,short delivery time.
>>see more

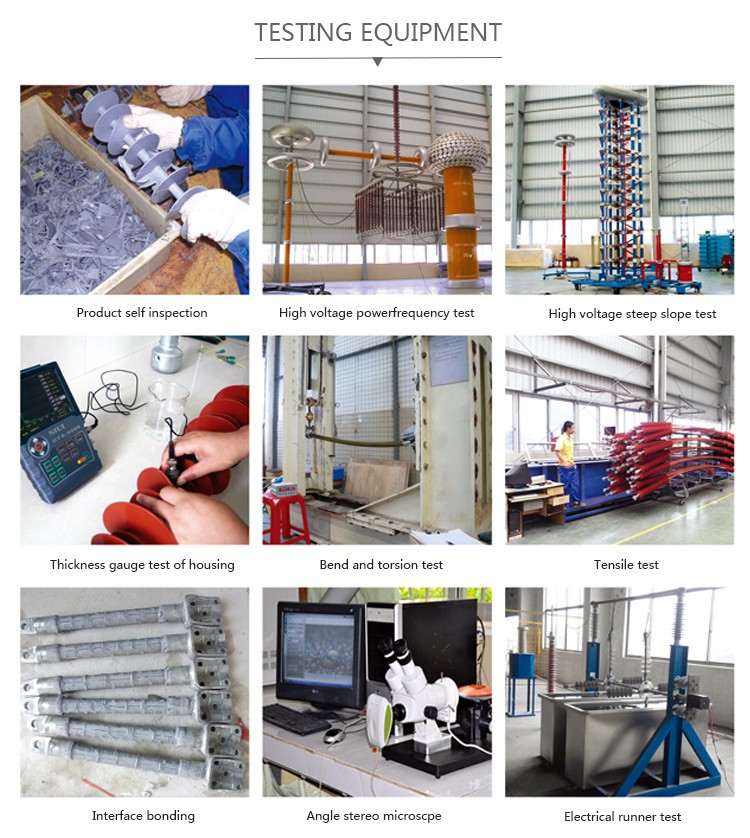

Testing Equipment
We have a strict quality assurance system,first-class production equipment and inspection
instrument,and multiple technical talented persons.The quality of our products accords with
IEC,ISO,ASTM,ANSI,GB/T,Q/G-DW,JB/T,DL etc.
