Model No | TE1250 | TE12100 | TE12200 | TE24100 | TE24200 |
Voltage | 12.8V | 12.8V | 12.8V | 25.6V | 25.6V |
Capacity | 50AH | 100AH | 200AH | 100AH | 200AH |
Energy | 0.64 kWh | 1.28 kWh | 2.56 kWh | 2.56 kWh | 5.12 kWh |
Extendable function | Bluetooth Preheat USB CAN RS485 | ||||
Max.charging and discharging current | 50A | 100A | 100A | 100A | 100A |
Max Power | 0.64kw | 1.28kw | 1.28kw | 1.28kw | 1.28kw |
Life time(25°C) | 5 years | ||||
Life cycles(80% DOD, 25°C) | 5000+ Cycles Times | ||||
Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | ||||
Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | ||||
Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | ||||
Lithium Battery Standard | U.L1642, IEC62619, UN38.3, ROHS,CE-EMC | ||||
Enclosure protection rating | IP65 | ||||

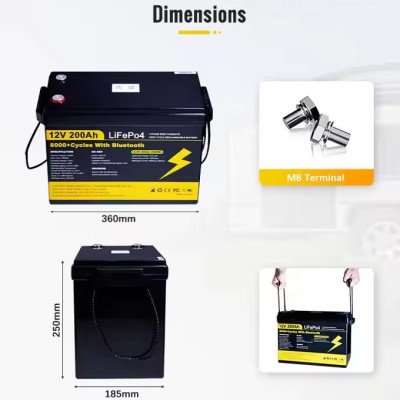

Dimensions(L×W×H)mm | 260*168*209 | 406*170*236 | 483*170*240 | 483*170*240 | 522*240*218 |
Weight | 7KG | 10KG | 20KG | 22KG | 36KG |
