Model Number:
PDA-CR85DGR
Place of Origin:
Shanghai, China
Brand Name:
LANBAO
Usage:
Mearsuring Sensor
Theory:
Laser Sensor
Output:
Digital Sensor
Description:
laser displacement measuring sensor
Name:
Switching Transducer
Type:
Displacement Sensor
product name:
Laser sensor
Warranty:
1 Year
Supply voltage:
10-30VDC
Degree of protection:
IP67
Operating temperature:
-10...+5
Material:
Aluminum
Brand:
Lanbao
Measuring range:
85±25mm
Voltage - Supply:
10-30VDC
Mounting Type:
2m cable
Package / Case:
Aluminum
Size:
laser displacement sensor
Size / Dimension:
65*51*23mm
Sensing Distance:
85mm±25mm
Supply Ability
Supply Ability
5000 Piece/Pieces per Week
Packaging & delivery
Packaging Details
Lanbao 85mm Sensor De Desplazamiento 30vdc Standard Laser Displacement Sensor
Standards packing by carton
Port
Shanghai Guangzhou Ningbo Hangzhou
Picture Example:
Lead time:
Quantity(pieces) 1 - 1000 >1000 Lead time (days) 15 To be negotiated
Lanbao 85mm Sensor De Desplazamiento 30vdc Standard Laser Displacement Sensor
Product Features
♦Exquisite appearance and light aluminum housing, easy to mount and dismount
♦Convenient operation panel with visualized OLED display to complete all function settings fastly
♦Key or remote teach-in to easily set response time for different applications
♦Powerful function setting and flexible output way
♦Complete shielded desgin, stronger anti-interference perfomance
♦IP67 protection degree, able to work in water or dusty environment
Specifications
Part number
RS-485 | PDA-CR85DGR |
4...20mA | PDA-CR85TGI |
Technical specifications
Center distance | 85mm |
Measuring range | ±25mm |
Full scale(F.S.) | 50mm |
| Supply voltage | RS-485:10...30VDC;4...20mA:12...24VDC |
| Consumption power | ≤700mW |
| Load current | 200mA |
| Voltage drop | <2.5V |
| Light source | Red laser(650nm);Laser level:Class 2 |
| Light spot | Φ0.5mm@85mm |
| Resolution | 30um@85mm |
| Linear accuracy A B | ±0.1%F.S. |
| Repeat accuracy A B C | 60um |
| Output1 | RS-485(Support Modbus protocol) |
| 4...20mA(Load resistance<390Ω) | |
| Output2 | PUSH-PULL/NPN/PNP And NO/NC Settable |
| Distance setting | RS-485:Keypress/RS-485 setting |
| 4...20mA:Keypress setting | |
| Response time | 2ms/16ms/40ms Settable |

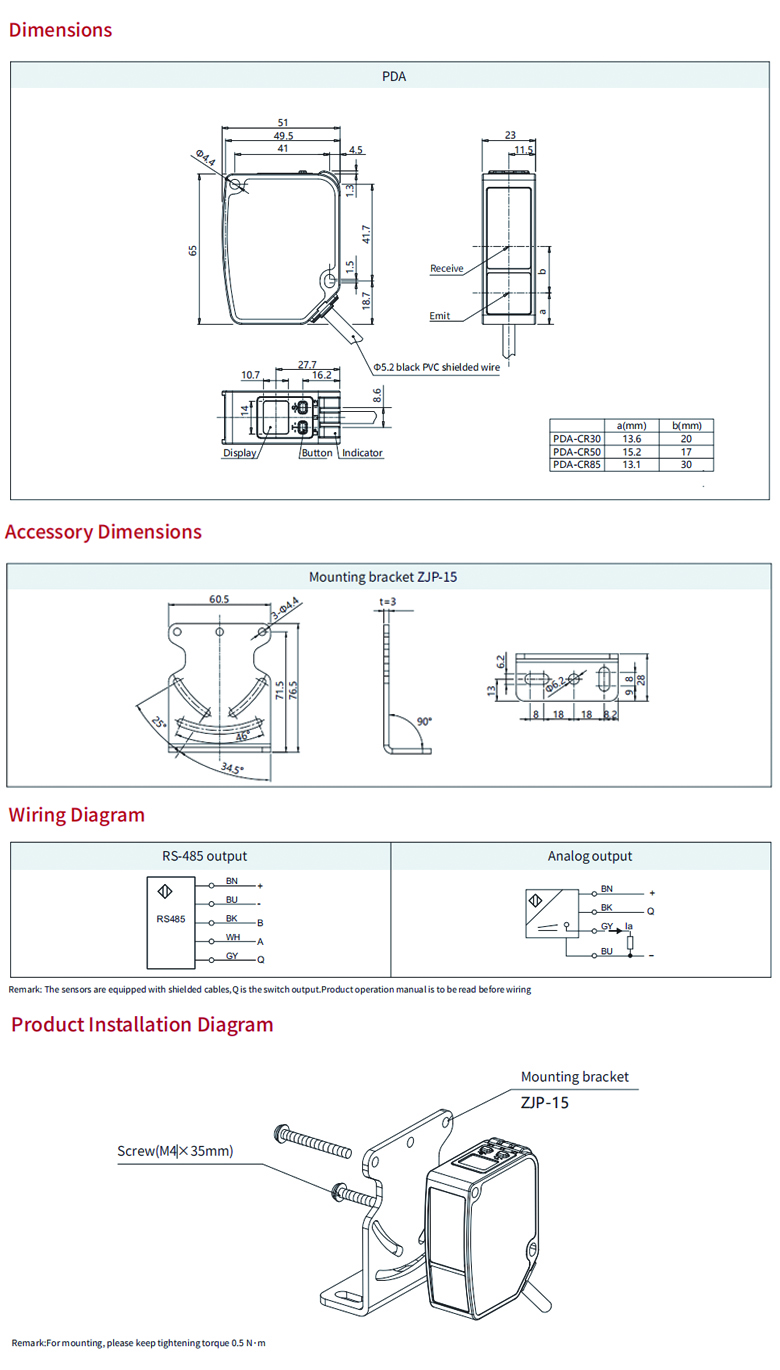

| Dimension | 65*51*23mm |
Display | OLED Display(size:14*10.7mm) |
Temperature drift | ±0.04%F.S./℃ |
Indicator | Power indicator:Green LED;Action indicator:Yellow LED |
Alarm indicator:Yellow LED | |
Protection circuit D | Short circuit,reverse polarity,overload protection |
Built-in function E | Slave address & Port rate setting;Zero set;Product self-check;Output setting |
Analog map settings;Parameter query;Single point teach | |
Window teach;Restore factory settings | |
Service environment | Operation temperature:-10…+50℃ |
Storage temperature:-20…+70℃ | |
Ambient temperature:35...85%RH(No condensation) | |
Anti ambient light | Incandescent light:<3,000lux |
Protection degree | IP67 |
Material | Housing:Aluminum;Lens cover:PMMA ;Display panel: PC |
Vibration resistance | 10...55Hz Double amplitude1mm,2H each in X,Y,Z directions |
Impulse resistance | 500m/s²(about 50G)3 times each in X,Y,Z directions |
Connection way | RS-485:2m 5pins PVC cable;4...20mA:2m 4pins PVC cable |
Accessory | Screw(M4×35mm)×2,Nut×2, Washer×2,Mounting bracket,Operation manual |
Remark:
A Test conditions:Standard data at 23 ± 5 ℃ ;Supply voltage 24VDC;30 minutes' warmup before test;Sampling period 2ms;
Average sampling times 100;Standard sensing object 90% white card
B The statistical data follows the 3σ criteria
C Repeat accuracy:23 ± 5 ℃ environment,90% reflectivity white card,100 test data results
D Slave address,baud rate setting only for RS-485 series
E Protecion circuit only for switch output
F Product operation steps and precautions in "Operation manual"
Dimension unit:mm
