Overview

Essential details

• Model Number:

• PDA-CR50DGR

• Place of Origin:

• Shanghai, China

• Brand Name:

• LANBAO

• Usage:

• Mearsuring Sensor

• Theory:

• Laser Sensor

• Output:

• Digital Sensor

• Brand:

• PDA laser ranging sensor, Lanbao

• Amplifier Type:

• Optical

• Voltage - Supply:

• 10...30 VDC

• Output Type:

• Push-pull output + RS485

• Operating Temperature:

• -10℃...50℃

• Mounting Type:

• 2m PVC (5pins)

• Resolution (Bits):

• 3μm (at 35mm); 12μm (at 65mm)

• Features:

• Flatness measuring

• Current - Supply (Max):

• <200mA

• Package / Case:

• Al 6061

• Output Configuration:

• Push-pull output + RS485

• Humidity Range:

• 35 ... 85% (no condensation)

• Size:

• Photoelectric sensors

• Size / Dimension:

• 65*51*23mm

• Measuring Range:

• 50mm ± 15mm

• Interface:

• 5-wire

• Technology:

• Optical

• Sensing Range:

• 50mm ± 15mm

• Voltage - Max:

• 30V

• Application:

• Suitable for various industrial occasions

• Name:

• Switching Transducer

• Type:

• Displacement Sensor

• product name:

• Laser sensor

• Warranty:

• 1 Year

• Rated distance:

• 500mm(adjustable)

• Supply voltage:

• 10-30VDC

• Degree of protection:

• IP67

• Operating temperature:

• -10℃...50℃

• Material:

• Al 6061

Supply Ability

• Supply Ability

• 5000 Piece/Pieces per Week

Packaging & delivery

• Packaging Details

Pda Distance Sensor Measuring Ranging Transducer And Pda Laser Ranging Sensor
Standards packing by carton

• Port

Shanghai Guangzhou Ningbo Hangzhou

• Picture Example:

•



• Lead time:

• Quantity(pieces)	1 - 1000	>1000
  Lead time (days)	15	To be negotiated

Video Description

00:00

00:57

Product Features

PDA Distance Sensor Measuring Ranging Transducer and PDA laser ranging sensor

Product Features

Before-sales Services

1.24-hours online service;is available here. once you have any questions, just contact us and our professional staff

will reply very quickly. Email, Skype, Whatsapp or online Message are acceptable;

2.Market information;also will be provided. Since we are an experienced manufacturer of sensor, the market information

about sensors will be offered as long as you need.

On-purchase Services:

1.The information of sensors that we provided is fully presented including product details, pictures, delivery and so on;

2.All your problems or worries will be solved quickly by our sales. It is worth noting that the;prices of our; sensors;are

quite;negotiable. We have large discount for big quantity;

After-sales Services

1. The;warranty periodis 12 months.;

2. If we send the;wrong parts;to you, free replacement will be available.

3. As for the;installation of the parts, if you have any questions, do not hesitate to contact us at any time.

Specifications

Part number

Technical specifications

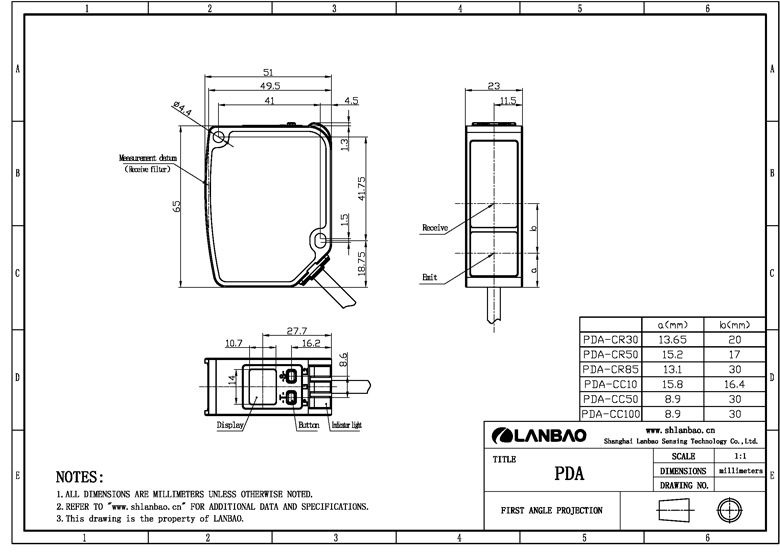

Dimension                                                                                                                                               unit:mm
