Home > Sell > mcb circuit breaker DC mcb mini circuit breaker 2p 32 amp mcb 1P 2P 3P 4P
mcb circuit breaker DC mcb mini circuit breaker 2p 32 amp mcb 1P 2P 3P 4P
Hits: 530
Price: 0.85Dolla/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Expiry: Long-term
Update date 2022-11-11 16:38

Detail

Overview

Essential details

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • CNCSGK

  • Model Number:

  • DZ47-63

  • Breaking Capacity:

  • other

  • Rated Voltage:

  • 12-100V

  • Rated Current:

  • 6000A

  • BCD Curve:

  • bcd

  • Type:

  • MCB

  • Rated Frequency (Hz):

  • 50/60HZ

  • Number of Pole:

  • 2

  • Protection:

  • Other

  • Product name:

  • Small DC Circuit Breaker

  • Brand:

  • CNCSGK

  • Material:

  • Silver Contact

  • Color:

  • customized

  • Shape:

  • small

  • Pole:

  • 1p,2p,3p,4p

  • MOQ:

  • 1pcs

  • Certificate:

  • Certificate

  • Keyword:

  • MCB

  • Warranty/guarantee:

  • 2YEAR

Packaging & delivery

  • Selling Units:

  • Single item

  • Single package size:

  • 8X8X2 cm

  • Single gross weight:

  • 0.086 kg

  • Package Type:

  • 1P MCB 180pcs/ctn OR 120pcs/ctn
2P MCB 900pcs/ctn OR 60pcs/ctn
3P MCB 60pcs/ctn OR 40pcs/ctn
4P MCB 45pcs/ctn OR 30pcs/ctn
Carton Size 0.028cbm
G.W./N.W.: 15.5/14.5kgs

  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(pieces)1 - 5051 - 500>500
    Lead time (days)715To be negotiated

online Customization

Click the image below to start online customization for the design you want.

Customise Now

Video Description

00:00

00:45

C45N (DZ47-63) is applicable to AC 50Hz/60Hz, 230V single pole, 400V double, three and four pole lines for overload and short circuit protection, with rated current up to 63A. It can also be used for infrequent line switching under normal conditions. The circuit breaker is applicable to the lighting distribution system of industrial enterprises, commercial areas, high-rise buildings and residential buildings. Conform to IEC60898 standard.

Specifications

DZ47-63DC Series Circuit Breaker

DZ47-63DC

frame Degree Rated Current (A)

63A

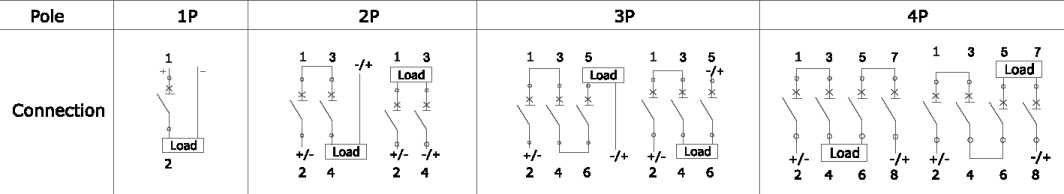

Pole

IP, 2P, 3R 4P

Rated Operating Voltage (VDC)

lP250\42P500\43P750\44P1000V

Rated Current In (A)

1,2,3,4,6,10,16,20,25,32,40,50,63

Rated Insulation Voltage Ui (VDC)

1200VDC

Rated Impact Voltage Uimp (kV)

4kV

Ultimate Breaking Capacity leu (kA)

4.5kA/6kA

Run Breaking Capacity les (%lcu)

75%

Curve Type

C

Trip Type

Thermal-magnetic

Mechanical Life

Actual Average Value

20000


Standard Value

8500

Electric Life

Actual Average Value

6000


Standard Value

2500

Condition and Installation

Wiring Capacity (mm2)

32A, 1~25 mm2J^40A, 10~35mm2

Ambient Temperature (*C)

-20-+70

Altitude

^2000

Relative Humidity

W95%

Pollution Level

3

Installation Environment

No obvious shock and vibration

Installation Category

Class III

Installation

DIN Standard rail

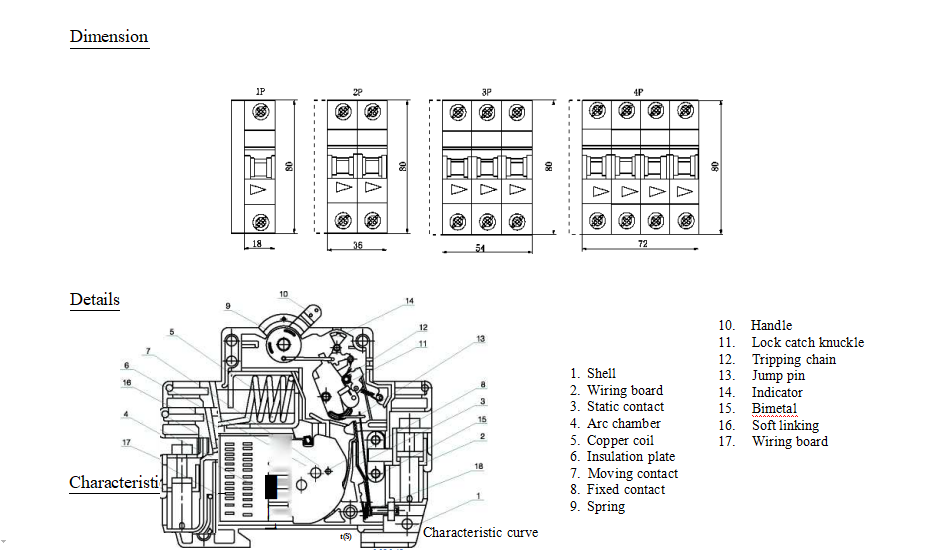

Dimensions(W)x(H)x(Deep)

W

18

36

54

72


H

80

80

80

80


Deep

71

71

71

71

Weight (kg)

0.12

0.24

0.36

0.48
