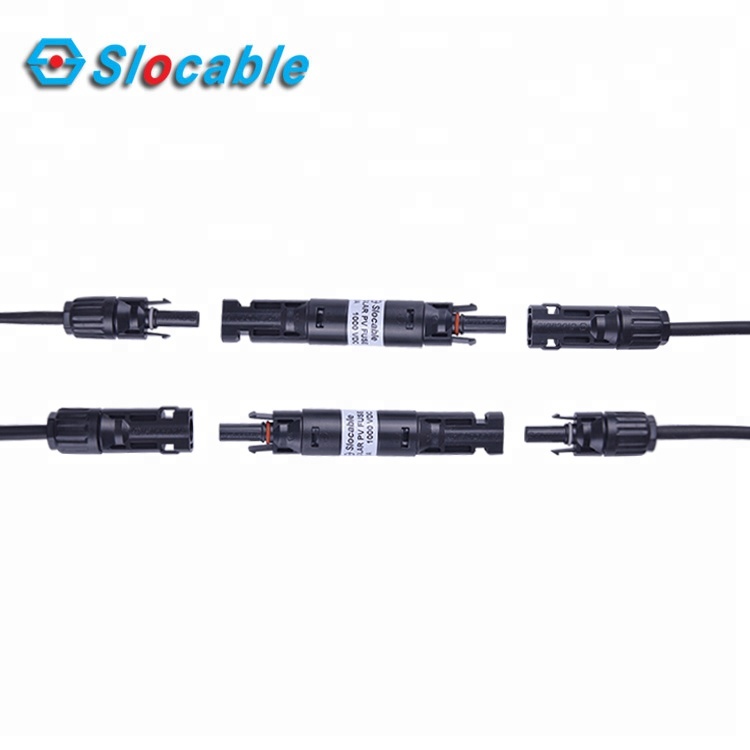

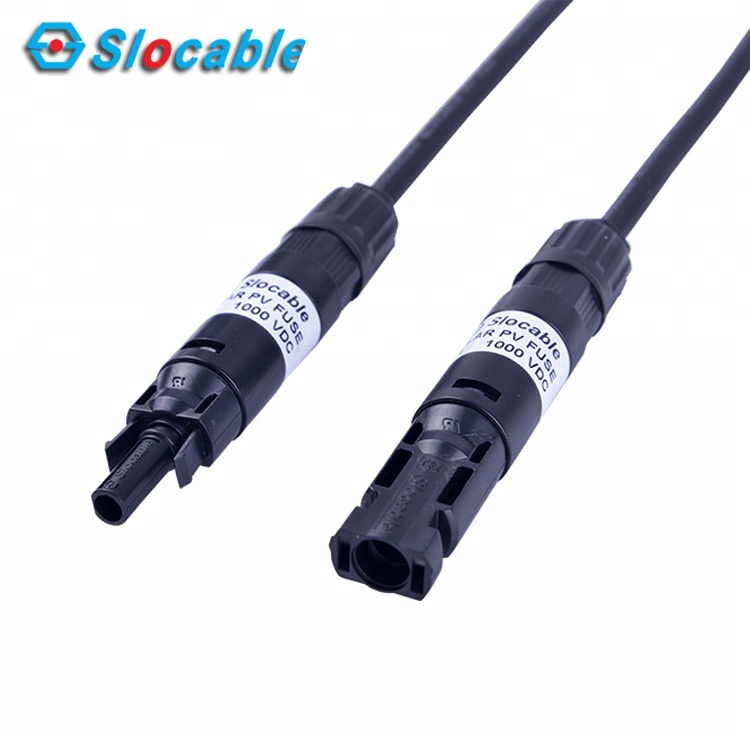

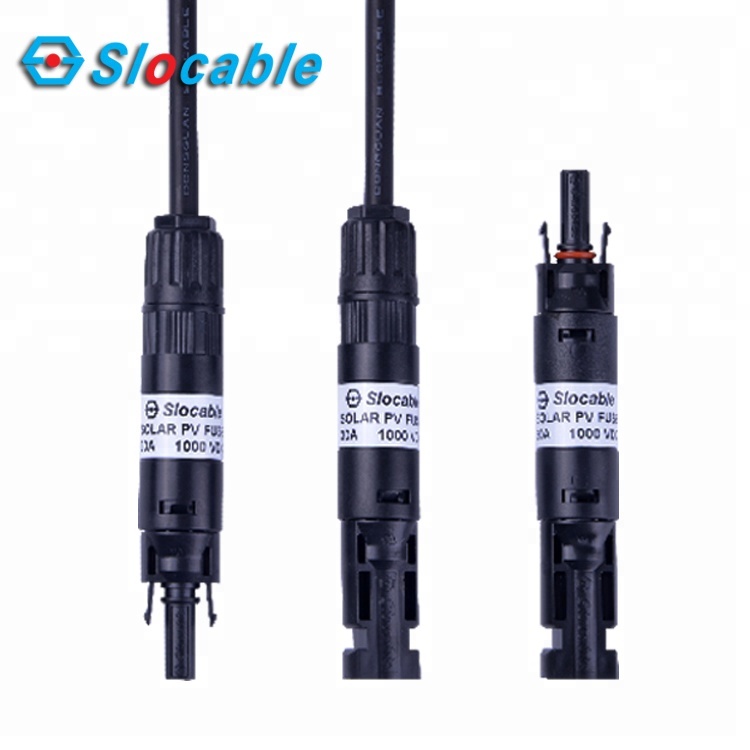

Slocable Hot Sale Solar Inline TUV CE Certified 1000V PPO PV Fuse Holder
Product Description
Product Advantages:
IP68 Waterproof: the highest water and dust proof standard and not afraid of the rain or drip, can work under the 15m water in laboratory.
SABIC PPO housing: PPO housing and thick tinned copper terminal, ensure an reliable products lower the 0.5mΩ resistance and UL94-V0 flame resistance.

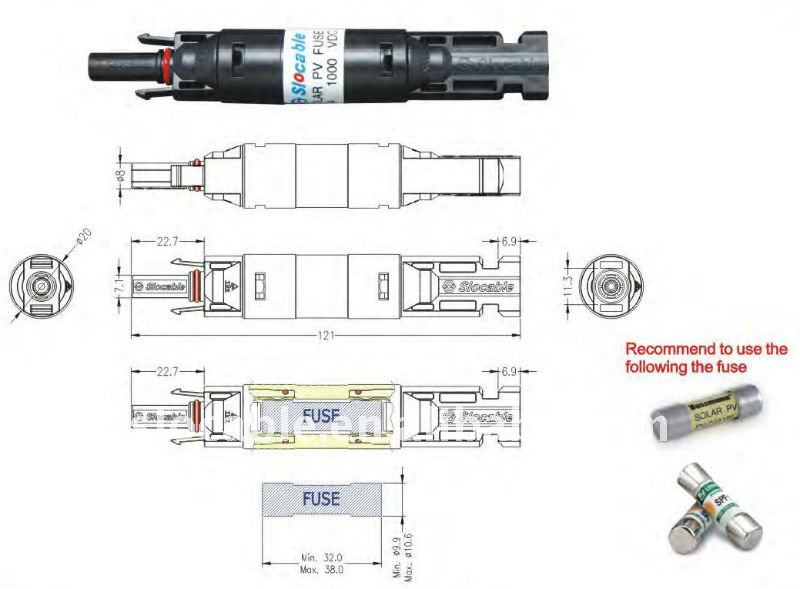

Replaceable Fuse: accommodate different fuses in size 10*38mm, easy to replace if broken.
Quality Reliability: 13 Years manufacturing experience, factory outlet,TUV, CE and ISO certificates approve 25 years working time.
Compatible with PV cable in different insulation diameters and almost all solar pv connectors, multiple plugging and unplugging cycles.
Unique housing:slocable self design and patent.
Technical Data
Suitable cable | 2.5/4.0/6.0/10.0mm²,14/12/10/8AWG |
Rated voltage | 1000V DC |
Rated current | MAX.30A(2~30A) |
Test voltage | 8kV(50Hz,1min) |
Insulation materrial | PPO |
Contact resistance | <0.5mΩ |
Contact material | Copper,Tin plated |
Degree of protection | IP68 |
Safety class | Ⅱ |
Overvoltage category | CATⅢ/2 |
Flame class | UL94-V0 |
Insertion force/ Withdrawal force | ≤50N / ≥50N |
Ambient temperature range | -40℃~+85℃(IEC) |
