Slocable 2022 New Arrival M20 3P Waterproof Male Female Electric Power Connector
Product Description
Features of M20 wire connector
Compact dimensions, more pleasing in form
Screw connection for easy field installation
IP67 level protection of enclosure
Choose the best plastic material; ensure the product performance and using life
UV resistant – suitable for indoor and outdoor mounting
Product quality is stable and reliable, suitable for outdoor applications
Suitable for one-phase inverters, for cables with a diameter of 5.5 – 11 mm
CE, RoHS certificate
Mold making and inject molding
Flame retardant, heart resistance, abrasion and aging resistance
Technical data:
Technical data:
Insulation material: | PA66 | Rated current: | 25A |
Insulation voltage: | 3750VDC | Rated voltage: | 600V AC/DC |
| Contact resistance: | ≤200mΩ | Degree of protection: | IP67 waterproof |
| Overvoltage category: | CATIII/2 | Flame class: | UL94-V0 |
Safety class: | II | Contact material: | Copper, gold plated |
| Temperature range: | -40℃ ~ +105℃ | Wire diameter range: | 5.5~11mm |
| Pin numbers: | 2P/3P/4P | Operating cycles: | 2000 |

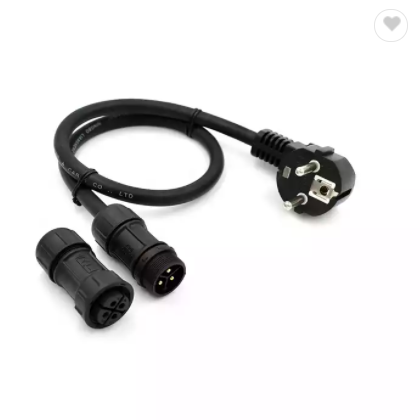

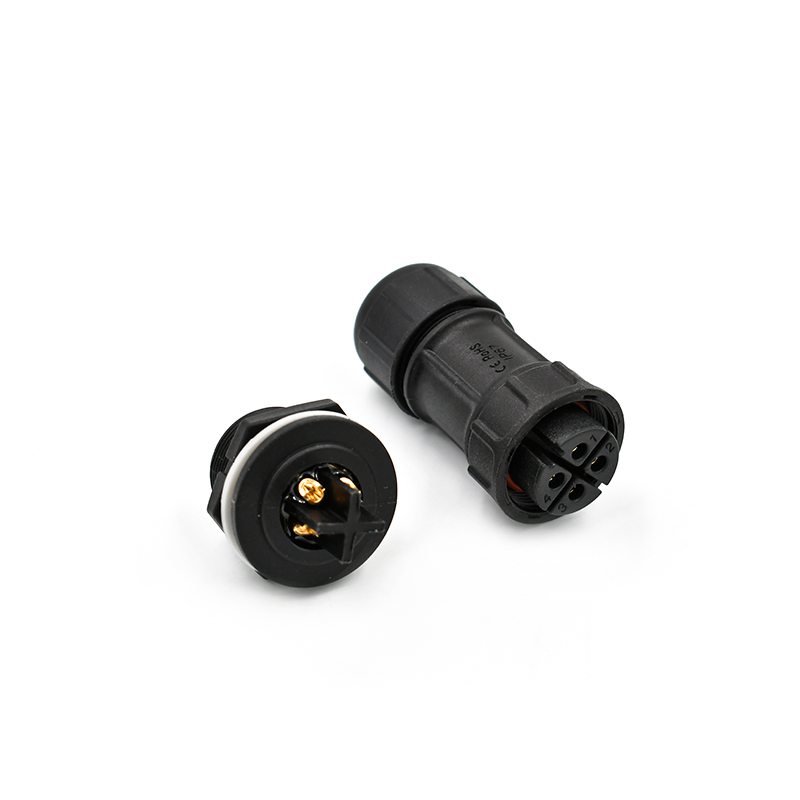

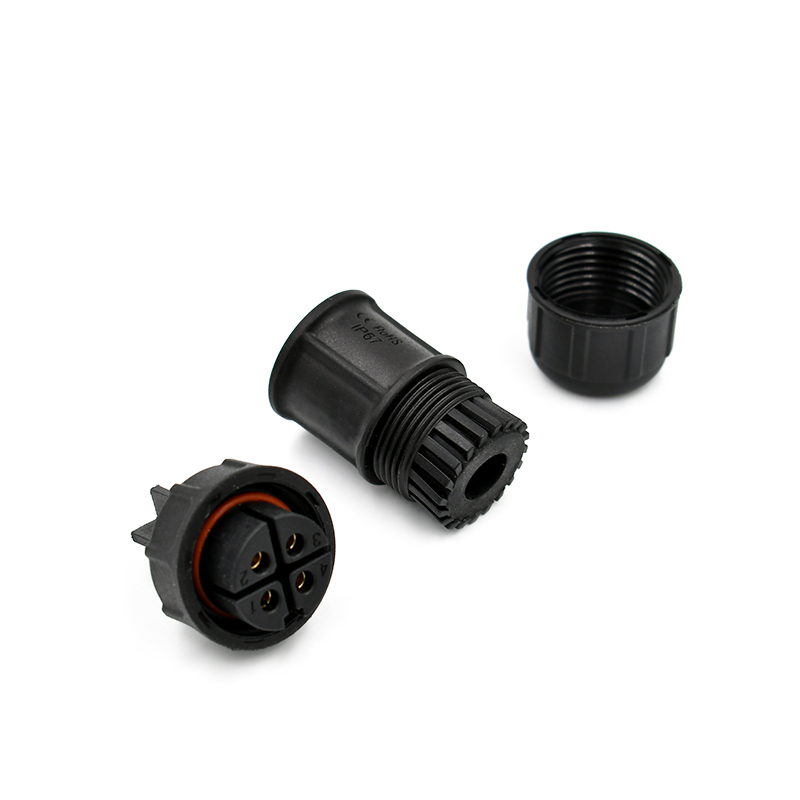

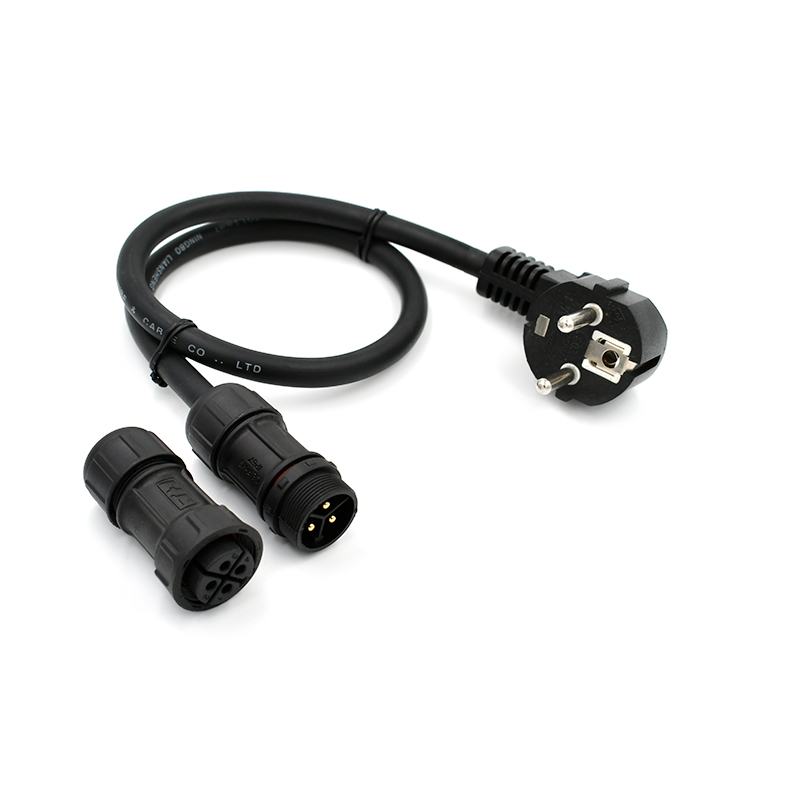

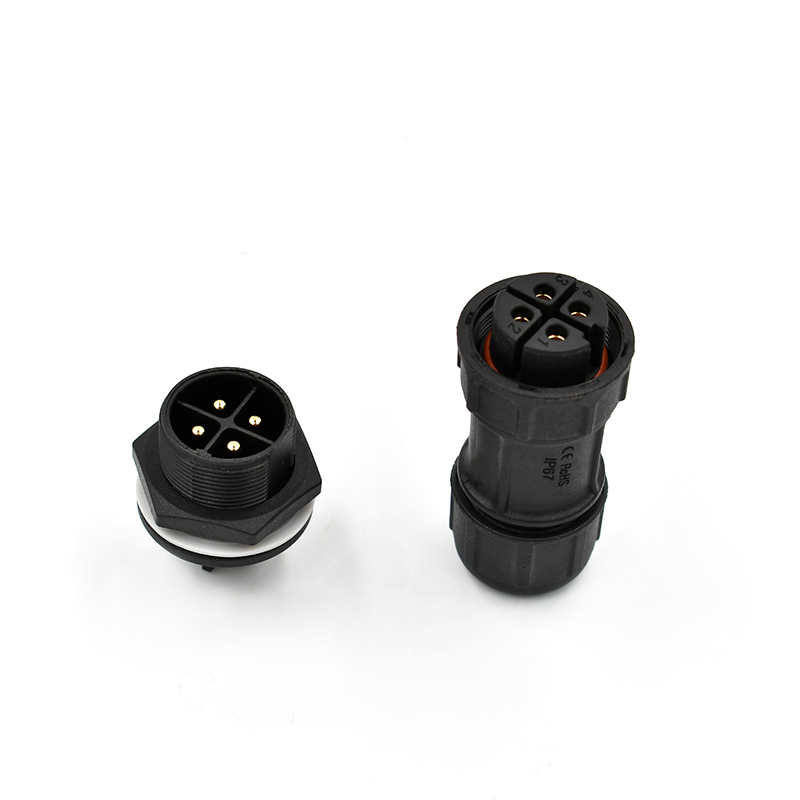

Product Pictures:
Product Pictures:

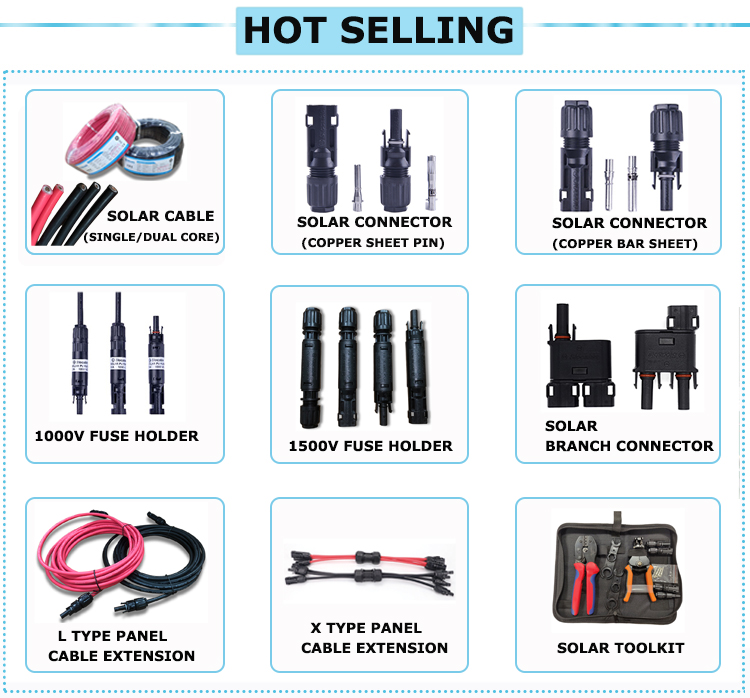

We also have solar cable, PV connector, branch connector, fuse holders, pv tools, etc.
Welcome to inquire ↓↓↓
