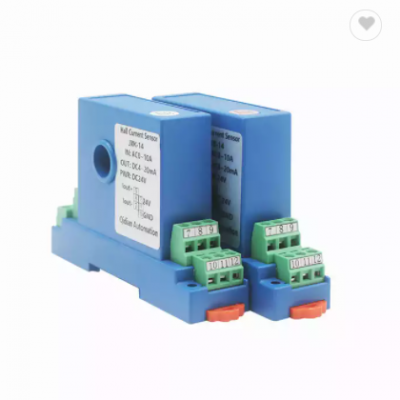

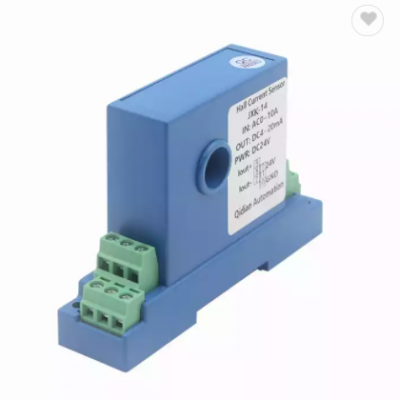

JXK14 open loop hall effect current sensor with ce high accuracy current transducer 0-10v
Introduction
<1>Working principle: open loop direct measurement.
<2>Product uses: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>Product advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<4>Product application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.Full channel configuration,Parameter customizable.
Technical Parameter
| Input | |
| Original Side Rated Input current | 10A;20A;50A;100A; 200A;customization |
| Original Side Measurement Range | 20A-300A |
| Output | |
| Rated Output | 55V;10V;DC4-20mA;0-20mA |
| Other Parameters | |
| Installation | The standard rail +Plane screw fixation |
| Auxiliary Power Supply | ±12V;±15V;DC12V;DC24V |
| Load Capacity | 5mA |
| Linearity | 0.5% |
| Accuracy | 1% F.S. |
| Overload Capacity | Double nominal input, sustainable |
| Response time | <200ms |
| Temperature drift | ≤500PPM/℃ |
| Band Width | DC~20KHz |
| Consumption of Current | ≤25mA |
| Insulation resistance | ≥100MΩ (among input-ouput-power) |
| Working Temperature | -10℃~+70℃ |
| Storage Temperature | -25℃~+85℃ |
| Isolation Pressure Resistance | 2.5kV/50Hz,1Min |
| Offset Voltage | ≤20Mv |
