Product Description
<1>. Pessure transmitter has been specially designed to cover the majority of industrial applications where need high accuracy measurement.
<2>. QDX50 pressure transmitter is made of stainless steel, the pressure sensing elements are selected from good suppliers. Special circuits are adopted to asjust zero and full range conveniently.
<3>. This pressure transducer has been approved with CE,FCC,ROHS,ISO certificates, and explosion-proof certificate.
<4>. Customized structure and outputs formats can be designed according to special application requirement, in addition to standard products.
Technical Parameters
| Measure media | Gas, water, oil or other media can be compated with stainless |
| Pressuretype | Gauge; Absolute; Negative, Sealed gauge pressure |
| Pressure range | -0.1~0~100Mpa |
Power supply | DC12~36V (DC24V) |
Output signal | 4~20mA,1~5V,0~5V,0~10V,RS485,etc |
Accuracy | 0.5% F.S(Default); 0.2% F.S |
Response time | ≤8mS |
Overload pressure | 200% F.S. |
Ambient temperature | -40~85℃ |
Compensation temperature | -10~70℃ |
Protection grade | IP65 |
Long-term stability | Standard: 0.2%F.S±0.05% |
Zero temperature drift | 0.03%FS/°C(≤100kPa), 0.02%FS/°C(>100kPa) |
FS temperature drift | 0.003%FS/°C(≤100kPa), 0.002%FS/°C(>100kPa) |
Natural frequency | 5KHz~650KHz |

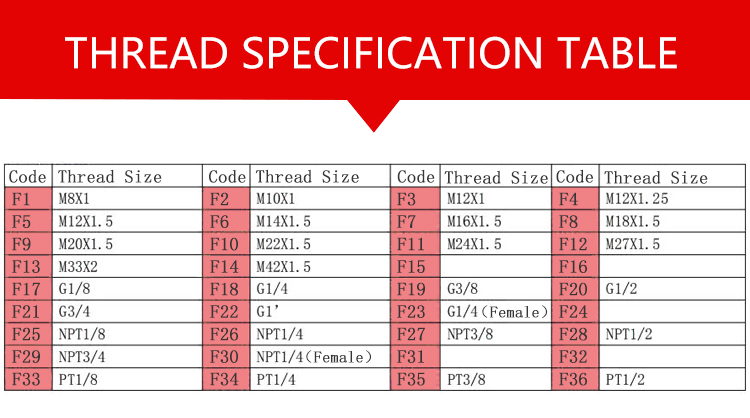

| Thread size | M20*1.5(Default), Customization |

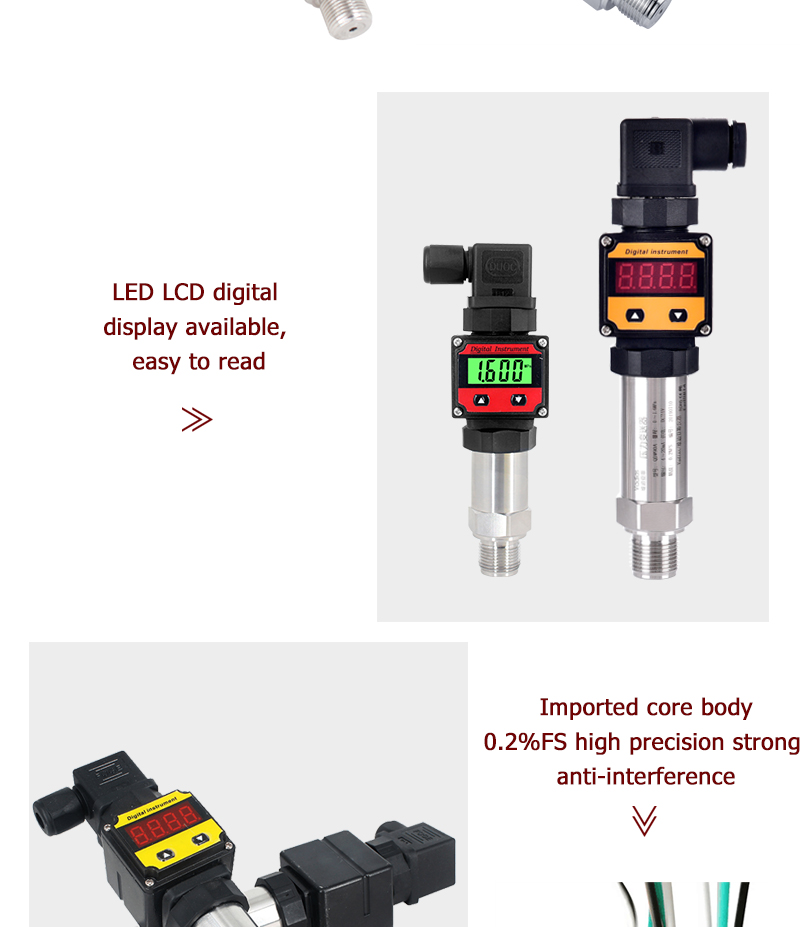

Selling Points

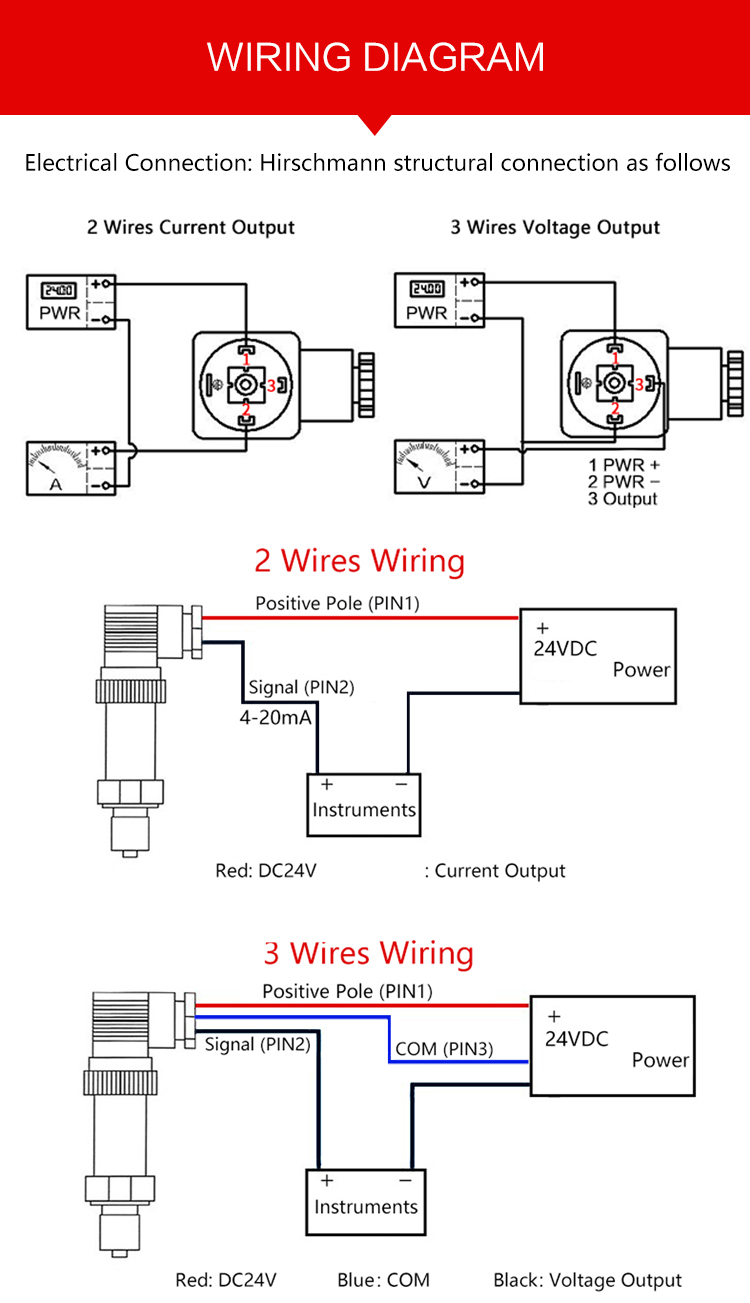

Wiring Diagram

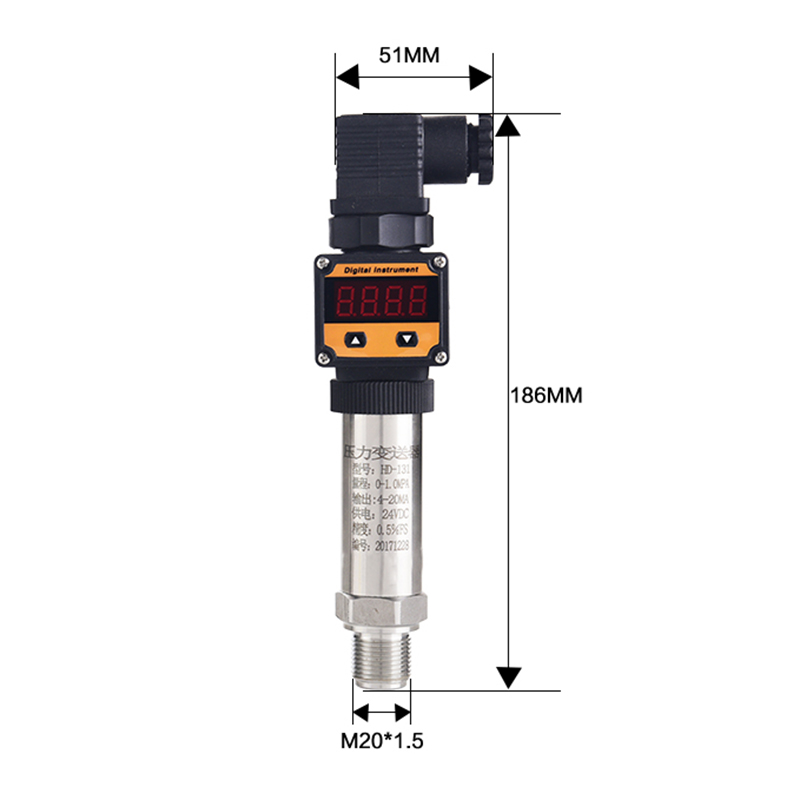

Product Dimension

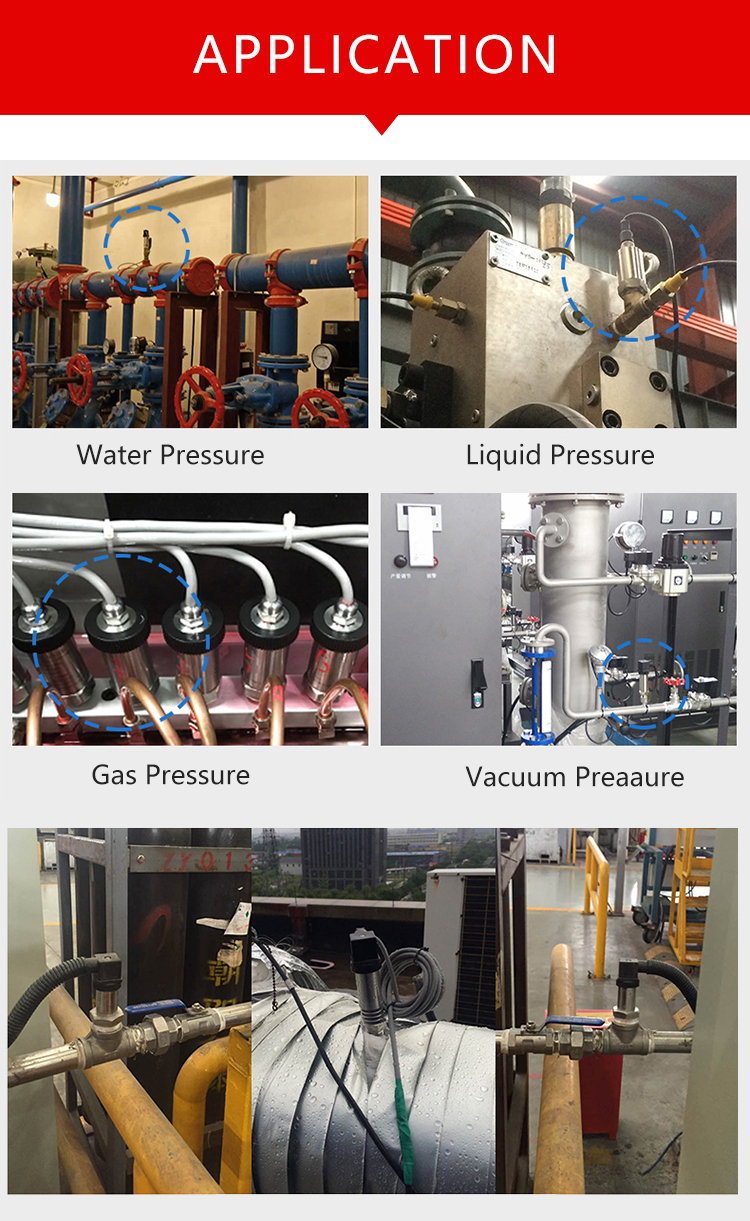

Product Application
Certifications
