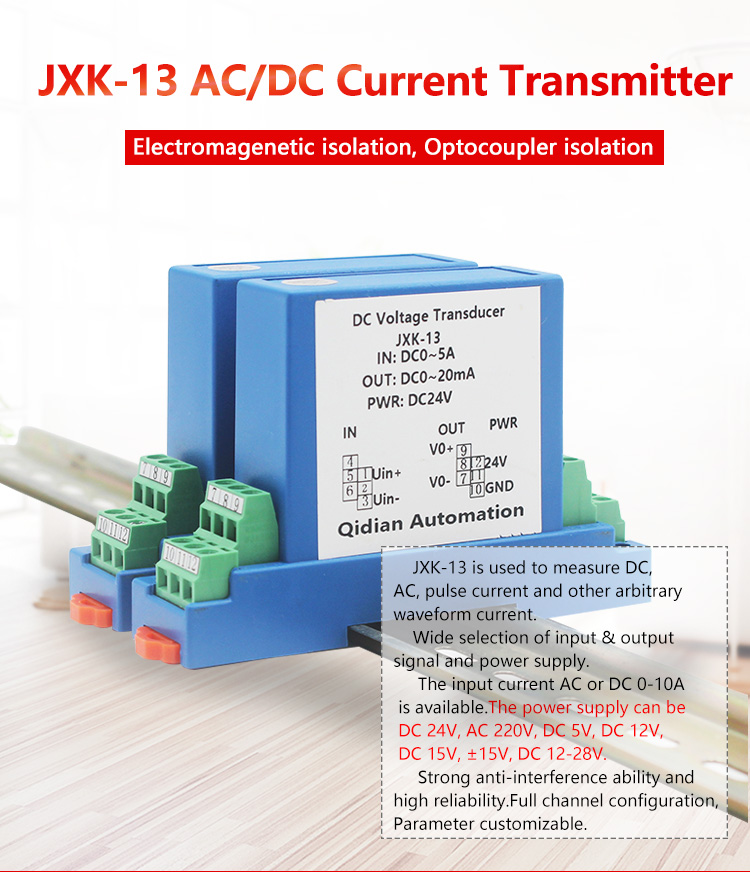

BriefIntroduction
<1>. Working Principle: new electromagnetic isolation
<2>. Usage: It is used to measure AC current, especially used to measure frequency 50Hz sine wave AC current.
<3>. Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<4>. Application: A place widely used for measuring AC current.
<5>. imported components, high integration.The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
<6>. Full channel configuration,Parameter customizable.
Technical Parameters
| Installation | Standard rail + Plane screw fixation |
Input signal | 5mA, 100mA, 1A, 5A, 8A, 10A, Customizable |
| Output signal | 4-20mA, 0-10mA, 0-5V, 0-10V, Customizable |
| Power supply | DC12V, DC15V, DC24V,AC220V |
Load capacity | Voltage output:5mA Current output:6V |
| Linearity | 0.5% |
| Accuracy | 0.5%FS |
| Overload capacity | Double nominal input,sustainable |
| Temperature drift | ≤500PPM/℃ |
| Band width | DC |
| Consumption of current | <25mA+output current |
| Working temperature | -10℃~+70℃ |
| Storage temperature | -25℃~+85℃ |
| Response time | Photoelectric isolation <15us; Modulation type <150ms |
| Isolation withstand voltage | 3kV/50Hz,1Min |
| Offset voltage | ≤10mV |

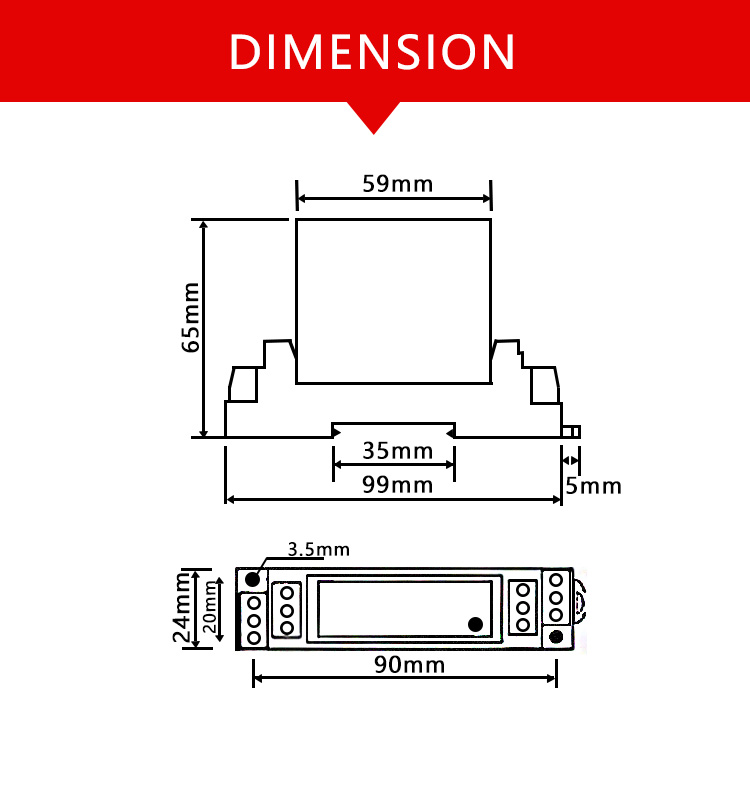

Dimension of Current Transducer

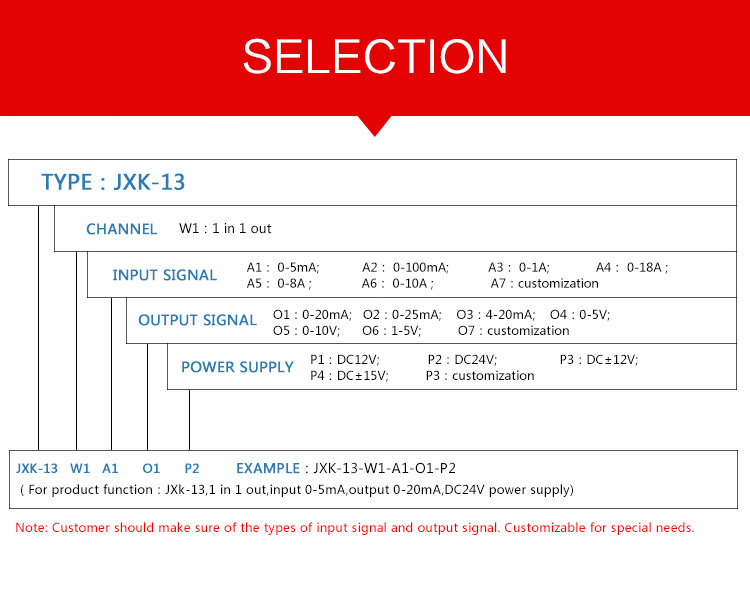

Selection of Current Transducer

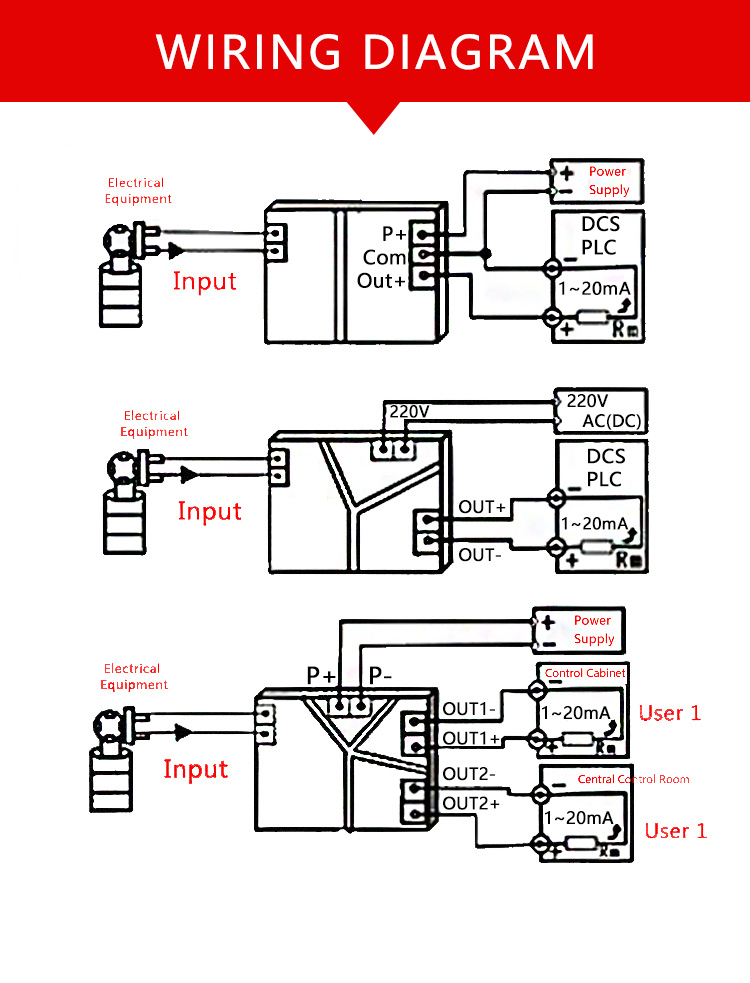

Wiring of Current Transducer
Certificates of Current Transducer
