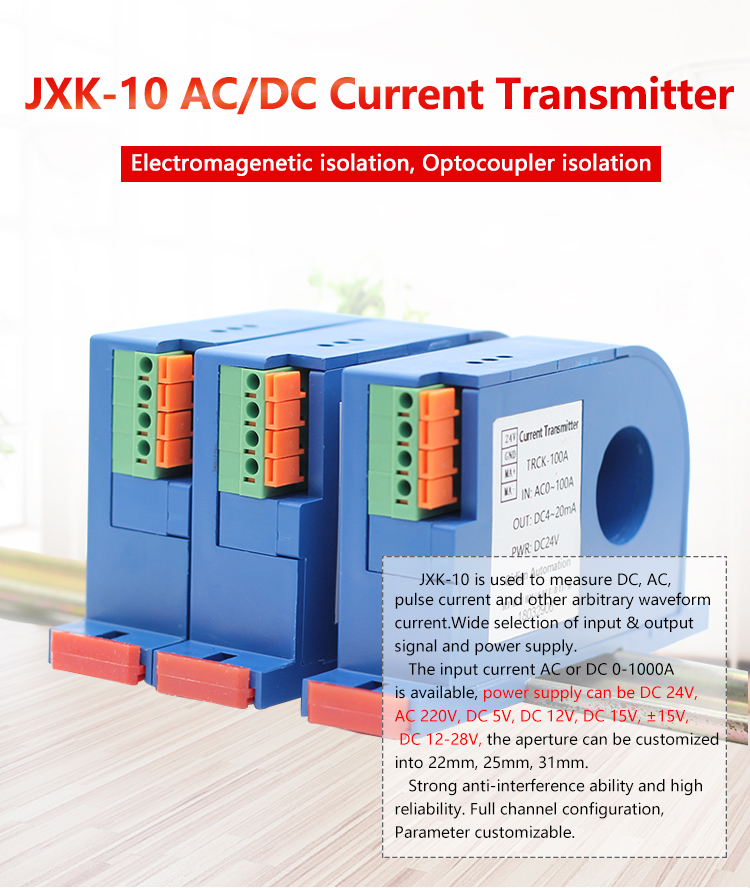

Product Description
<1>. Working Principle: open loop direct measurement.
<2>. Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<3>. Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
<4>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
<5>. Full channel configuration,Parameter customizable.
Technical Parameters
| Technical Parameter | |
| Installation | Plane screw fixation |
Original Side rated current | 100A;200A;500A;800A;1000A;Customized |
Original Side Measuring Range | 100A~1200A |
Rated Output | 0~20mA;4~20mA;0~5V;0~10;Customized |
| Auxiliary Power Supply | DC12V;DC24V;DC15V;AC220V |
| Load Capacity | Voltage Output:5mA; Current Output:6V |
| Temperature Drift | ≤500PPM/℃ |
| Consumption Current | ≤25mA |
| Respond Time | <200ms |
Isolation Voltage Resistance | 2.5kV/50Hz,1Min |
| Quiescent Current | <10mA |
| Action Current | <40mA |
| Frequency Bandwidth | DC~20KHz |
| Offset Voltage | ≤20mvV |
| Zero Point Output | ≤0.15mA |
| Working Temperature | -10℃~+70℃ |
| Storage Temperature | -25℃~+85℃ |

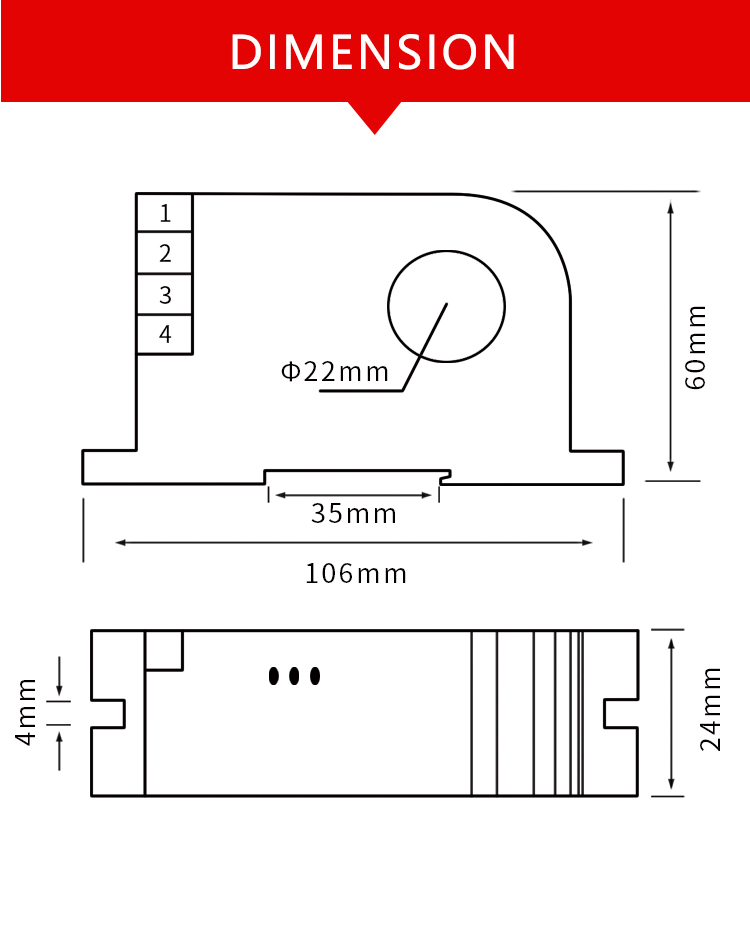

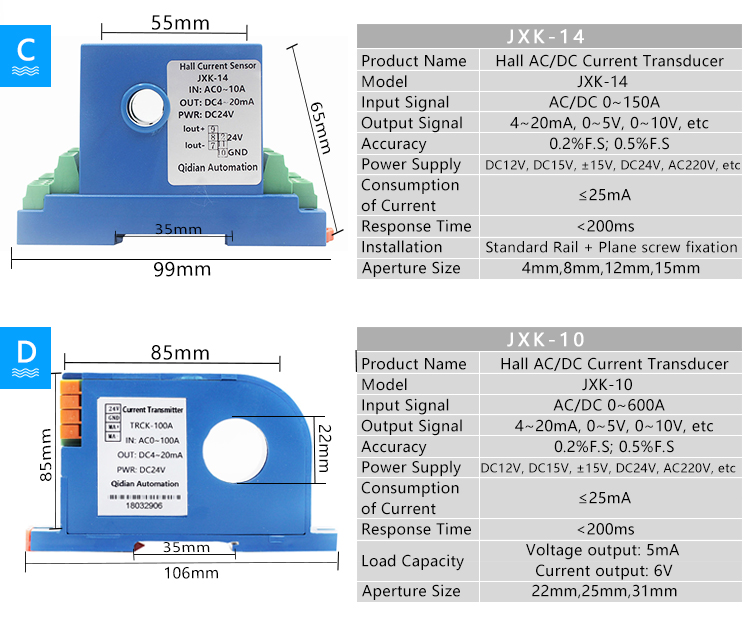

Dimension
Wiring Diagram

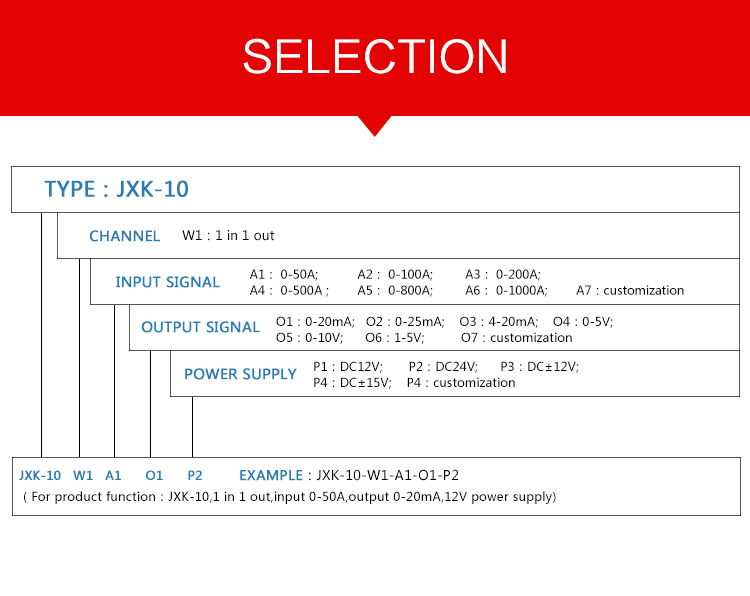

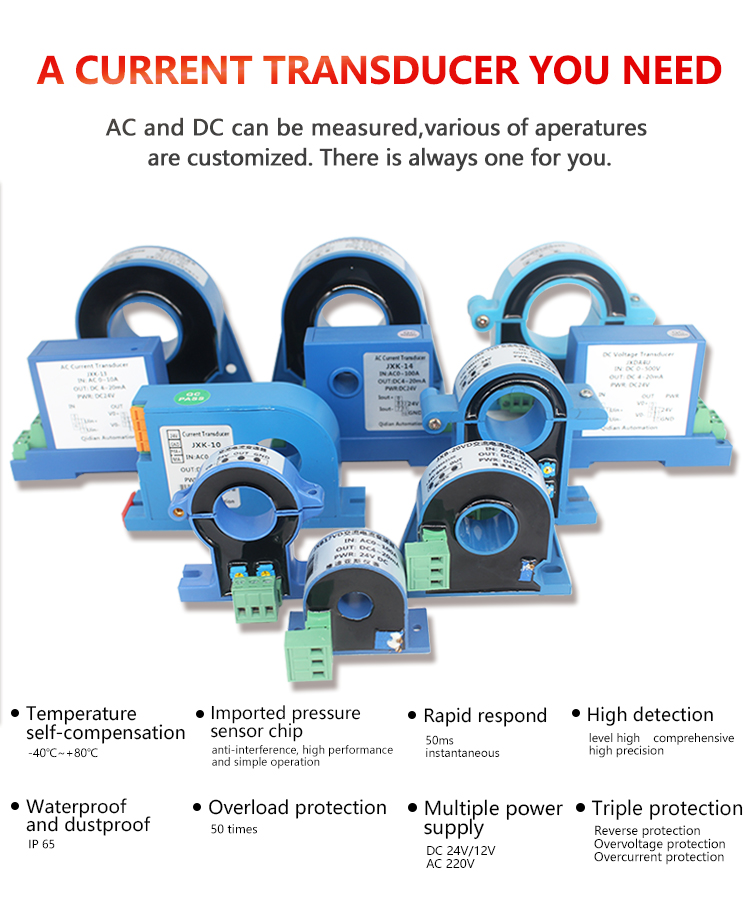

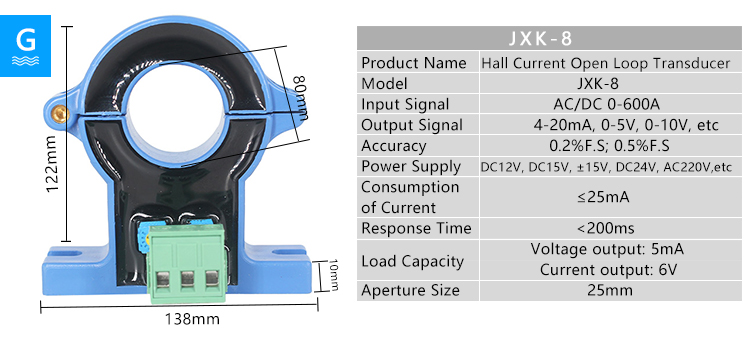

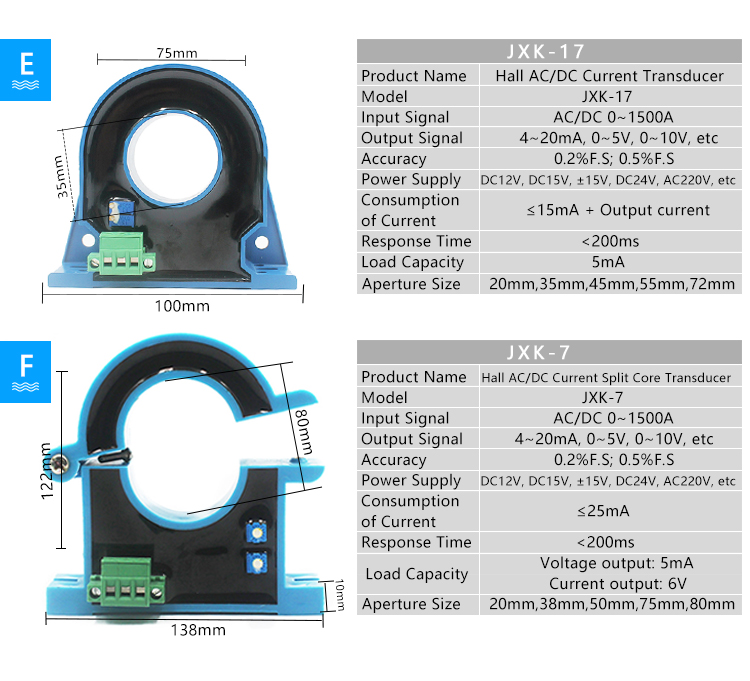

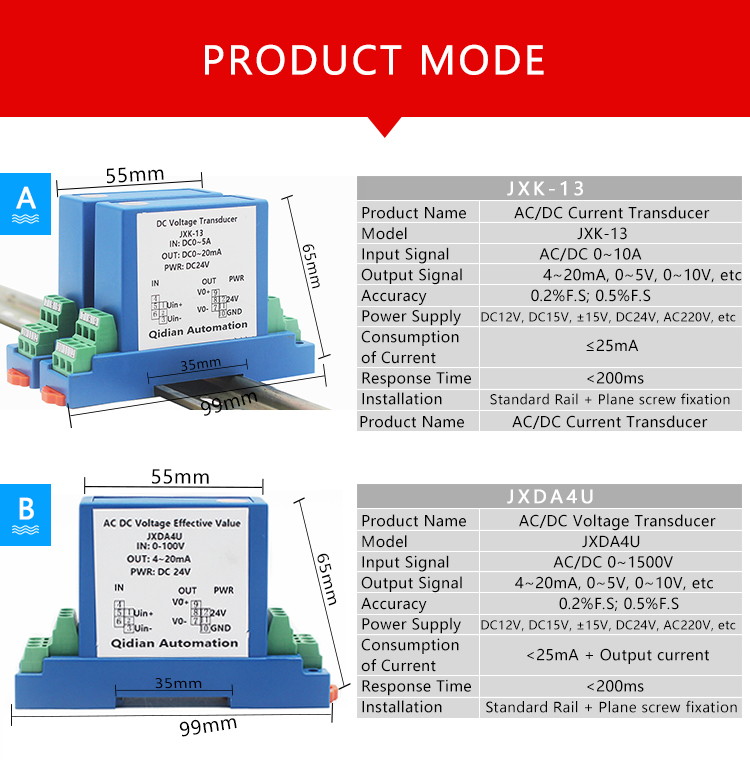

Selection
