Dust-proof Distribution Electrical Transformer Substation Modular Substation Power Transformer Equip

Hits:	900
Price:	5500.00Dolla/Piece
Min quantity:	1 Piece
Quantity:	10000000 Piece
Deliver:	In days
Expiry:	Long-term
Update date	2022-11-11 15:38

Detail

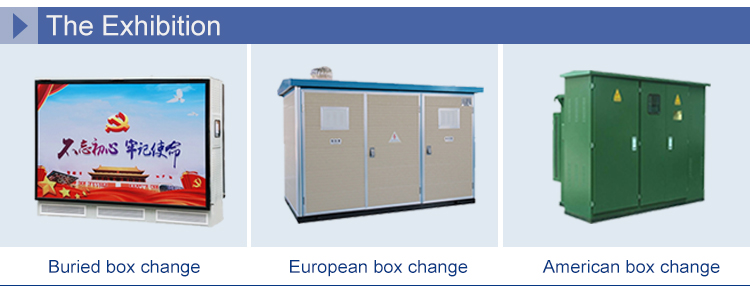

Box-type substation is also called prefabricated substation. It combines high-voltage switchgear, distribution transformers and low-voltage power distribution devices into a single factory prefabricated indoor and outdoor compact power distribution equipment according to a certain wiring scheme, which organically combines functions such as transformer step-down and low-voltage power distribution. Installed in a moisture-proof, rust-proof, dust-proof, rat-proof, fire-proof, anti-theft, heat-insulation, fully-enclosed, and movable steel structure box. Box-type substations are divided into European-style box-type substations, American-type box-type substations, and underground box-type substations.

Products Description

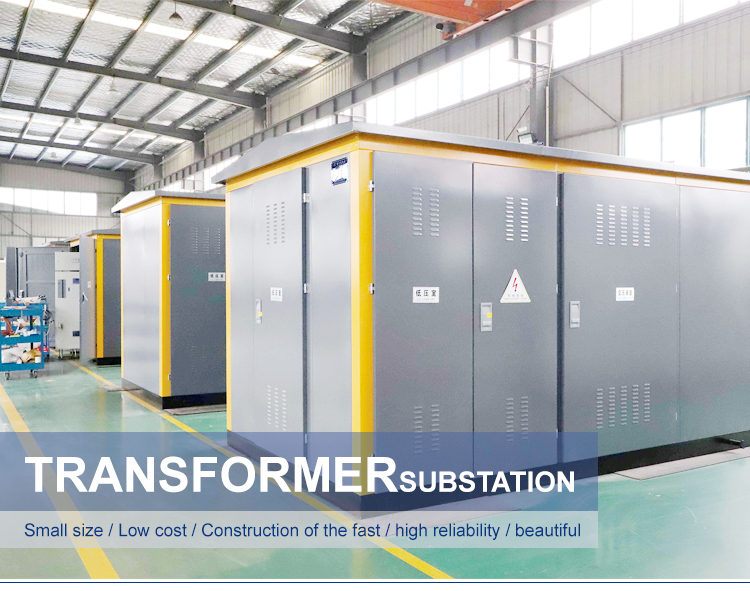

YB Preinstalled Type Transformer Substation (European Style):

European-style box-type substation is also called outdoor complete substation or combined substation. Because it has the advantages of flexible combination, convenient transportation, migration, convenient installation, short construction period, low operating cost, small floor space, pollution-free, and maintenance-free, it has received extensive attention. In rural power grid construction (reconstruction), it is widely used in the construction and transformation of 10-110kV small and medium-sized substations (distribution) substations, factories and mines, and mobile operations in urban and rural areas. Because it is easy to penetrate into the load center, reduce the power supply radius, and improve the quality of the terminal voltage, it is especially suitable for the transformation of rural power grids.

Product Features:

1.Advanced technology, safe and reliable The outer shell is generally made of galvanized steel plate. The frame adopts standard container materials and manufacturing techniques. It has good anti-corrosion performance and guarantees no corrosion for 20 years. and can ensure normal operation in the harsh environment of -40℃～+40℃. 2.High degree of automation The protection system adopts the integrated automatic device of the substation and is installed in a decentralized manner. remote setting of operating parameters, control of humidity and temperature in the box, to meet the requirements of unattended. 3.Factory prefabrication All equipment is installed and qualified in the factory at one time. The entire substation takes about 5-8 days from installation to commissioning. Greatly shorten the construction period. 4.Flexible combination Due to the compact structure of the European-style box change, each box constitutes an independent system, which makes the combination flexible and changeable. 5.Low investment and quick results European-style box substation (35kV equipment outdoor layout, 10kV equipment box installation), compared with the same scale integrated substation (35kV equipment outdoor layout, 10kV equipment layout indoor high-voltage switch room and central control room), reduces investment by 40%-50%. 6.Cover small space. the minimum area of the main transformer box and the switch box can be as small as 100m. It can be installed and put into production by making full use of the center of the street, the square and the corner of the factory, which is in line with the national land saving policy. 7.Beautiful appearance The box shell adopts aluminum-zinc steel plate and container manufacturing technology. The appearance design is beautiful. Under the premise of ensuring the reliability of power supply, by choosing the shell color of the box-type substation, It is especially suitable for urban construction.
