Best price of Bare Hard drown Aluminum 50mm hda conductor HDA 100mm, SCA 50mm
HDA conductor 50mm2: 7/3.1 mm, 6000m/drum,
HDA conductor 100 mm2: 7/4.39 mm, 3000m/drum,
SCA conductor 50mm2: 6+1 /3.35 mm, 5000m/drum,
Product Description
Our company founded in 2008, with own factory, have more business experience.
Ⅰ Applications
The product is widely used in the overhead power distribution system of you country ,and it is one of the main products for forming electrified wire network.
Ⅱ Standards
We could produce the cable according to many standards:ASTM ,BS ,IEC,DIN,
JIS and so on,
We will do our best to meet your requirements. the conductor could with or without grease.

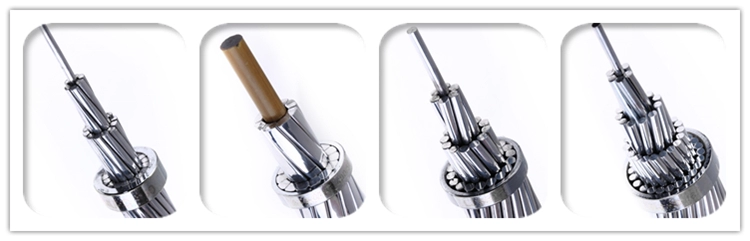

Ⅲ Type
1. AAC : All Aluminum Conductor
2. ACSR:Aluminum Conductor Steel Reinforced
3. AAAC:All Alloy Aluminum Conductor
4. AACSR: Aluminum Alloy Conductor Steel Reinforced
5. ACAR: Aluminum Conductor Alloy Reinforced
6. ACSR/AW:Aluminum Conductor Aluminum Clad Steel Reinforced
HDA aluminum conductor ( AAC )
| Code name | Nominal | Stranding | Wire Diameter | Overall Diameter | Breaking Load | Weight |
| mm2 | No. | mm | mm | kN | kg/km | |
| Midge | 22 | 7 | 2.06 | 6.18 | 3.99 | 64 |
| Ant | 50 | 7 | 3.1 | 9.3 | 8.28 | 145 |
| Fly | 60 | 7 | 3.4 | 10.2 | 9.9 | 175 |
| Wasp | 100 | 7 | 4.39 | 13.17 | 16 | 292 |
| Hornet | 150 | 19 | 3.25 | 16.25 | 25.7 | 434 |
| Chafer | 200 | 19 | 3.78 | 18.90 | 32.4 | 587 |
